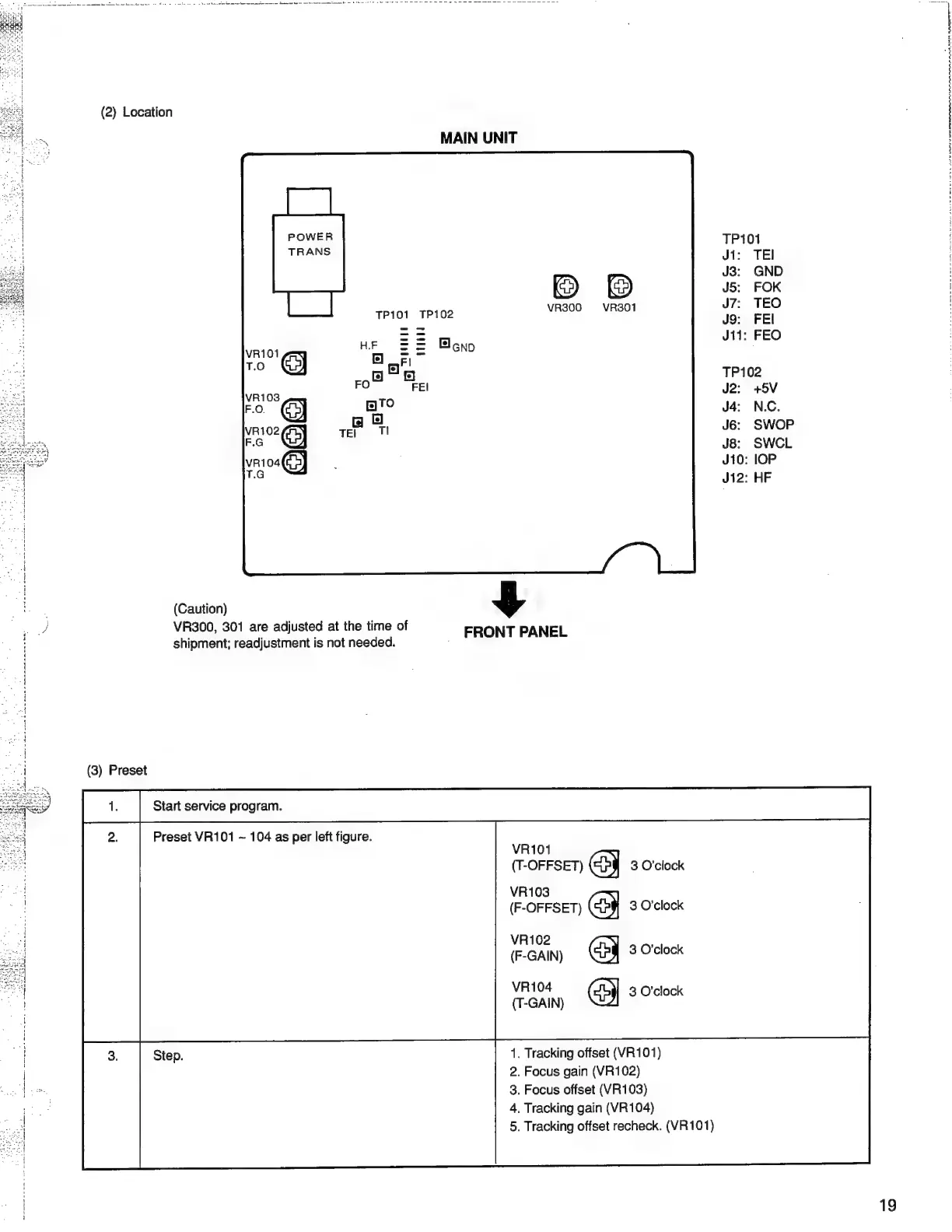

(2) Location
MAIN UNIT
TP101
J1: TEl
J3: GND
1S)
J5:
FOK
VR300 VR301 J7: TEO
TP101 TP102 ‘0. FEI
Jit: FEO
Blenp
TP102
J2: +5V
J4: N.C.
J6: SWOP
J8: SWCL
J10: IOP
J12: HF
(Caution) gy
VR300,
301
are
adjusted
at
the
time
of
FRONT
PANEL
shipment;
readjustment
is
not
needed.
(3) Preset
Start service program.
Preset VR101 ~ 104 as per left figure.
VR101
(T-OFFSET) Cay 3 O'clock
VR103 5)
(F-OFFSET) 3 O'clock
VR102
(F-GAIN) Gy 3 O'clock
VR104 YW 3 O'clock
(T-GAIN) Soe
1. Tracking offset (VR101)
2. Focus gain (VR102)
3. Focus offset (VR103)
4. Tracking gain (VR104)
5. Tracking offset recheck. (VR101)
19
