Denon DCM-360 - CD Mechanism Parts and Exploded View; CD Mechanism Unit Parts List (TCD-77 S); Exploded View of CD Mechanism Unit

© OC M-SCO/ 26 O ASRS NE ET

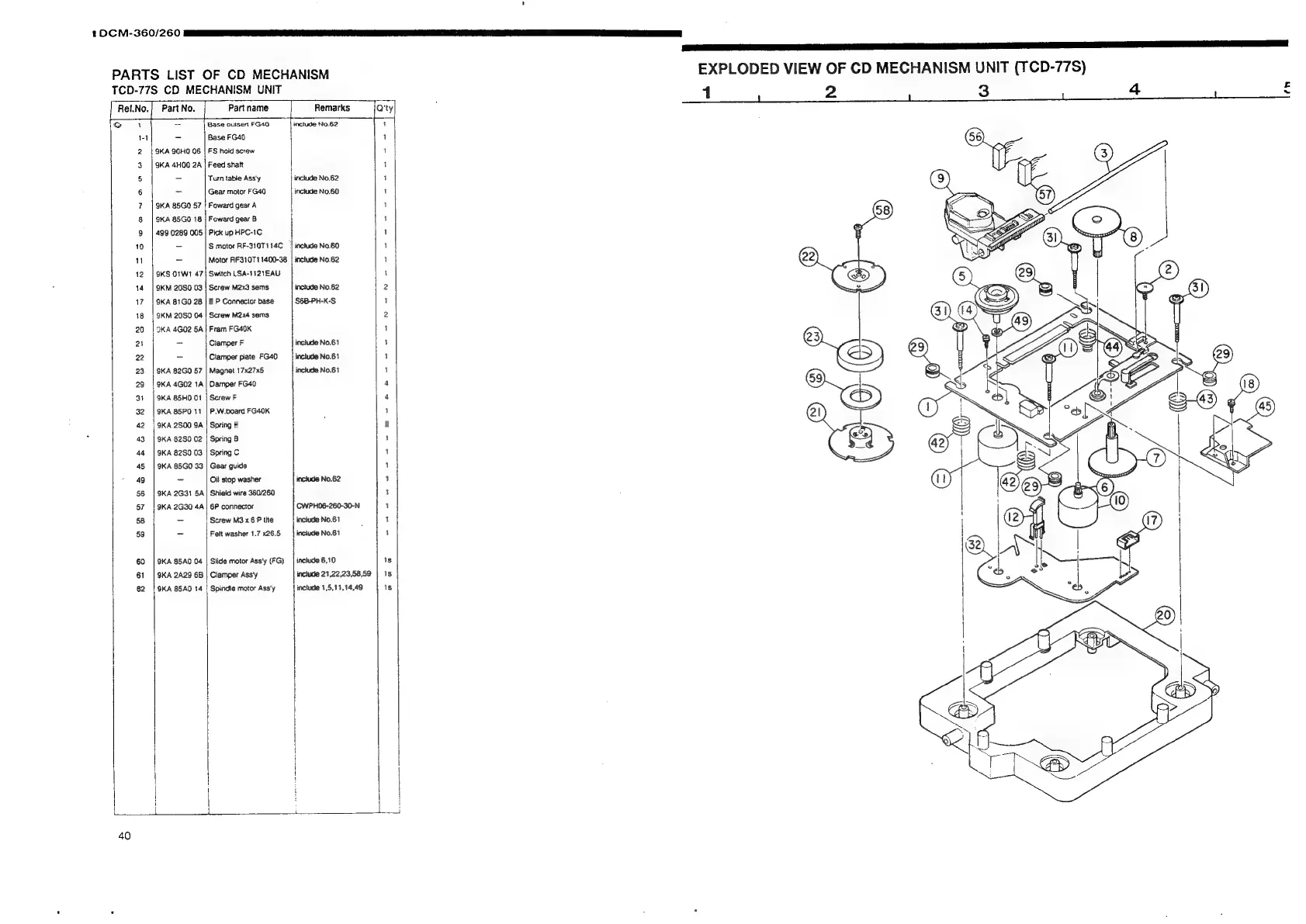

PARTS LIST OF CD MECHANISM
TCD-778 CD MECHANISM UNIT
Ret.No.; PartNo. Part name Remarks ary
o 1 = Base outsert FG40 include No.62 1
11 ra Base FG40 1
2 {| 9KA 90HO 06 | FS hold screw 1
3. | 9KA 4HO0 2A | Feed shatt 1
5 = Turn table Ass'y include No.62 1
6 ae Gear motor FG40 include No.60 1
7 QKA 85G0 57 | Foward gear A 1
8 | 9KA 85G0 18 | Foward gear B 1
9 | 499 0289 005 | Pick up HPC-1C 1
10 = S motor RF-310T114C | include No.60 1
W = Motor RF310T1 1400-38 | include No.62 1
12 | 9KS O1Wt 47] Switch LSA-1121EAU 1
14 | 9KM 20S0 03 | Screw M2x3 sems include No.62 2
17 | SKA 81G0 28 | 6 P Connector base S6B-PH-K-S 1
18 | 9KM 20S0 04 | Screw M2x4 sems 2
20 | 9KA 4G02 5A | Fram FG40K 1
2 ~ Clamper F include No.61 1
22 - Clarnper plate FG40 include No.61 1
23 | 9KA 82G0 57 | Magnet 17x27x5 include No.6 1
29 | 9KA 4G02 1A| Damper FG40 4
31 | 9KA 85HO 01 | Screw F 4
32 | 9KA 85P0 11 | P.W.board FG40K 1
42 | 9KA 2S00 9A | Spring E 2
43 | 9KA 82S0 02 | Spring B 1
44 | 9KA 82S0 03 | Spring C 1
45 | 9KA 85G0 33 | Gear guide 1
49 ad Oil stop washer include No.62 1
56 | 9KA 2G31 5A | Shield wire 360/260 t
57 | 9KA 2G30 4A | 6P connector CWPHO06-260-30-N 1
58 = Screw M3 x 6 P tite include No.61 1
59 =; Felt washer 1.7 x26.5 inciude No.61 1
60 | 9KA 85A0 04 | Slide motor Ass'y (FG) _| include 6,10 1s
61 | 9KA 2A29 6B | Clamper Ass’y include 21,22,23,58,59 | 1s
62 | 9KA 85A0 14 | Spindle motor Ass'y include 1,5,11,14,49 1s
{
i
i
i
i : i i
1 i
40
EXPLODED VIEW OF CD MECHANISM UNIT (TCD-77S)
1
2
th
