Denon DCM-560 - Laser Pick-up Handling and Description; Laser Pick-up Component Overview; Laser Pick-up Pin Connector Details

8 DCM-560/460

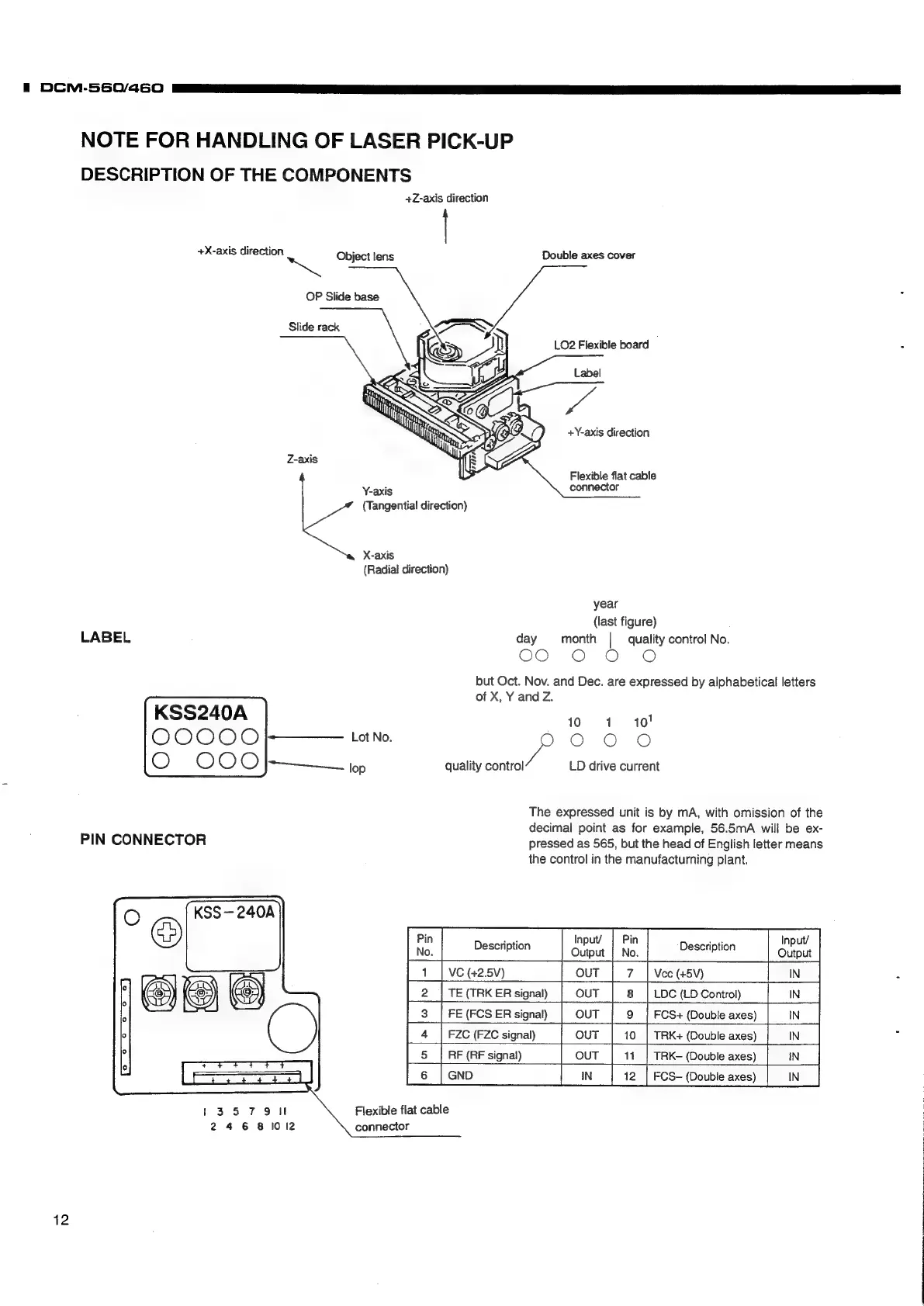

NOTE FOR HANDLING OF LASER PICK-UP
DESCRIPTION OF THE COMPONENTS
+Z-axis direction
|
+X-axis
direction
Object
lens
Double
axes
cover
OP Slide base
Slide rack IS Y,
+Y-axis direction
Z-axis
Flexible flat cable
Y-axis connector
(Tangential direction)
X-axis
(Radial direction)
year
(last figure)
LABEL day month | quality control No.
CI. WI Ae
but Oct. Nov. and Dec. are expressed by alphabetical letters
of X, Y and Z.
KSS240A war tae ABs
OOOO Lot No. COO
‘e O O O “————— lop quality control LD drive current
The expressed unit is by mA, with omission of the
decimal point as for example, 56.5mA will be ex-
PIN
CONNECTOR
pressed
as
565,
but the
head
of
English
letter
means
the
control
in
the
manufacturning
plant.
Input? | Pin
Description Description
eee
Bele
VC (+2.5V)
TE (TRK ER signal)
FE (FCS ER signal)
FZC (FZC signal)
RF (RF signal)
GND
Vec (+5V)
OUT 8 LDC (LD Control) IN
OUT 9 | FCS+ (Double axes) IN
OUT 10 | TRK+ (Double axes) IN
OUT 11. | TRK— (Double axes) IN
—T
12 | FCS— (Double axes) IN
oo Oo G oO oO
Flexible flat cable
connector
135 79 I
24 6 8 10 [2
12
