@ DN-951FA/961FA

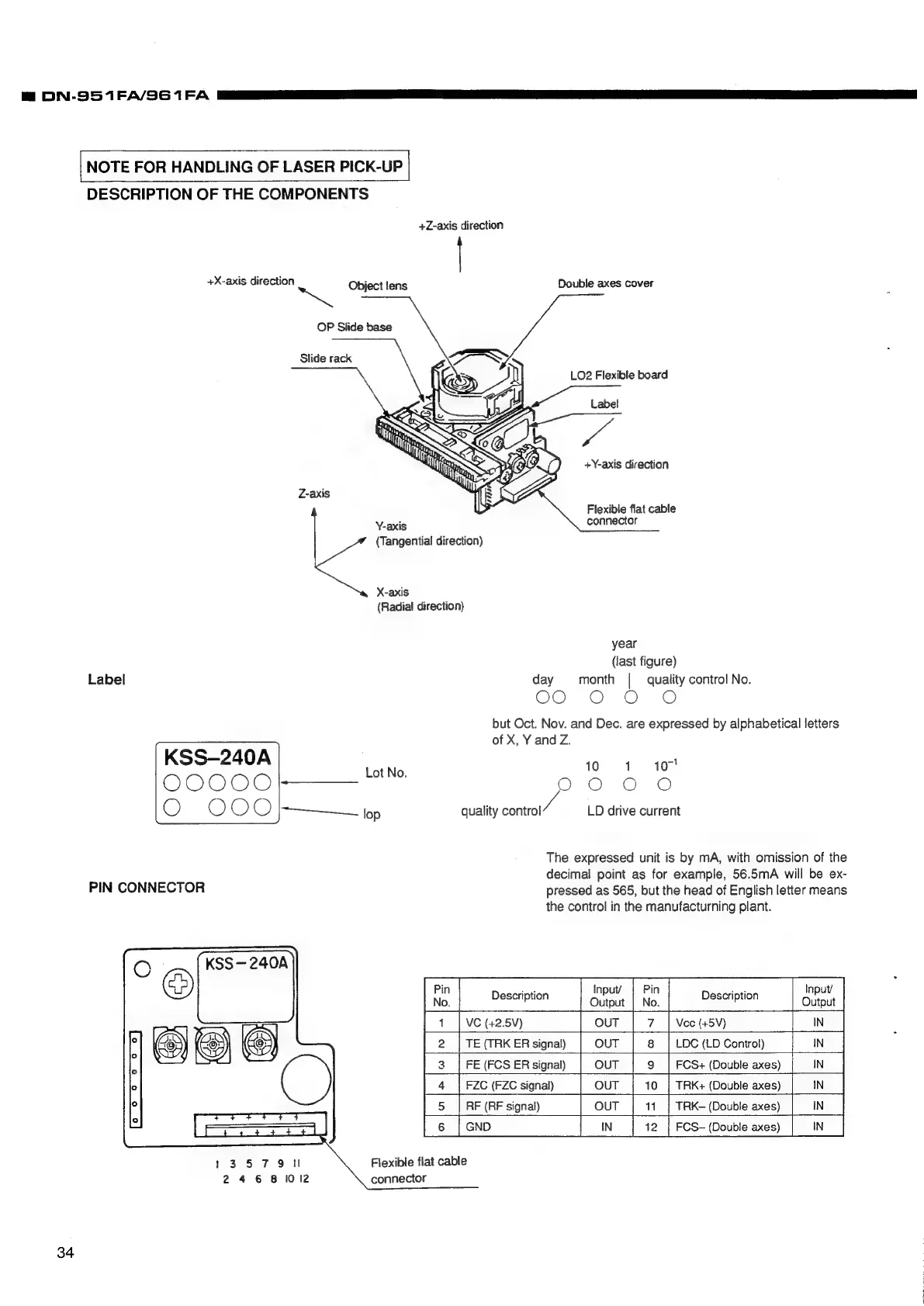

NOTE FOR HANDLING OF LASER PICK-UP |
DESCRIPTION OF THE COMPONENTS
7 direction
+X-axis direction Object lens Double axes cover
OP Slide base
Slide rack
LO2 Flexible board
+Y-axis direction
Z-axis
Flexible flat cable
Y-axis connector
(Tangential direction)
X-axis
(Radial direction)
year
(last figure)
Label day month | quality control No.
OOo OOO ©
but Oct. Nov. and Dec. are expressed by alphabetical letters
of X, Y and Z.
KSS-240A ae ae
Lot No.
OO OO ©
O O O O lop quality ae LD drive current
The expressed unit is by mA, with omission of the
decimal point as for example, 56.5mA will be ex-
PIN CONNECTOR pressed as 565, but the head of English letter means
the control in the manufacturning plant.
KSS— 240A
O
135 79 ll
2.4 6 8 1012
“©
Description Description
VC (+2.5V) Vec (+5V)
TE (TRK ER signal) LDC (LD Control)
FE (FCS ER signal) FCS+ (Double axes)
FZC (FZC signal) TRK+ (Double axes)
RF (RF signal) TRK-— (Double axes)
FCS- (Double axes)
oo 9 9 00
Flexible flat cable
connector
