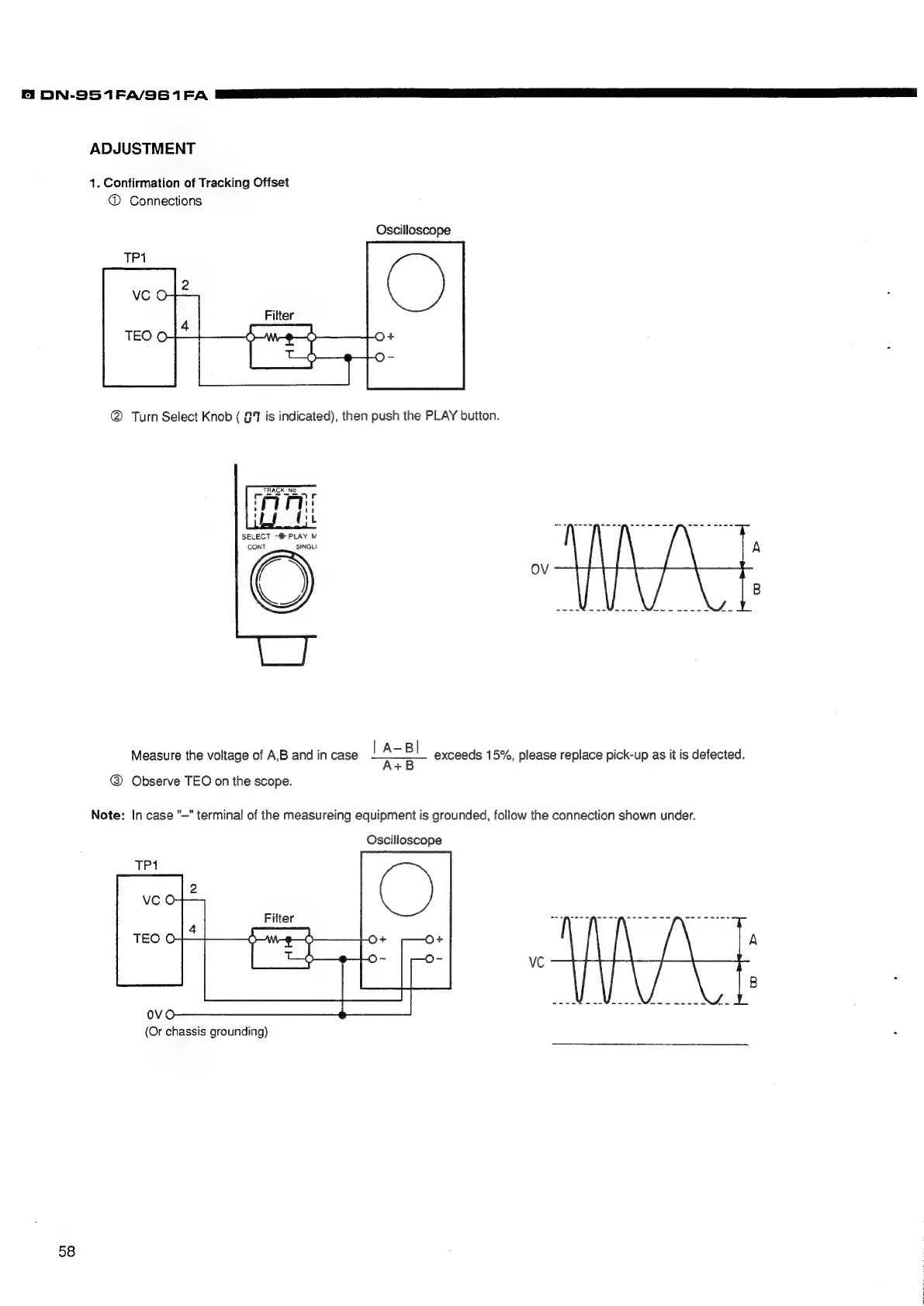

ADJUSTMENT
1. Contirmation of Tracking Offset
@ Connections
Oscilloscope
SELECT ~-® PLAY NV
CONT SINGLI
| A-B|
+
Measure the voltage of A,B and in case exceeds 15%, please replace pick-up as it is defected.
@ Observe TEO on the scope.
wow
Note: In case "—" terminal of the measureing equipment is grounded, follow the connection shown under.
Oscilloscope
(Or chassis grounding) é
