Denon DN-D6000 - TOP PANEL DIAGRAM

3
DN-D6000
DISASSEMBLY
(Follow the procedure below in reverse order when reassembling.)

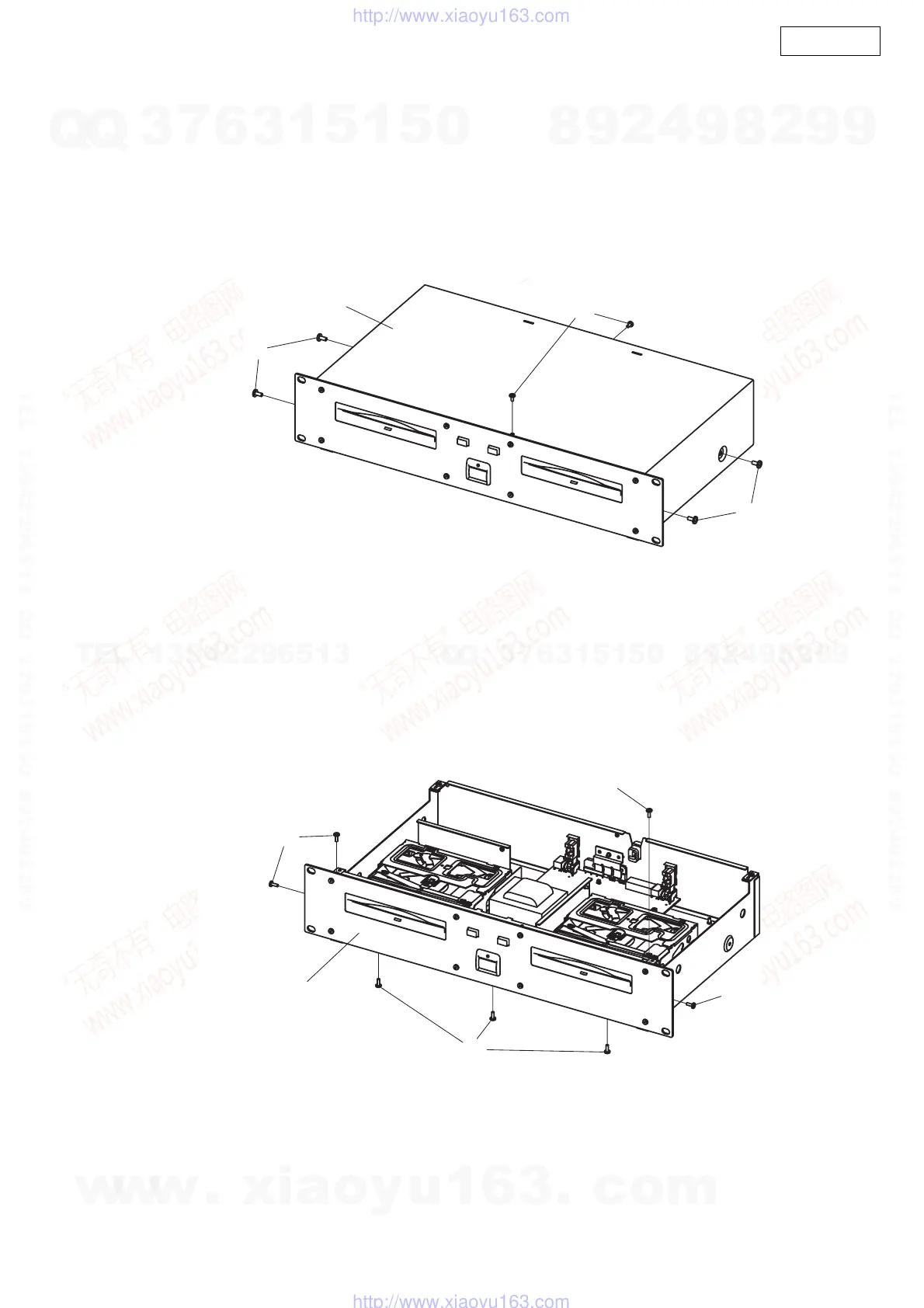

Main Unit
1. Top cover
(1) Remove 4 screws 56 and 2 screws 59.
(2) Detach Top Cover.
2. Front panel unit
(1) Remove 7 screws 59 and pull out Front panel unit.
Top cover
56
59
56
Front panel unit
59
59
59
59
