4
DN-D6000

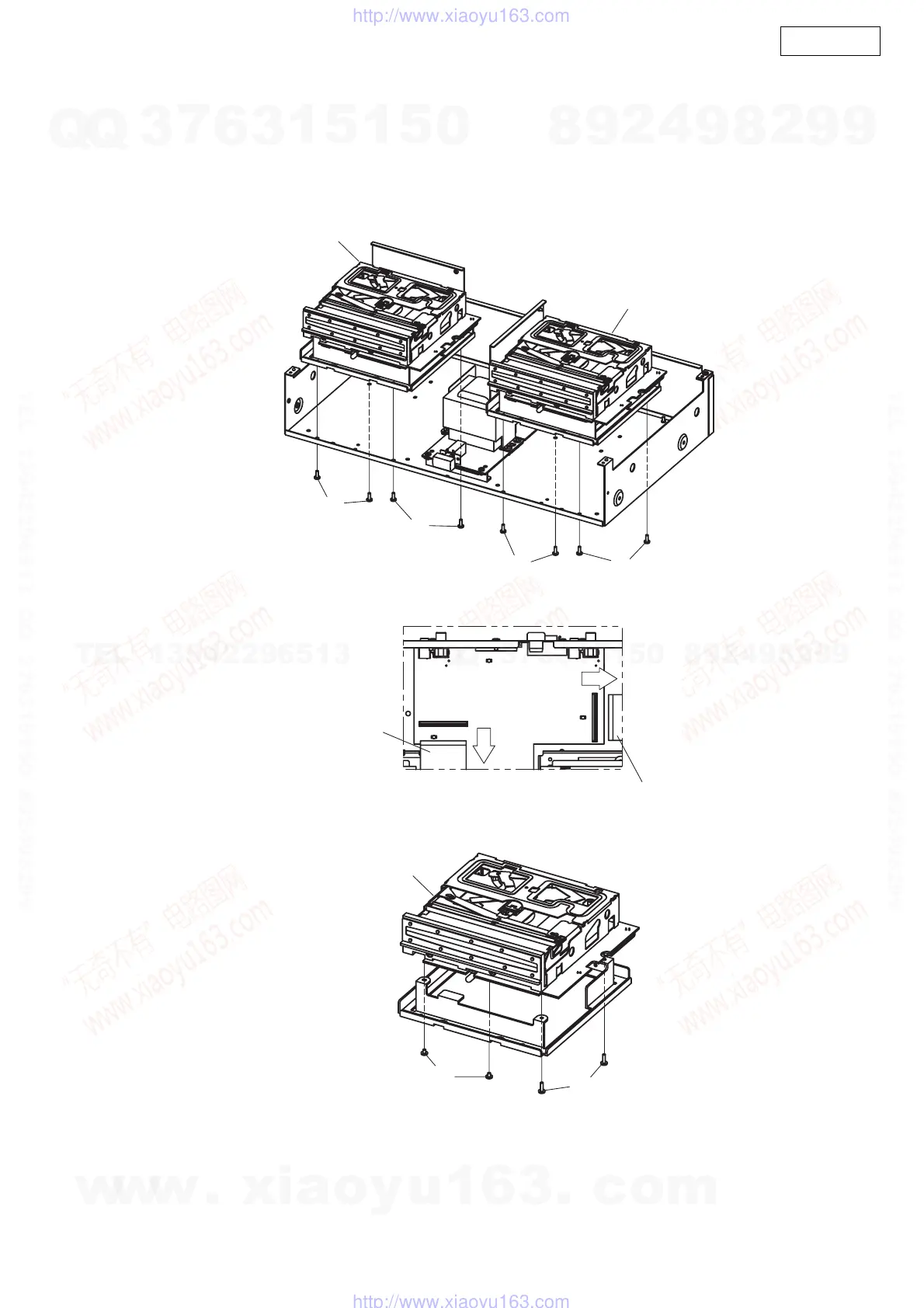

3. Mecha unit
(1) Remove 8 screws 59.
(2) Disconnect FFC cable.
(3) Remove 2 screws 51 and 2 screws 53.
(4) Detach Mecha unit.
Note:
z Do not pull out aslant to prevent Flat cable damage.
z Do not fail to pull AC cord from wall outlet before disconnect the Flat Cable.
If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.
Mecha unit
59
59
59
Mecha unit
59
CX302
FFC cable
CX301
FFC cable
Mecha unit
51
53
