DN-D6000
Remote Control Unit

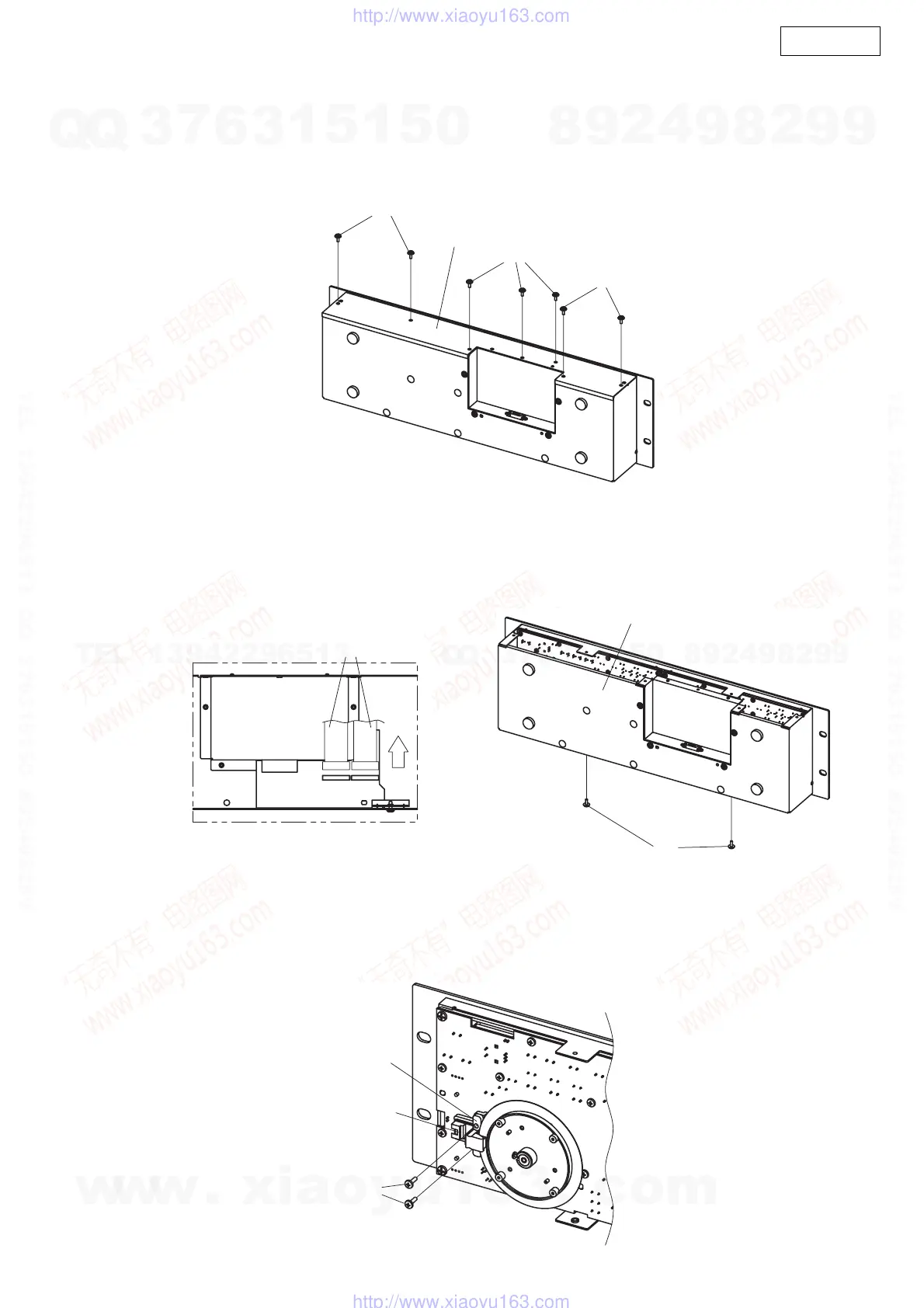

1. Top cover
(1) Remove 7 screws 58.
(2) Detach Top cover.
2. Cover
(1) Disconnect Connector.
(2) Remove 2 screws 58 and pull out Cover.
3. Sensor unit
(1) Remove 2 screws 53 and pull out Sensor cover.
(2) Detach Sensor unit.
Top cover
58
58
58
Connector
CX122
CX121
58
Cover
Sensor unit
53
Sensor cover
