4
DN-S1000

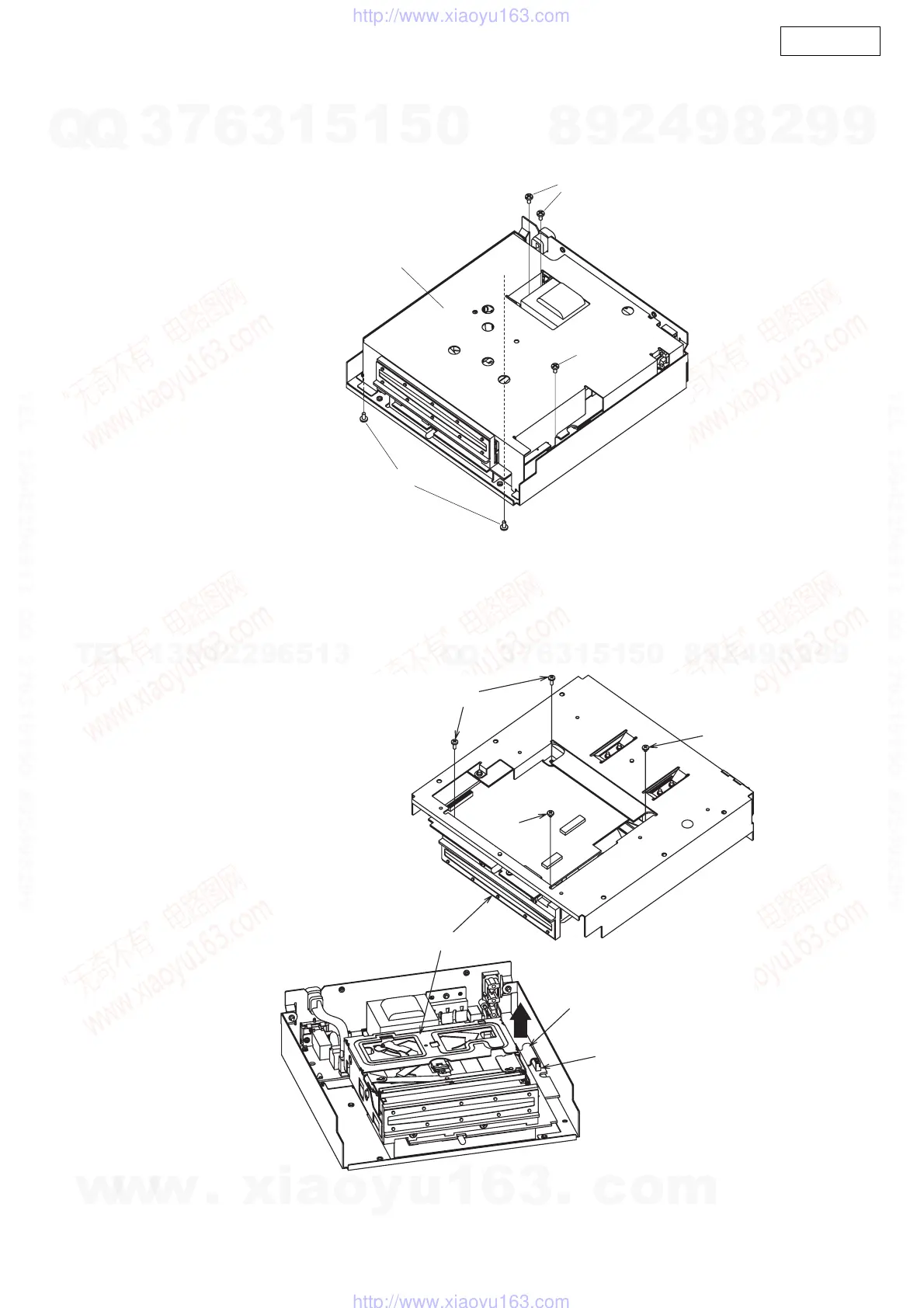

3. Shield Bracket
(1) Remove 4 screws 58 and 2 screws 67.
(2) Detach Shield Bracket.
4. Mecha unit
(1) Remove 2 screws 53 and 2 screws 55.
(2) Disconnect FFC cable.
(3) Detach Mecha Unit.
Note:
z Do not pull out aslant to prevent FFC cable damage.
z Do not fail to pull AC cord from wall outlet before disconnect the FFC cable.
If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.
Shield Bracket
67
58
58
Mecha unit
CX301
FFC Cable
55
53
53
