7
DN-S1000

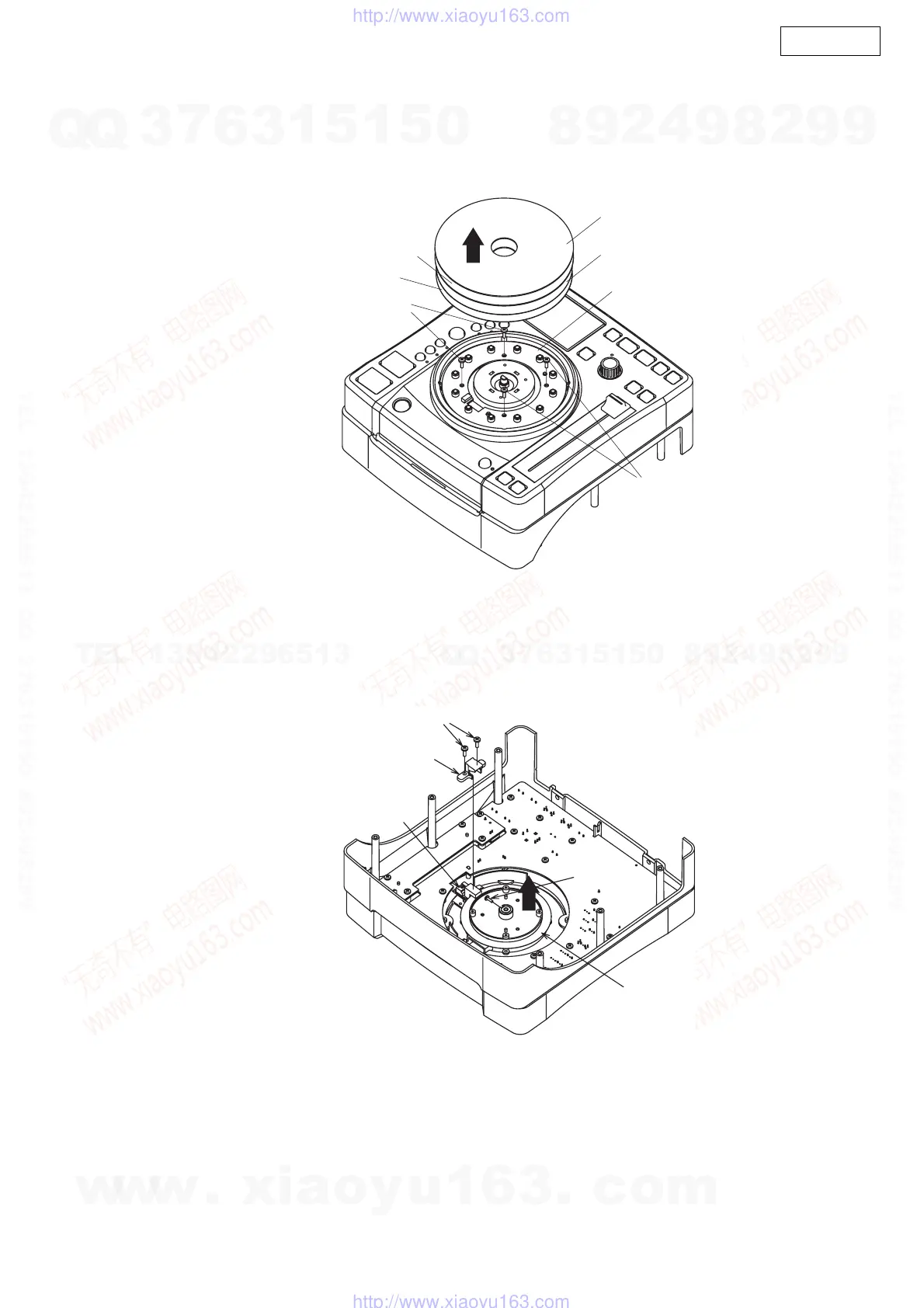

9. Disc Switch P.W.B.
(1) Detach Slip mat, Anti-Static Sheet and Spring Plate.
(2) Remove 4 screws 56.
(3) Detach Disc Switch P.W.B.
10. Sensor P.W.B. and Scale unit
(1) Remove 2 screws 56 and pull out Sensor Cover and Sensor P.W.B.
(2) Remove a screw 51 and pull out Scale unit.
Spring Plate
56
Slip mat
Anti-Static Sheet
Disc Switch P.W.B.
Slip Sheet
56
ensor P.W.B.
Sensor Cover
56
Scale un
51
