5
5DN-S3000

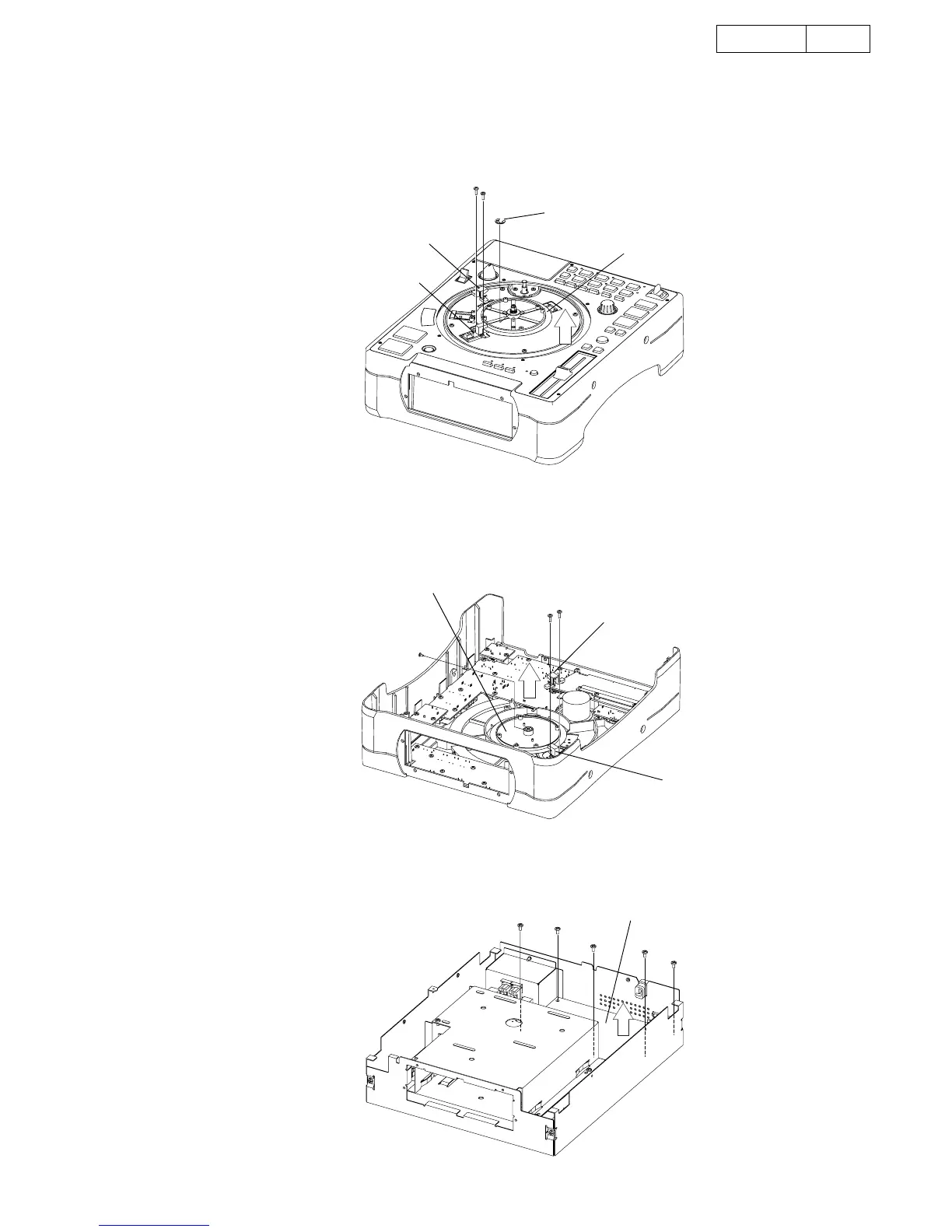

5. SENSOR AND SCALE UNITS OF PLATTER
(1) Remove 2 screws and pull out Sensor Cover and Sensor unit.
(2) Remove a E Ring.
(3) Pull out Scale unit.
6. SENSOR AND SCALE UNITS OF SLIP DISC
(1) Remove 2 screws and pull out Sensor Cover and Sensor unit.
(2) Remove a screw and pull out Scale unit.
7. POWER PWB
(1) Remove 5 screw and pull out Power PWB.
Sensor Cover
Sensor unit
E Ring
Scale unit
Scale unit
Sensor unit
Sensor Cover
Power PWB
To Next Page
