Denon DP-S1 Service Manual

mms
(2S
=
SSS
Ap
Ra
ES
I

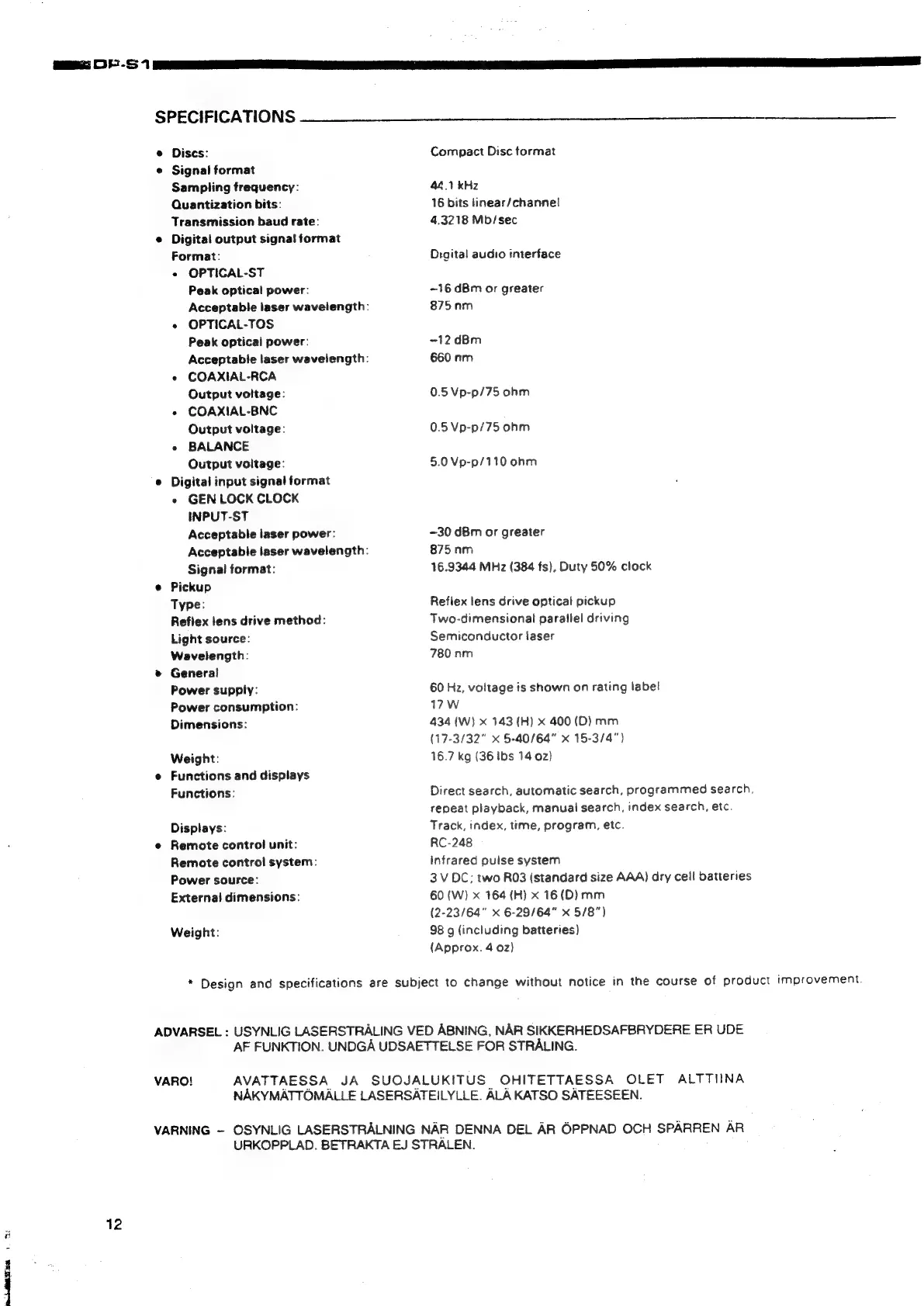

SPECIFICATIONS
e Discs:
e Signal format
Sampling frequency:
Quantization bits:
Transmission baud rate:
© Digital output signal format
Format:
« OPTICAL-ST
Peak optical power:
Acceptable laser wavelength:
« OPTICAL-TOS
Peak optical power:
Acceptable laser wavelength:
« COAXIAL-RCA
Output voltage:
« COAXIAL-BNC
Output voltage:
e BALANCE
Output voltage:
e Digital input signal format
e GENLOCK CLOCK
INPUT-ST
Acceptable laser power:
Acceptabie laser wavelength:
Signal format:
e Pickup
Type:
Reflex lens drive method:
Light source:
Wavelength:
» General
Power supply:
Power consumption:
Dimensions:
Weight:
e Functions and displays
Functions:
Displays:
e Remote control unit:
Remote control system:
Power source:
External dimensions:
Weight:
Compact Disc tormat
44.1 kHz
16 bits linear/channel
4.3218 Mb/sec
Orgital audio interface
~16 dBm or greater
875nm
-12 dBm
660 nm
0.5 Vp-p/75 ohm
0.5 Vp-p/75 ohm
5.0 Vp-p/110 ohm
~30 dBm or greater
875 nm
16.9344 MHz (384 fs), Duty 50% clock
Refiex lens drive optical pickup
Two-dimensional parallel driving
Semiconductor laser
780 nm
60 Hz, voltage is shown on rating label
17 W
434 (W) x 143 (H) x 400 (D) mm
(17-3/32" x 5-40/64" x 15-3/4")
16.7 kg (36 Ibs 14 02)
Direct search, automatic search, programmed search,
repeat playback, manual search, index search, etc.
Track, index, time, program, etc.
RC-248
infrared pulse system
3V DC; two R03 (standard size AAA) dry ceil batteries
60 (W) x 164 (H) x 16(D) mm
(2-23/64" x 6-29/64" x 5/8")
98 g (including batteries)
(Approx. 4 02)
*
Design
and
specifications
are
subject
to
change
without
notice
in
the
course
of
product
improvement.
9g
