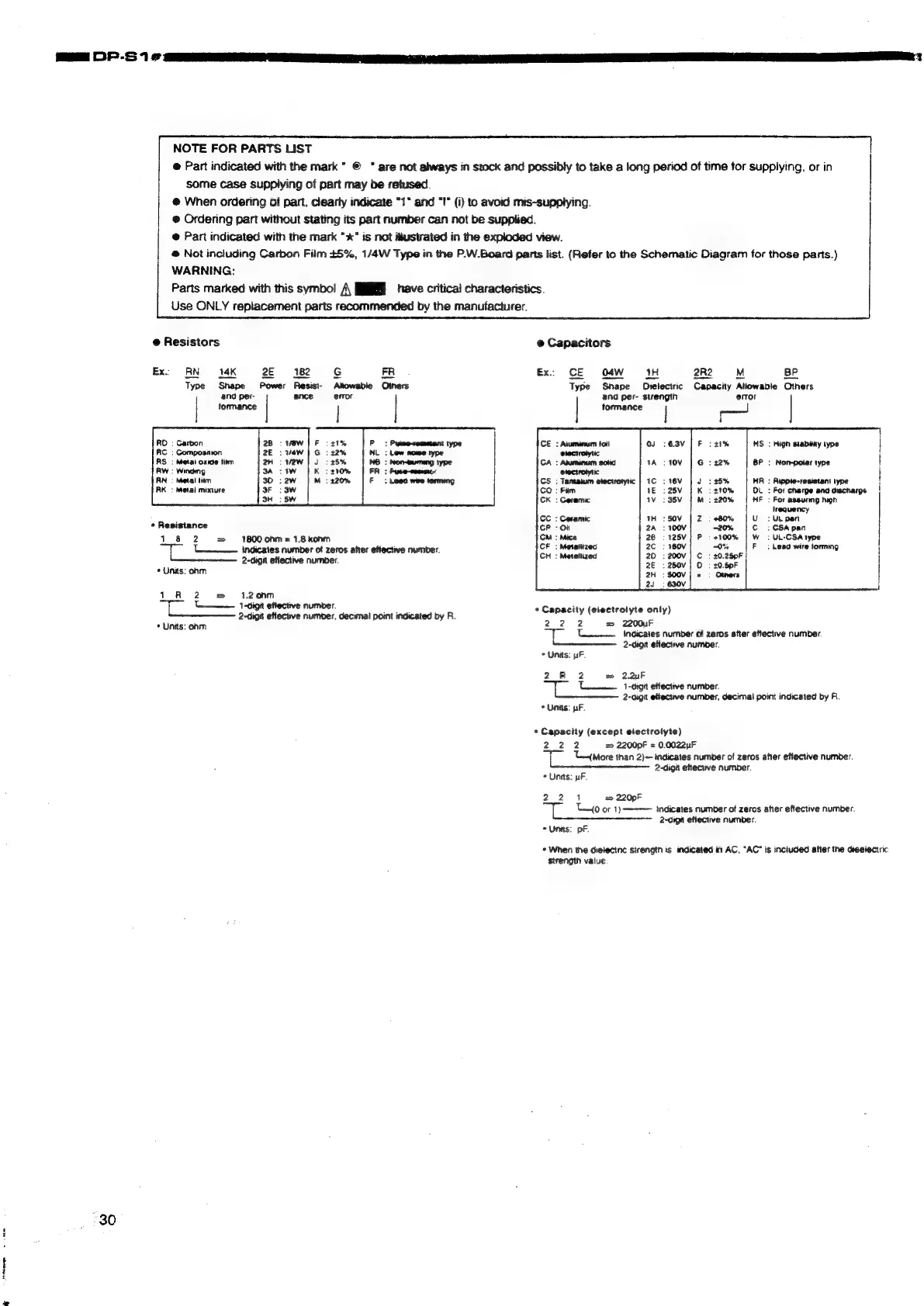

NOTE FOR PARTS LIST
@ Part indicated with the mark" © * are not always in stock and possibly to take a long period of time for supplying, or in
some case suppiying of part may be retused.
@ When ordering of part, clearly indicate °1* and “I* (i) to avoid mis-supplying.
@ Ordering part without stating its part number can not be supplied.
@ Part indicated with the mark **" is not Hustrated in the expioded view.
@ Not inciuding Carbon Film 5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbo! /\ IN have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
@ Resistors
Ex: BN 14K 26 162 G FR
Type Shape Power Resisi- Alowabie Otners
and per- ance error
| formance |
: Carton
: Composaion
: Metal oxide film
: Winding
: Metal fiim
: Melal minure
+ Resistance
1 8 2 => 1800 onm = 1.8 konm
[ LW. indicates number of zeros atter effective number.
2-digit effective number.
¢ Units: ohm
1 R 2 > 1.2 onm
[ L———— 1-digit effective number.
2-digit effective number, decimal point indicated by R.
* Units: onm
@ Capacitors
Ex: CE O4W 3H 2R2 M BP
Type Snape Dielectric Capacity Allowable Others
and per- strength error
formance | |
: High stabilay type
: Non-polar type
: Ripple-resiatant type
: For charge and discharge |
: For assuring high
frequency
7 UL pan
: CSA pan
: UL-CSA type
: Lead wire forming
: Metallized
* Capacity (electrolyte only)
22 2 => 2200uF
Ci indicates number of zeros after effective number.
2-dign effective number.
° Units: pF.
2 R 2 => 2.2uF
Liu. I-tigit effective number.
2-aigit effective number, decimal point indicated by RF.
* Units: pF.
* Capacity (except electrolyte)
2.2 2 = 2200pF = 0.0022pF
Lim(More than 2)— indicates number of zeros after effective number.
2-digh effective number.
° Unas: pF.
2.2 1 => 220pF
40 or 1) indicates number of zeros atier effective number.
2-diga effective number.
*Unnas: pF.
* When the dielecine strength is indicated in AC, “AC™ is inciuded after the dieelectric:
strength value
