Denon DP-S1 Service Manual

oe
gE OP-S1

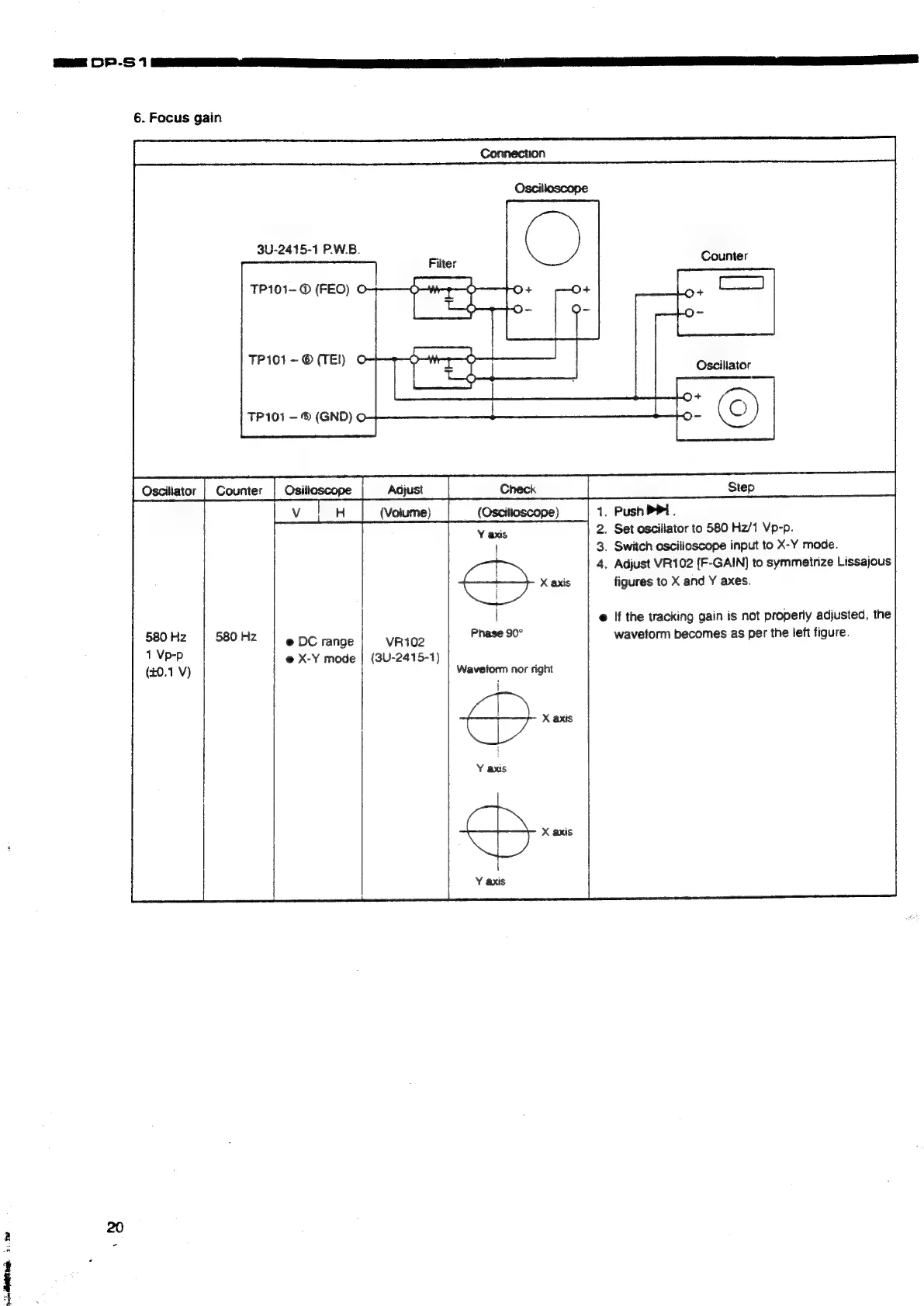

6. Focus gain
580 Hz
1 Vp-p
(+0.1 V)
3U-2415-1 P.W.B.
TP101-@ (FEO) ©
TP101-@© (TE!) ©
TP101 -
580 Hz
VRi02 daa
(3U-2415-1)
Waveform nor right
|
Counter
2. Set oscillator to 580 Hz/1 Vp-p.
3. Switch oscilloscope input to X-Y mode.
4.
Adjust
VR102
[F-GAIN]
to
symmetrize
Lissajous
figures
to
X
and
Y
axes.
@ If the tracking gain is not properly adjusted, the
waveform becomes as per the left figure.
