Denon DP-S1 Service Manual

S604 S605
ARVS STOP
a) o>
S| 2 ao} 2
©
8
U.S.A: 1.64
EUROPE : JUMPER
TD
CB600
+B UNE
—B UNE
To 3U-2415-1
OSOODOH]
RM600
GP1U591X
1
O 11

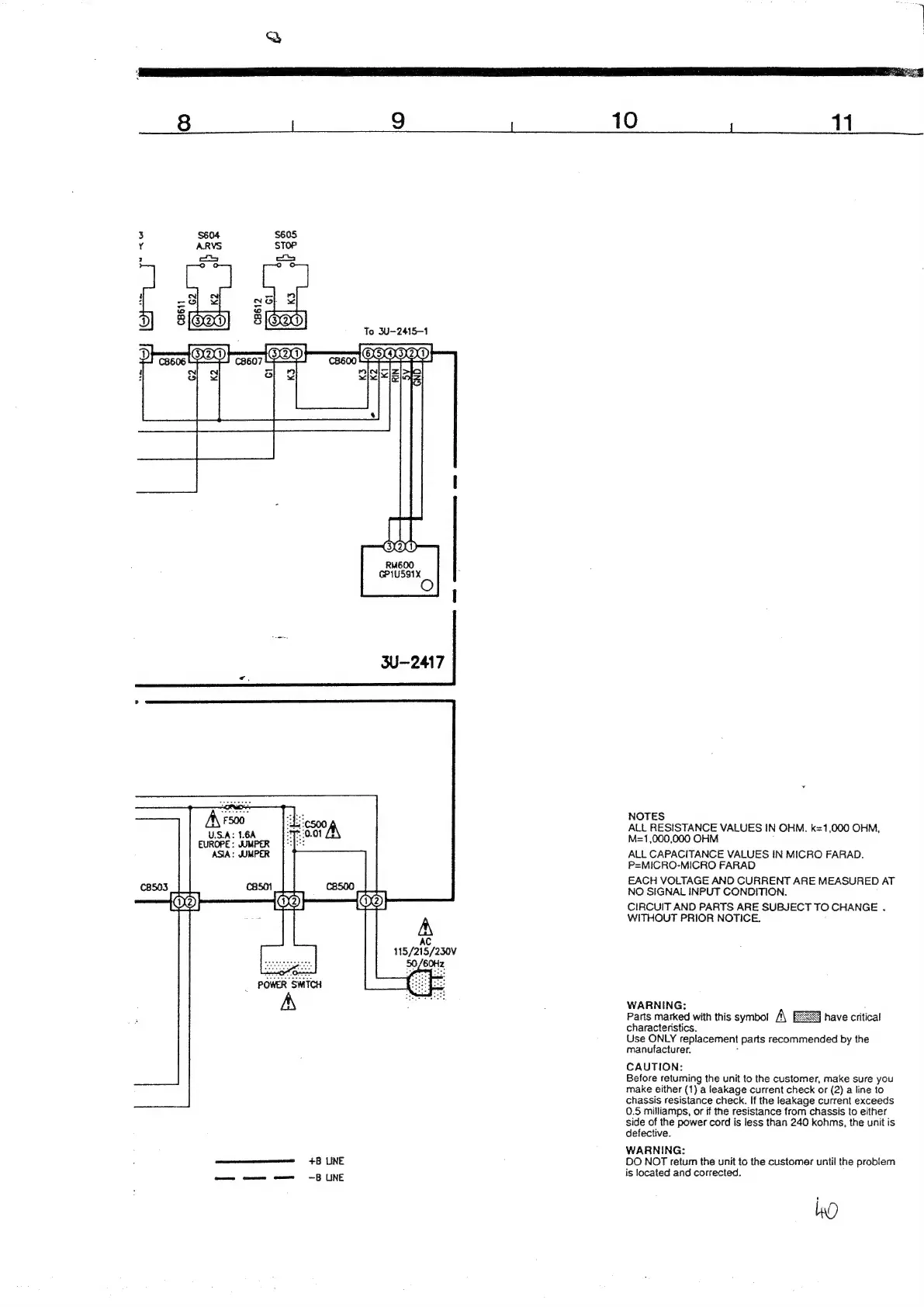

NOTES
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM,
M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD.
P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASURED AT
NO SIGNAL INPUT CONDITION. ;
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE .
WITHOUT PRIOR NOTICE.
WARNING:
Parts marked with this symbol A\ have critical
characteristics.
Use ONLY replacement parts recommended by the
manufacturer. :
CAUTION:
Before retuming the unit to the customer, make sure you
make either (1) a leakage current check or (2) a line to
chassis resistance check. If the leakage current exceeds
0.5 milliamps, or if the resistance from chassis to either
side of the power cord is less than 240 kohms, the unit is
defective.
