28

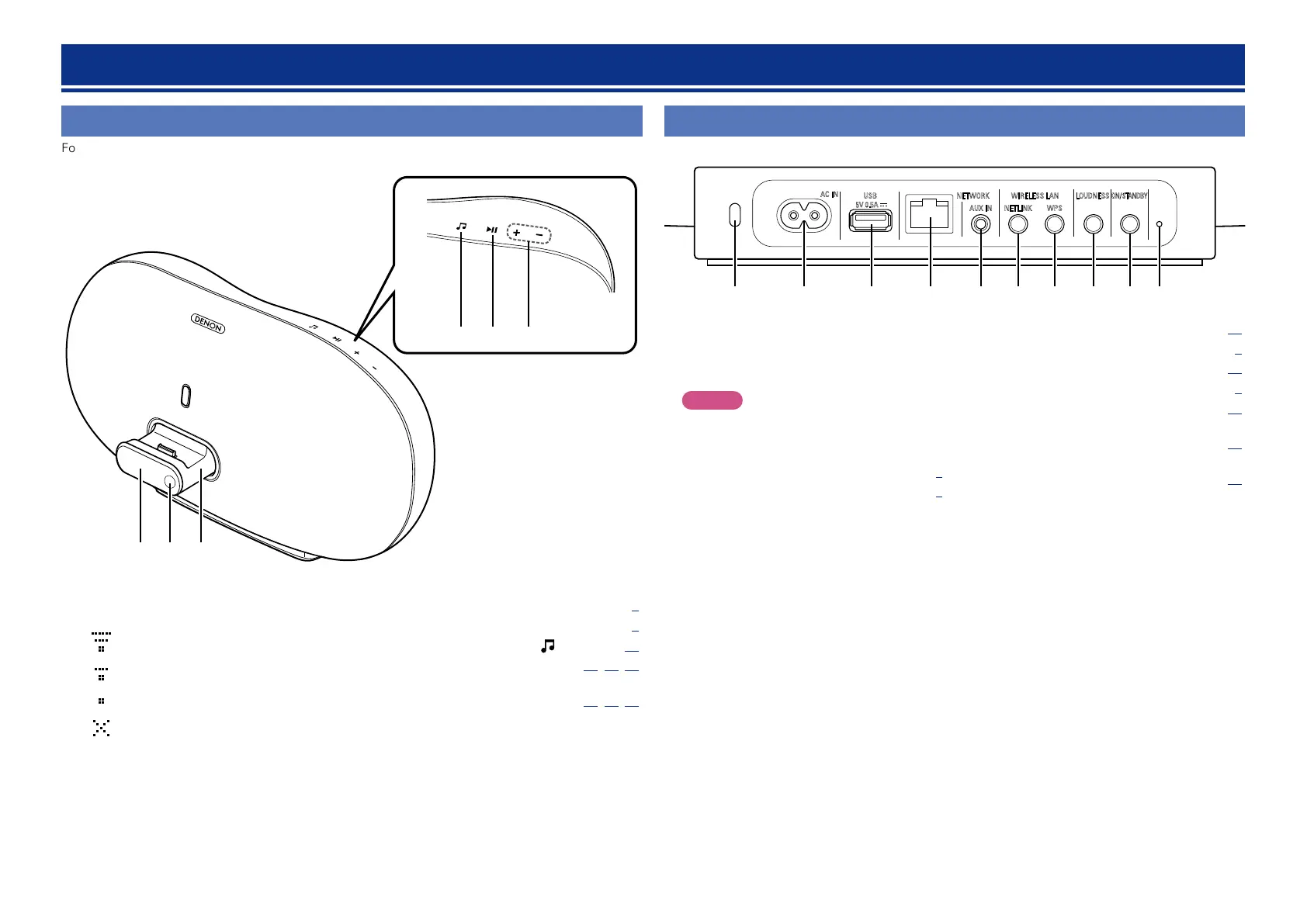

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
q ew
r t y
q Display
GWireless LAN signal strengthH
: Strong
: Medium
: Weak
: Not connected
Part names and functions
Rear panel
See the page indicated in parentheses ( ).
AC IN
USB NETWORK WIRELESS LAN LOUDNESS
ON
/
STANDBY
AUX IN NETLINK WPS
5V 0.5A
wq e r t y u i o Q0
q Security slot
You can attach a security cable to deter theft.
Use a security cable that is compatible with this
unit. For details, contact your dealer.
NOTE
Security cables have deterrent effects, but do
not completely prevent theft or misuse of this
unit.
w AC inlet (AC IN) ············································· (5)
e USB port ························································ (5)
r Network connector (NETWORK) ·············· (10)
t AUX IN jack ··················································· (5)
y NETLINK button ········································· (11)
u WPS button ··················································· (9)
i LOUDNESS button ····································· (14)
o Power operation button
(ON/STANDBY) ·········································· (13)
Turns power to this unit on and off (standby).
Q0 Reset hole ··················································· (35)
w Remote control sensor ································ (3)
e Dock ······························································· (6)
r Input source select button ( ) ················· (13)
t Play/Pause button (13) ················ (14, 22, 35)
y Volume control buttons
(+, – ) ················································ (13, 22, 35)
