TECHNICAL SPECIFICATIONS
n 3RZHUDPSOL¿HUVHFWLRQ
Rated Output Power :
2-channel driving (CD → SP OUT)
70 W + 70 W (8 Ω, 20 Hz ~ 20 kHz, T.H.D. 0.07 %)
Dynamic power :
140 W + 140 W (4 Ω, DIN, 1 kHz, T.H.D. 0.7 %)
High frequency distortion :
0.01 % (Rated output: –3 dB), 8 Ω, 1 kHz
Output terminals : Speaker A or B: 4 ~ 16 Ω
A + B: 8 ~ 16 Ω
Suited for headphones/stereo headphones
Input sensitivity/Input impedance :
POWER AMP DIRECT: 0.84 V / 47 kΩ
Amplification factor: 29 dB
n 3UHDPSOL¿HUVHFWLRQ
Equalizer amplifier output : 150 mV
(REC OUT terminals)
Input/output level and impedance :
PHONO (MM): 2.5 mV/47 kΩ
PHONO (MC): 200 μV/100 Ω
CD, TUNER, LINE, RECORDER-1, RECORDER-2:
125 mV/45 kΩ (SOURCE DIRECT OFF)
125 mV/24 kΩ (SOURCE DIRECT ON)
RIAA Deviation : PHONO: 20 Hz ~ 20 kHz ±0.5 dB
Maximum Input : PHONO (MM): 150 mV/1 kHz
PHONO (MC): 13 mV/1 kHz
Rated Output : PRE OUT: 0.84 V (Input CD 125 mV)
n 2YHUDOOSHUIRUPDQFH
SN Ratio (A network) :
PHONO (MM): 89 dB
(With input terminals short-circuited, 5 mV input signal)
PHONO (MC): 74 dB
(With input terminals short-circuited, 0.5 mV input signal)
CD, TUNER, LINE, RECORDER-1, RECORDER-2:
108 dB (input terminals short-circuited)
Tone control : BASS: 100 Hz ±8 dB
TREBLE: 10 kHz ±8 dB
n *HQHUDO
Power supply : AC 230 V, 50 Hz
Power consumption :
285 W
0.2 W (Standby)
0.1 W (ECO Standby)
Maximum external dimensions :
434 (W) x 134 (H) x 410 (D) mm
Weight: 15.5 kg
n 5HPRWHFRQWURO5&
Batteries : R03/AAA Type (two batteries)
Maximum external dimensions : 49 (W) x 220 (H) x 21 (D) mm
Weight : 110 g (including batteries)

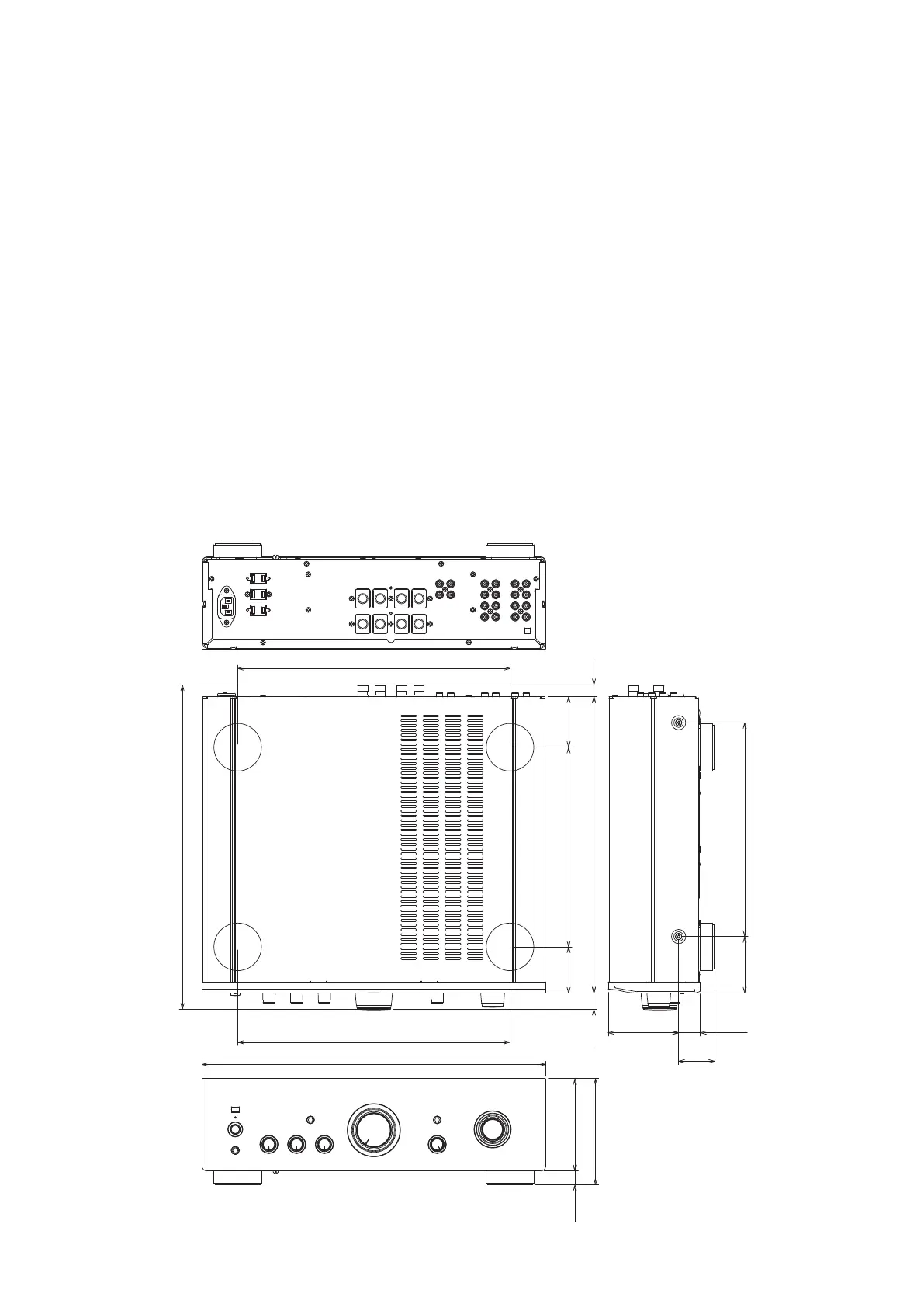

DIMENSION
17.5
116.5
134
434
344
58.5
20.4
374.2
252 63.7
15
344
27.589
45.5
71.5 270
410
