12
4.

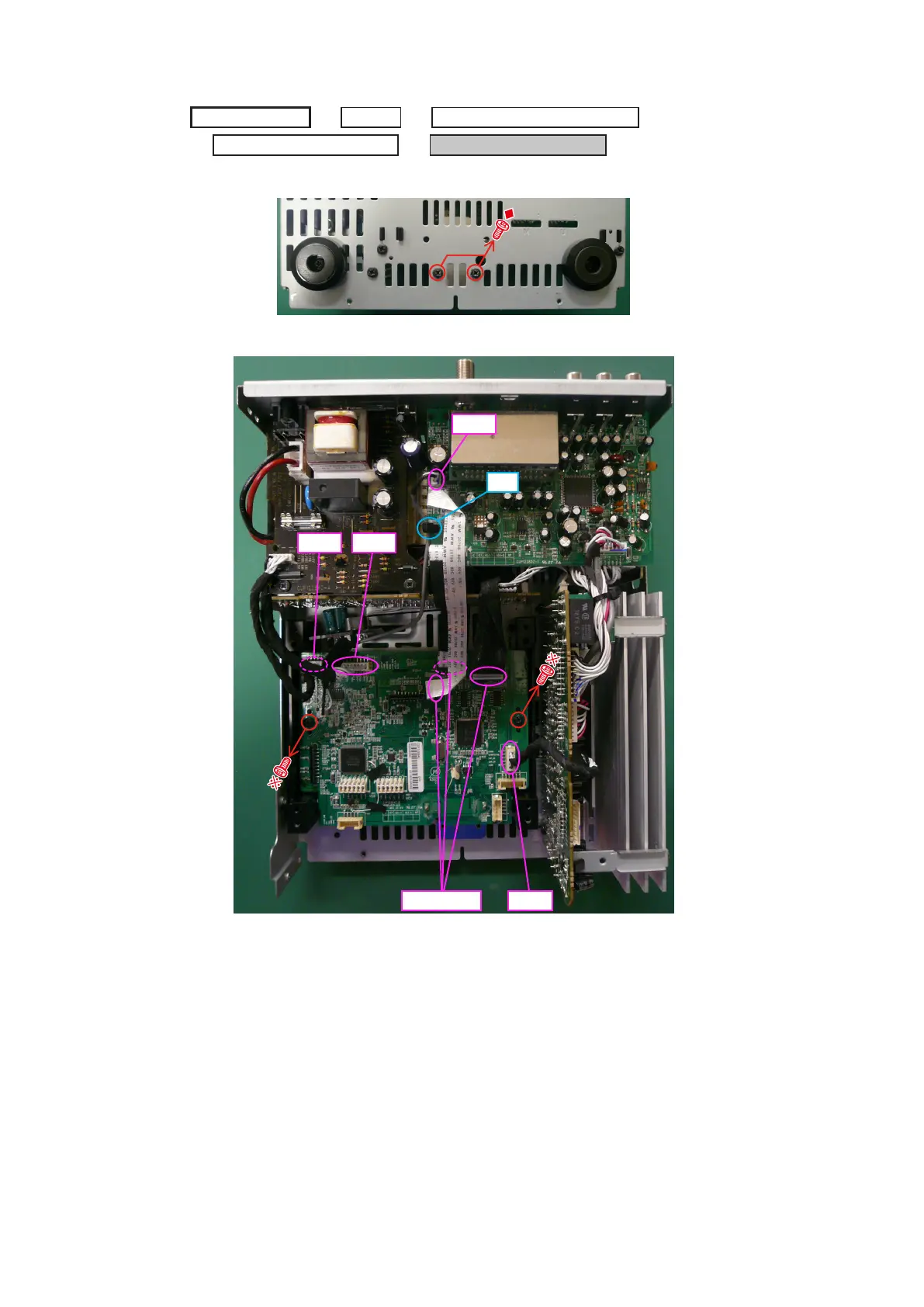

MCU PCB UNIT ASSY
(1)
Removethescrews.
(2)
Cutthewireclampband,thendisconnecttheconnectorwiresandFFCcable.Removethescrews.
Proceeding :
TOP CABINET
DOOR
→
FRONT PANEL SUB ASSY
→
CD MECHANISM ASS'Y
→
MCB PCB UNIT ASSY
→
View from bottom
Direction of photograph: B
cut
CN71
CN96
CN98
CN12
FFC cable
Direction of photograph: B
11
13
