SC-M53 / SC-M73

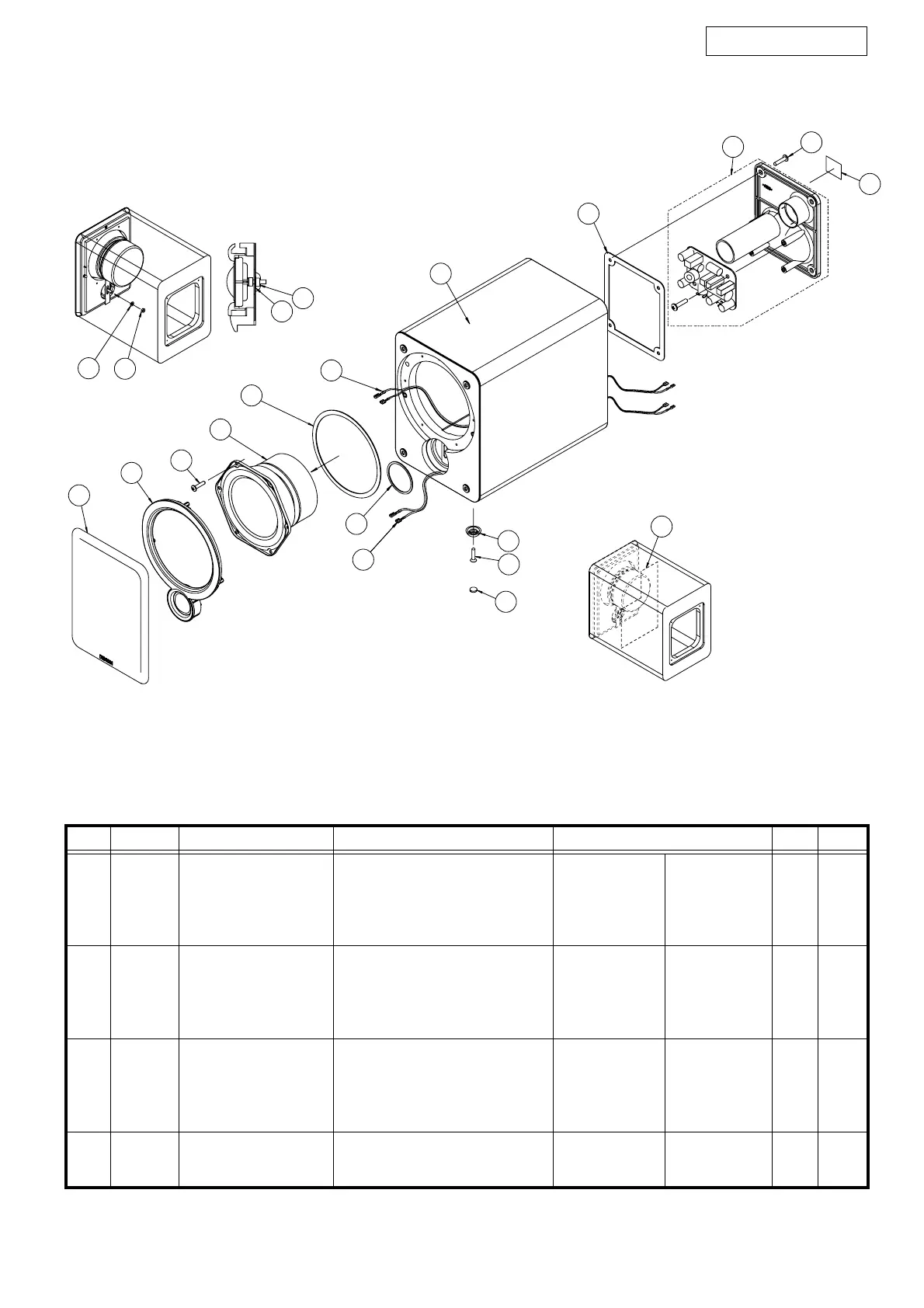

SC-M73 EXPLODED VIEW (EM MODEL)
SC-M73 PARTS LIST OF EXPLODED VIEW (EM MODEL)
※ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
※ Thepartslistedbelowareformaintenanceonly,mightdifferfromthepartsusedintheunitinappearancesordimensions.
Ref. No. Part No. Part Name Remarks Q'ty New
1 00D 949 0052 203 SC-M73CWEM SERVICE AA120010-01 1 *
2 00D 949 0052 601 PACKING 29-100-138-01 1 *
3 00D 949 0052 805 PACKING 29-100-137-01 1 *
4 00D 949 0053 008 FOOT 90-000-110-01 4 *
5 00D 949 0053 202 +K 4X18 TAPPING SCREW 70-027-418-04 4 *
6 00D 949 0053 309 RUBBER FOOT 56-000-072-01 4 *
7 00D 949 0053 406 PACKING 29-100-141-01 1 *
8 00D 949 0053 600 XS025022-01 SP UNIT XS025022-01W 1 *
9 00D 949 0053 707 +B 4X25 TAPPING SCREW 70-015-425-05 10 *
10 00D 949 0053 901 RING ASSY 99-120-037-01 1 *
11 00D 949 0054 104 NET ASSY 99-120-036-01 1 *
12 00D 949 0054 308 SC-M73 N/W ASSY SET SERVICE AA000039-01 1 *
13 00D 949 0054 405 CORD ASSY 61-000-809-01 WF(RED/WHT) 1 *
14 00D 949 0054 502 CORD ASSY 61-000-809-11 TW(YEL/WHT) 1 *
15 00D 949 0054 609 PLAIN WASHER 69-034-400-01 1 *
16 00D 949 0054 706 HEXAGON NUTS 71-005-400-06 1 *
17 00D 949 0054 803 SOUND ABSORBENT 54-000-150-01 1 *
18 00D 949 0055 006 RATING LABEL 60-002-181-01 1 *
1
2
3
4
5
6
7
8
9
10
17
11
13
14
15
15
16
16
12
9
18
WF (RED/WHT)
TW (YEL/WHT)
LEFT TERMINAL (TW)
(YEL/WHT)
RIGHT TERMINAL (WF)
(RED/WHT)
