Denon TU-235RD - Disassembly Procedures; Top Cover Removal; Tuner P.W.B. Removal

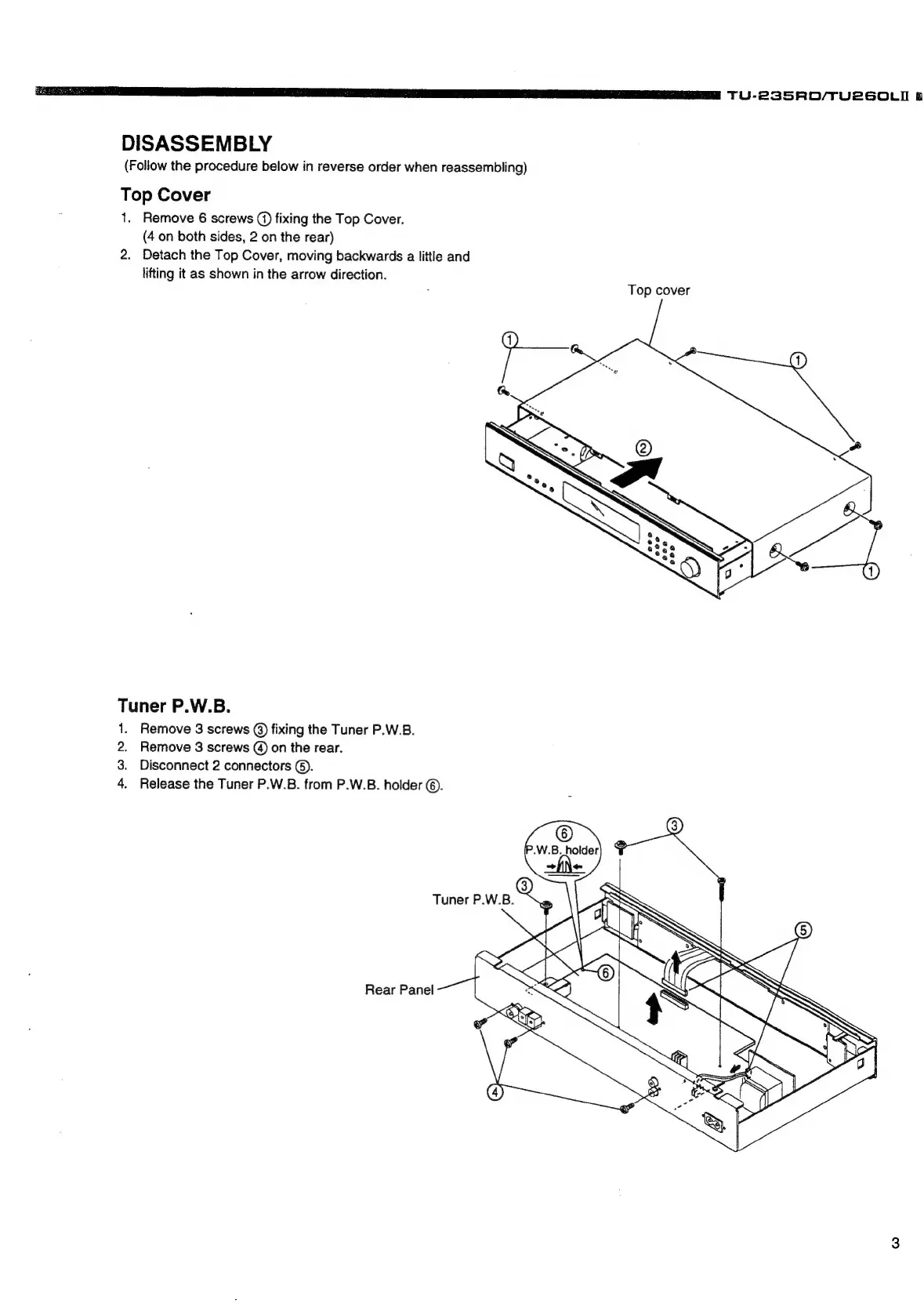

DISASSEMBLY
(Follow the procedure below in reverse order when reassembling)
Top Cover
1.
Remove 6 screws (1) fixing the Top Cover.
(4 on both sides, 2 on the rear)
Detach the Top Cover, moving backwards a little and
lifting it as shown in the arrow direction.
Top cover
TU-235AD0/TVU26OLI &
Tuner P.W.B.
1.
2,
3.
4
Remove 3 screws @) fixing the Tuner P.W.B.
Remove 3 screws @) on the rear.
Disconnect 2 connectors @).
Release the Tuner P.W.B. from P.W.B. holder ©.
Rear Panel
