Denon TU-235RD - Front Panel Disassembly

S88 TU-23S5AD/TUSGOLI &

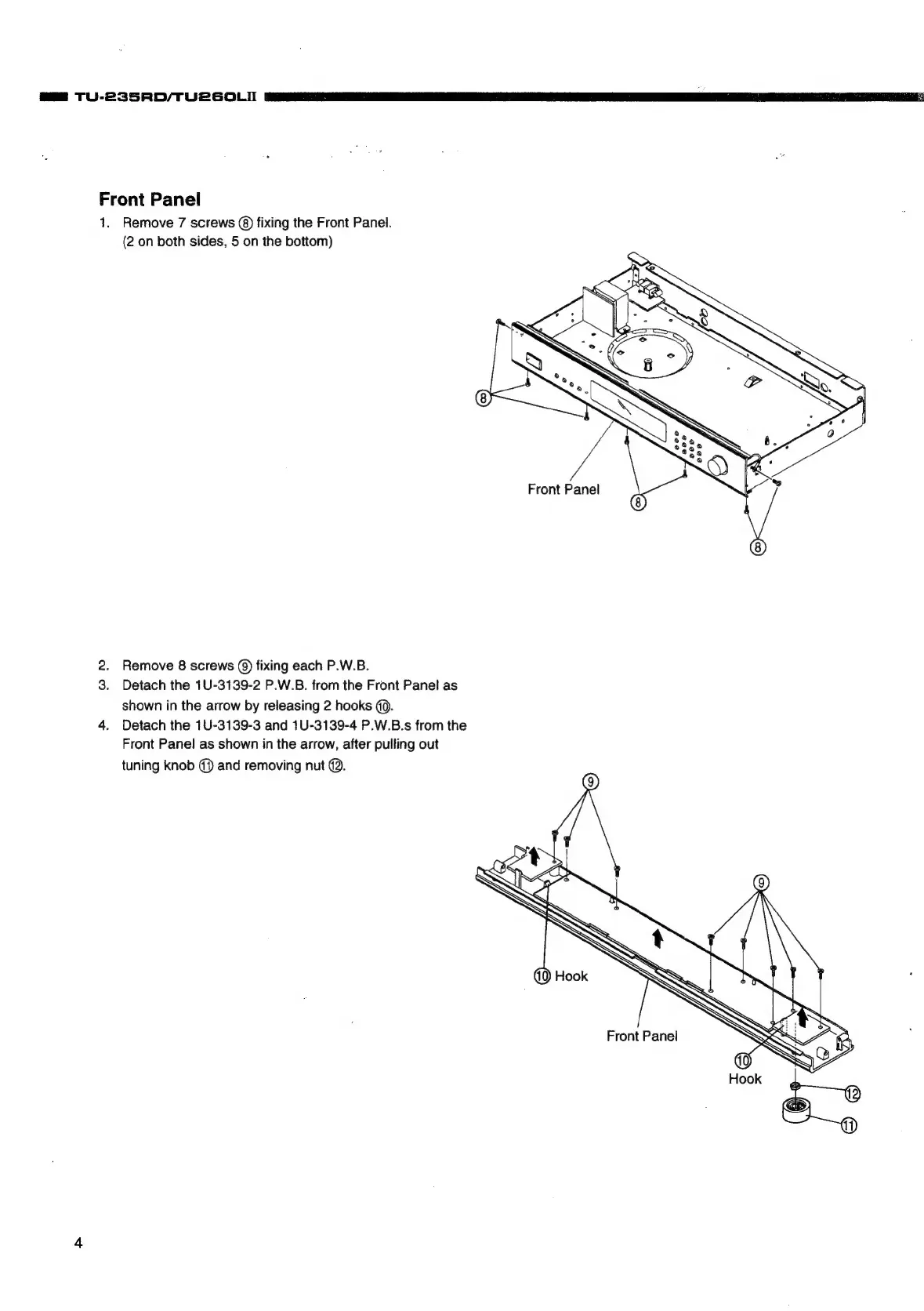

Front Panel
1. Remove 7 screws @) fixing the Front Panel.
(2 on both sides, 5 on the bottom)
Front Panel
2. Remove 8 screws @) fixing each P.W.B.
3. Detach the 1U-3139-2 P.W.B. from the Front Panel as
shown in the arrow by releasing 2 hooks (0.
4. Detach the 1U-3139-3 and 1U-3139-4 P.W.B.s from the
Front Panel as shown in the arrow, after pulling out
tuning knob @) and removing nut @.
