8. Dipswitch

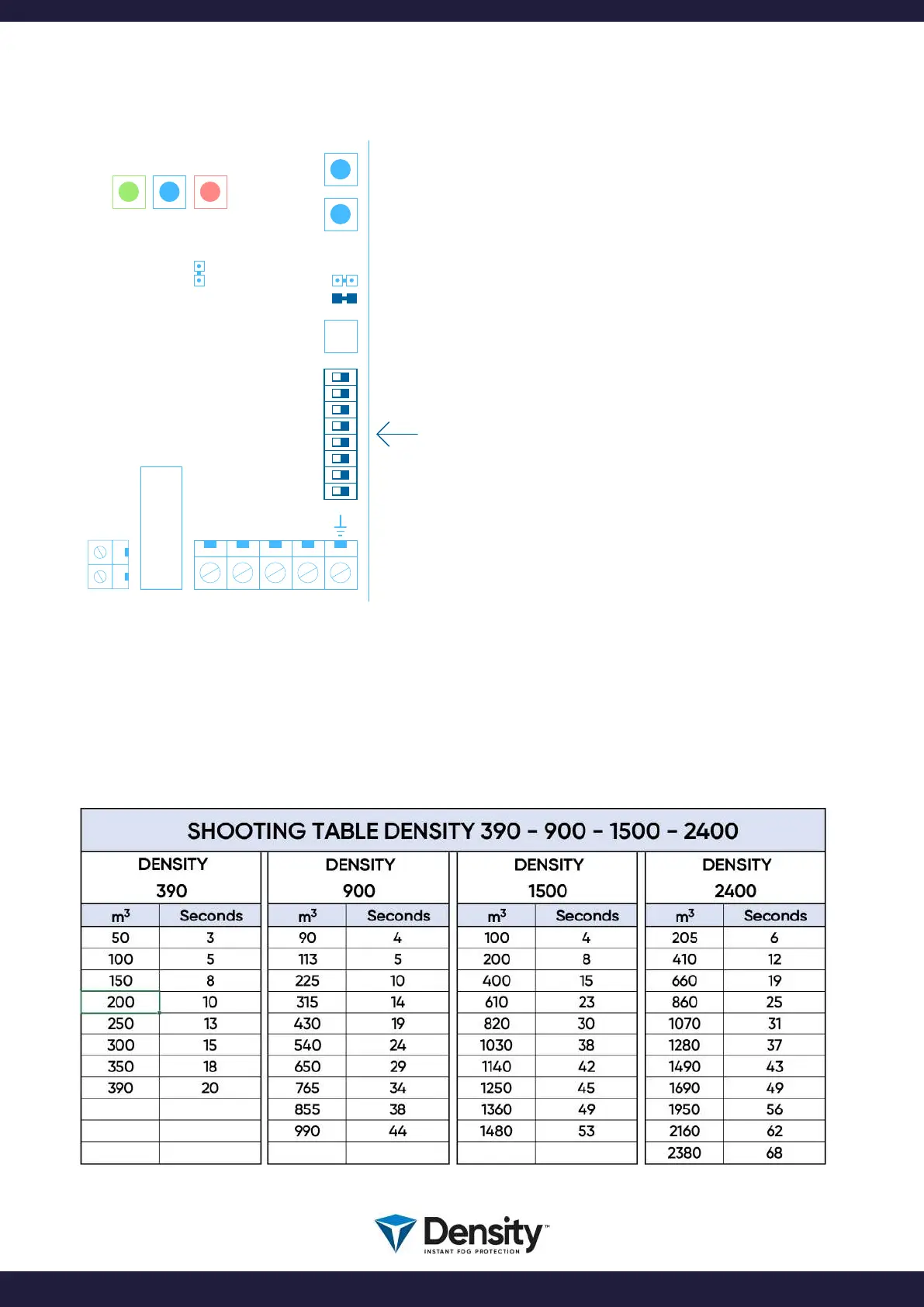

On the PCB, you will nd a 8-pol DIPSWITCH row:
The function of these 8 DIPSWITCHES:
SW 1 = ON = SHOOT verication relay active
SW 2 = ON = Front LED’s are OFF
SW 3 = ON = Internal Buzzer turned OFF
SW 4 = ON = All output relay in Active Security (*)
SW 5 = ON = PANIC function enabled
SW 6 = ON = Active input on ARM and SHOOT (NC)
SW 7 = Not used
SW 8 = ON = Fog generator in SERVICE mode
(Active Security means that all relay’s are electrically
activated in rest position).
IMPORTANT:
When changing position on the dipswitch, you need to
turn OFF the power, wait 20 seconds and then turn ON the
power again, to make the change work.
EXCEPTION: Dipswitch 8, Service mode, works instantly.
When you turn dipswitch 8 ON, the fog generator will
enter SERVICE MODE, where all functions have been
disabled. When turning dipswitch 8 OFF again, the fog
generator will enter normal mode again.
The fog generator can be programmed to SHOOT fog in a dened number of seconds, when the
activation of the fog machine has been done.
Find the proper time setting, by calculating the room volume, and nd the equivalent time in these tables:
BOOT
USB
C PLUS PCB
W2
W1
N
L
FIRETIME
RESET
MAINS
FUSE
F4
1
2
3
4
5
6
7
8
ON OFF
9. Shooting Time Setting
page 14/20
