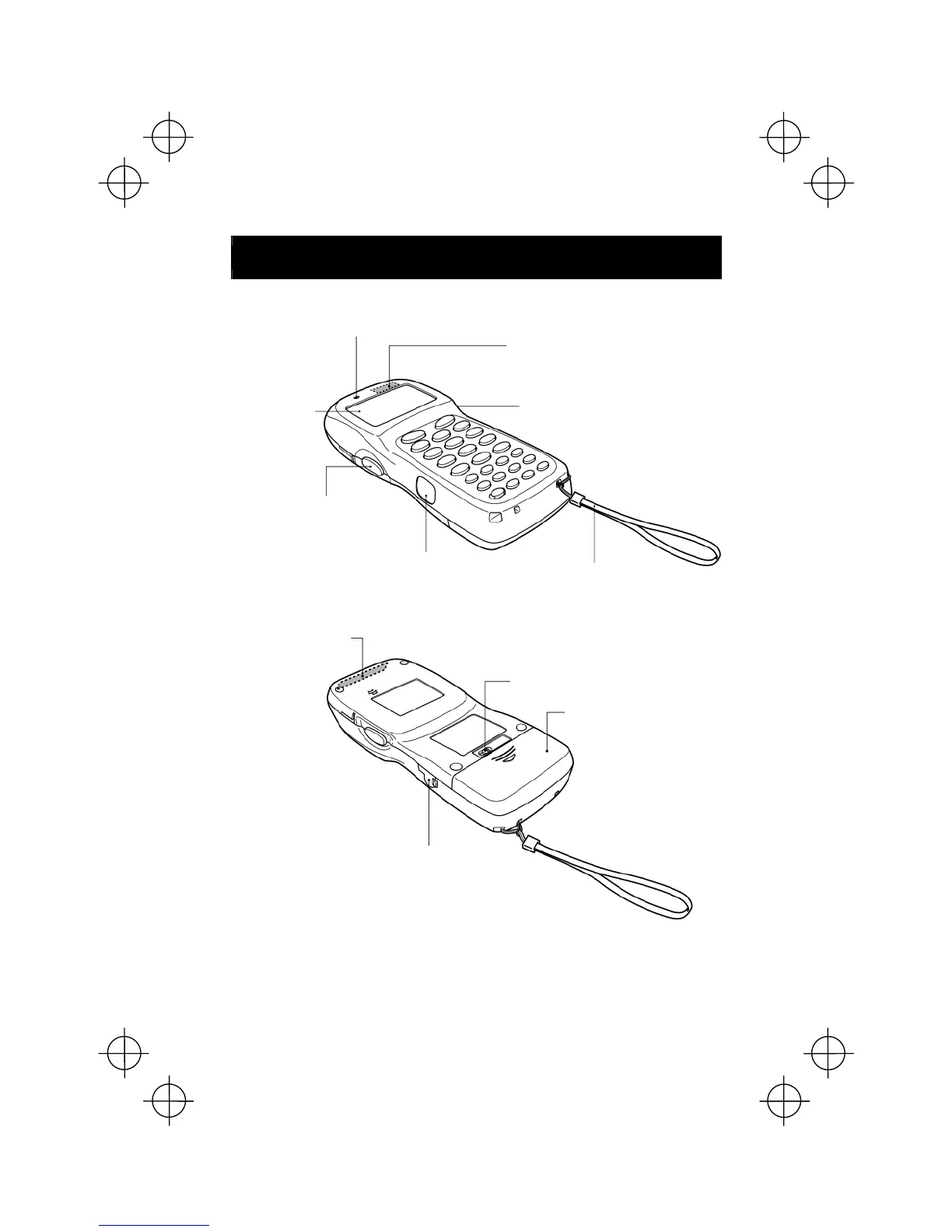

Components and Functions
Indication LED
Illuminates in green when the BHT has successfully read the bar codes.
Built-in antenna
Used for Bluetooth wireless communication.
Do not cover this by hand. Doing so may result
in communications failures.
Trigger switch (M4 key)
Press this switch to start
bar-code reading.
Liquid crystal
display (LCD)
Shows the
characters and
graphic patterns.
Trigger switch (M3 key)
Press this switch to start
bar-code reading.
Optical interface port
Used to exchange
data/programs with the host
computer via the computer's
integrated IR port or via the
optical communication unit
CU-8000.
Hand strap
Be sure to put your hand through
this strap to prevent you from
dropping the BHT accidentally.
Bar-code reading
window
Battery cover lock
Use this lock to lock/unlock the battery cover.
Battery cover
Remove this cover to replace
batteries.
Connector cover
Inside this cover is the
direct-connect interface port.
