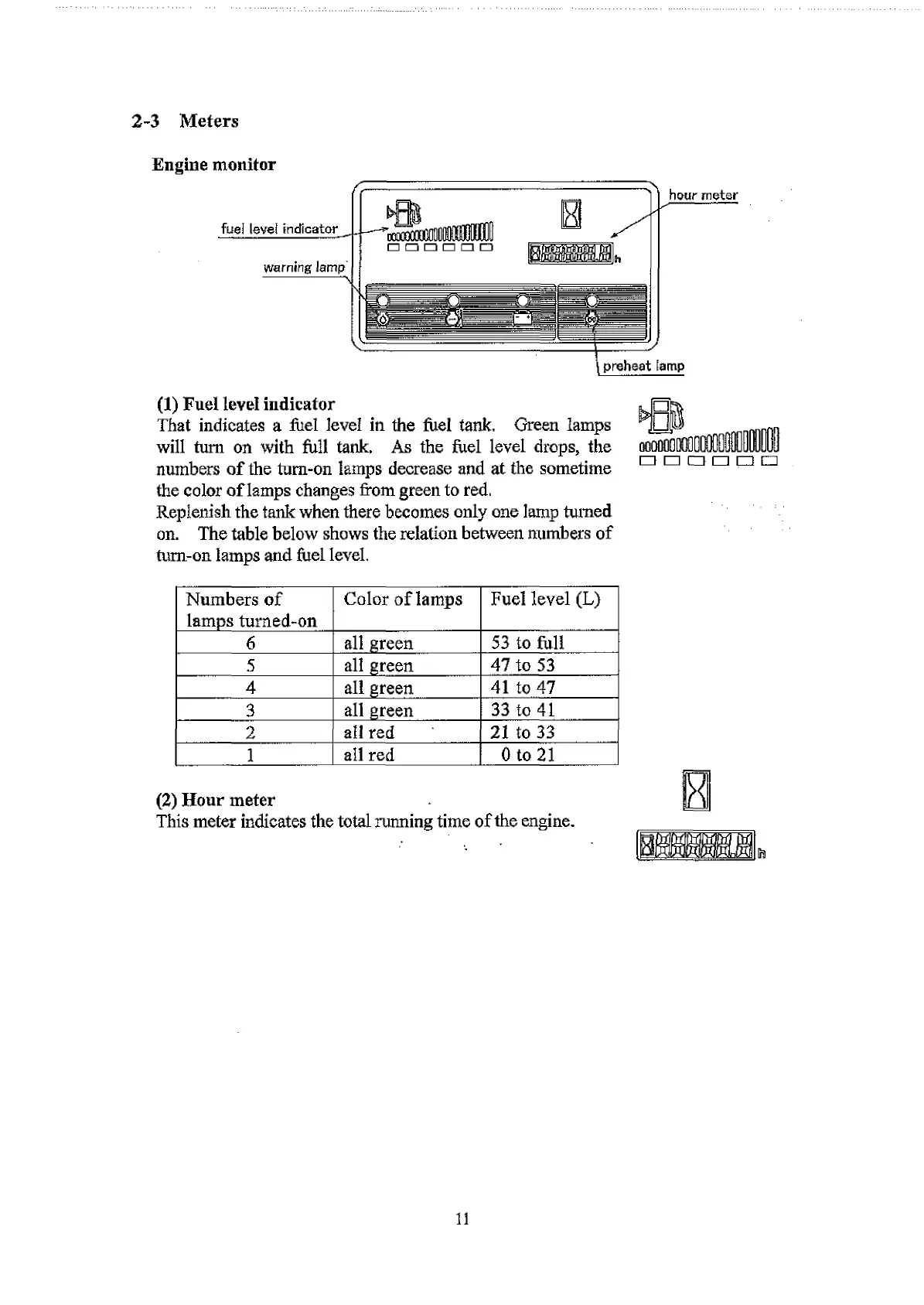

2-3 Meters
Engine monitor
hour meter
(1) Fuel level indicator
That indicates a fuel level in the fuel tank. Green lamps
will turn on with full tank. As the fuel level drops, the
numbers of the turn-on lamps decrease and at the sometime
the color of lamps changes from green to red.
Replenish the tank when there becomes only one lamp turned
on. The table below shows the relation between numbers of
turn-on lamps and fuel level.
oooooofflDfflOOO
П П П П □ □
Numbers of
lamps turned-on
Color of lamps
Fuel level (L)
6
all green
53 to full
5
all green
47 to 53
4
all green
41 to 47
3
all green
33 to 41
2
all red
21 to 33
1
all red
0 to 21
(2) Hour meter
This meter indicates the total running time of the engine.
ЩШшБЩ
и
