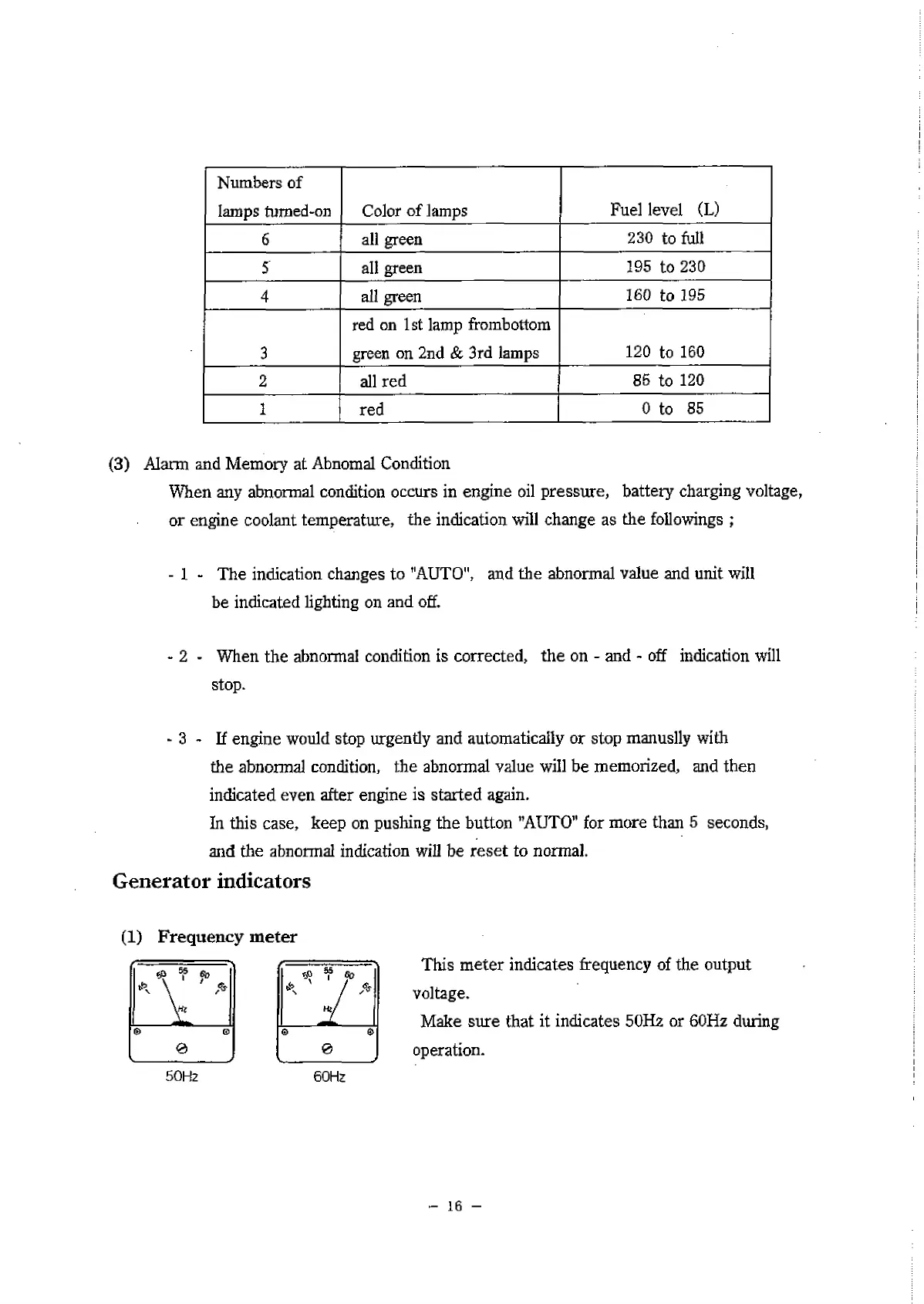

Numbers of
lamps tumed-on Color of lamps
Fuel level (L)
6
all green
230 to full
5
all green
195 to 230
4
all green
160 to 195
3
red on 1st lamp frombottom
green on 2nd & 3rd lamps
120 to 160
2 all red
85 to 120
1
red
0 to 85
(3) Alarm and Memory at Abnomal Condition
When any abnormal condition occurs in engine oil pressure, battery charging voltage,
or engine coolant temperature, the indication will change as the followings ;
- 1 - The indication changes to "AUTO", and the abnormal value and unit will
be indicated lighting on and off.
- 2 - When the abnormal condition is corrected, the on - and - off indication will
stop.
- 3 - If engine would stop urgently and automatically or stop manuslly with
the abnormal condition, the abnormal value will be memorized, and then
indicated even after engine is started again.
In this case, keep on pushing the button "AUTO" for more than 5 seconds,
and the abnormal indication will be reset to normal.
Generator indicators
(1) Frequency meter
This meter indicates frequency of the output
voltage.
Make sure that it indicates 50Hz or 60Hz during
operation.
60Hz
- 16 -
