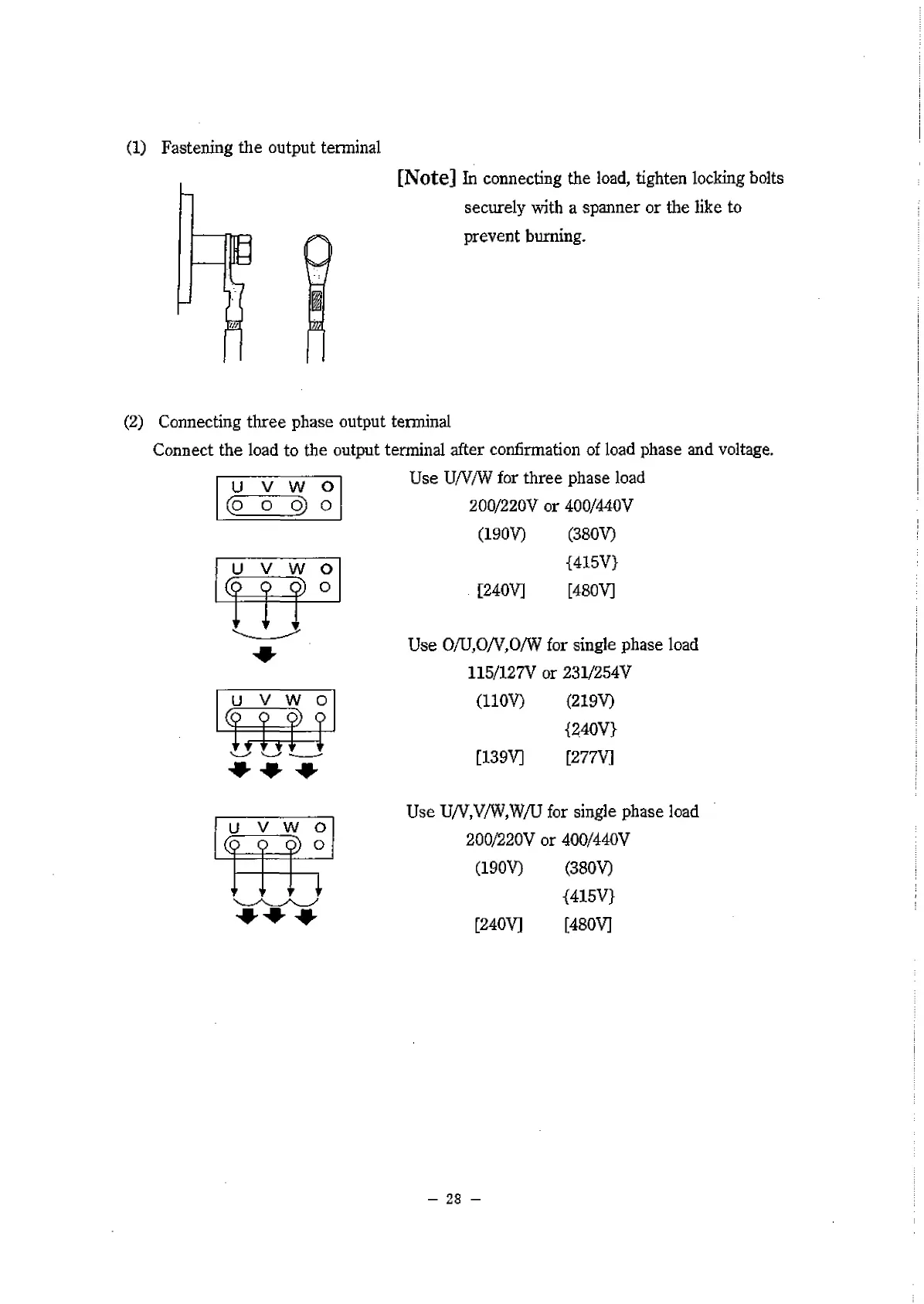

(1) Fastening the output terminal
[Note] In connecting the load, tighten locking bolts
securely with a spanner or the like to
prevent burning.
(2) Connecting three phase output terminal
Connect the load to the output terminal after confirmation of load phase and voltage.
Use U/V/W for three phase load
200/220V or 400/440V
(190V) (380V)
{415V}
[240V] [480V]
u
V
w
о
(O
о
О)
О
и
V
w о
(9
о
9)
о
U V w о
Ш
Use 0/U,0/V,0/W for single phase load
115/12 7V or 231/254V
(110V) (219V)
{240V}
[139V] [277V]
и V W о
ft
) с
?) о
*
' \ • '
1
Use U/V,V/W,W/U for single phase load
200/220V or 400/440V
(190V) (380V)
{415V}
[240V] [480V]
i
