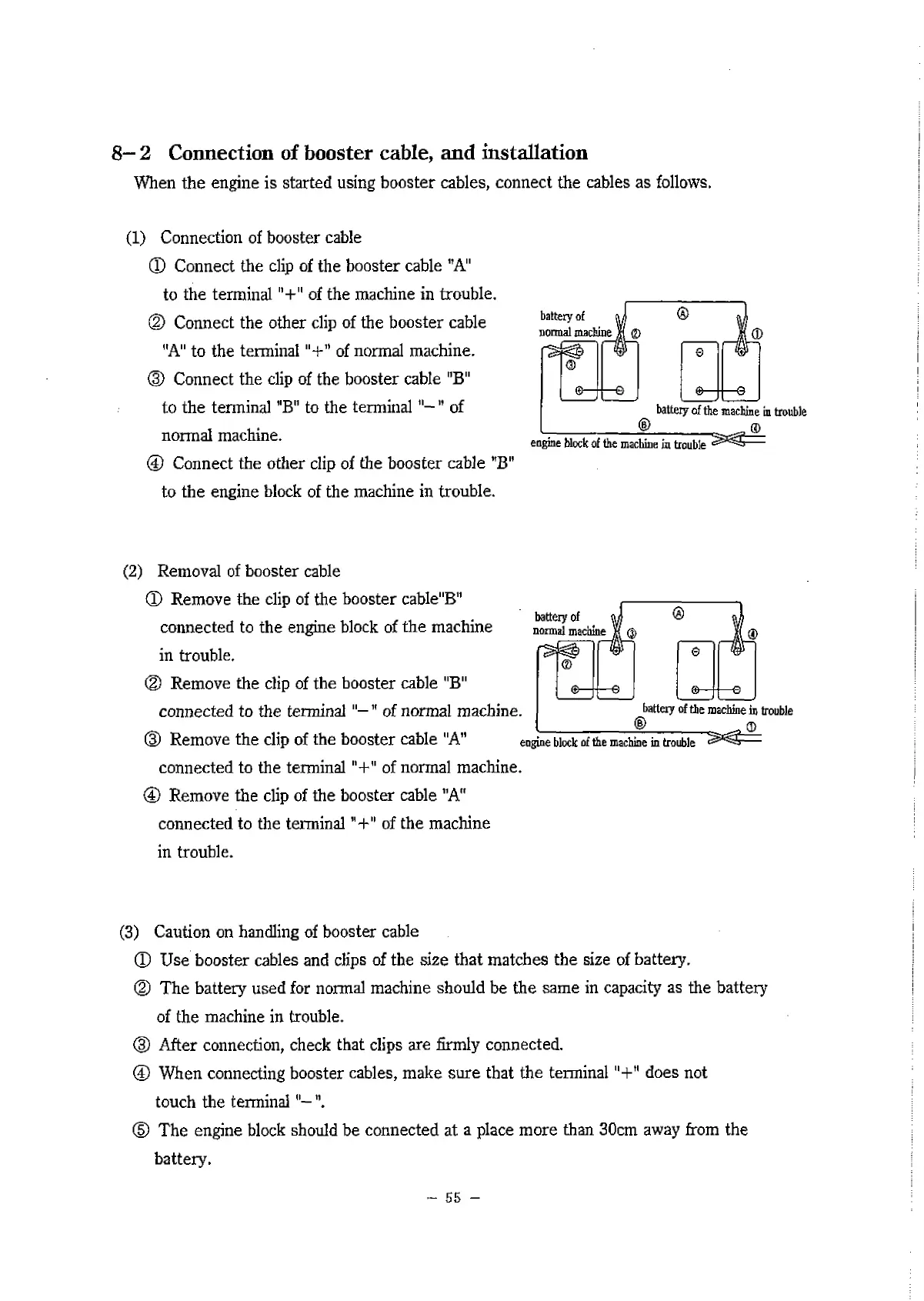

8 - 2 Connection of booster cable, and installation
When the engine is started using booster cables, connect the cables as follows.
(1) Connection of booster cable
ф Connect the clip of the booster cable "A"
to the terminal"+" of the machine in trouble.
© Connect the other clip of the booster cable
'A" to the terminalof normal machine.
(3) Connect the clip of the booster cable "B"
to the terminal "В" to the terminal" of
normal machine.
© Connect the other clip of the booster cable "B"
to the engine block of the machine in trouble.
battery of
normal machine
engine block of the machine in trouble
battery of the machine in trouble
® _ ®
battery of
normal machine
(2) Removal of booster cable
CD Remove the clip of the booster cable'B"
connected to the engine block of the machine
in trouble.
(D Remove the clip of the booster cable "B"
connected to the terminal" of normal machine.
® Remove the clip of the booster cable "A " engine block of the machine in trouble
connected to the terminal"+" of normal machine.
© Remove the clip of the booster cable ’A"
connected to the terminal"+" of the machine
in trouble.
©
battery of the machine in trouble
© _ (D
(3) Caution on handling of booster cable
ф Use booster cables and clips of the size that matches the size of battery.
© The battery used for normal machine should be the same in capacity as the battery
of the machine in trouble.
© After connection, check that clips are firmly connected.
© When connecting booster cables, make sure that the terminal"+" does not
touch the terminal".
© The engine block should be connected at a place more than 30cm away from the
battery.
~ 55 -
