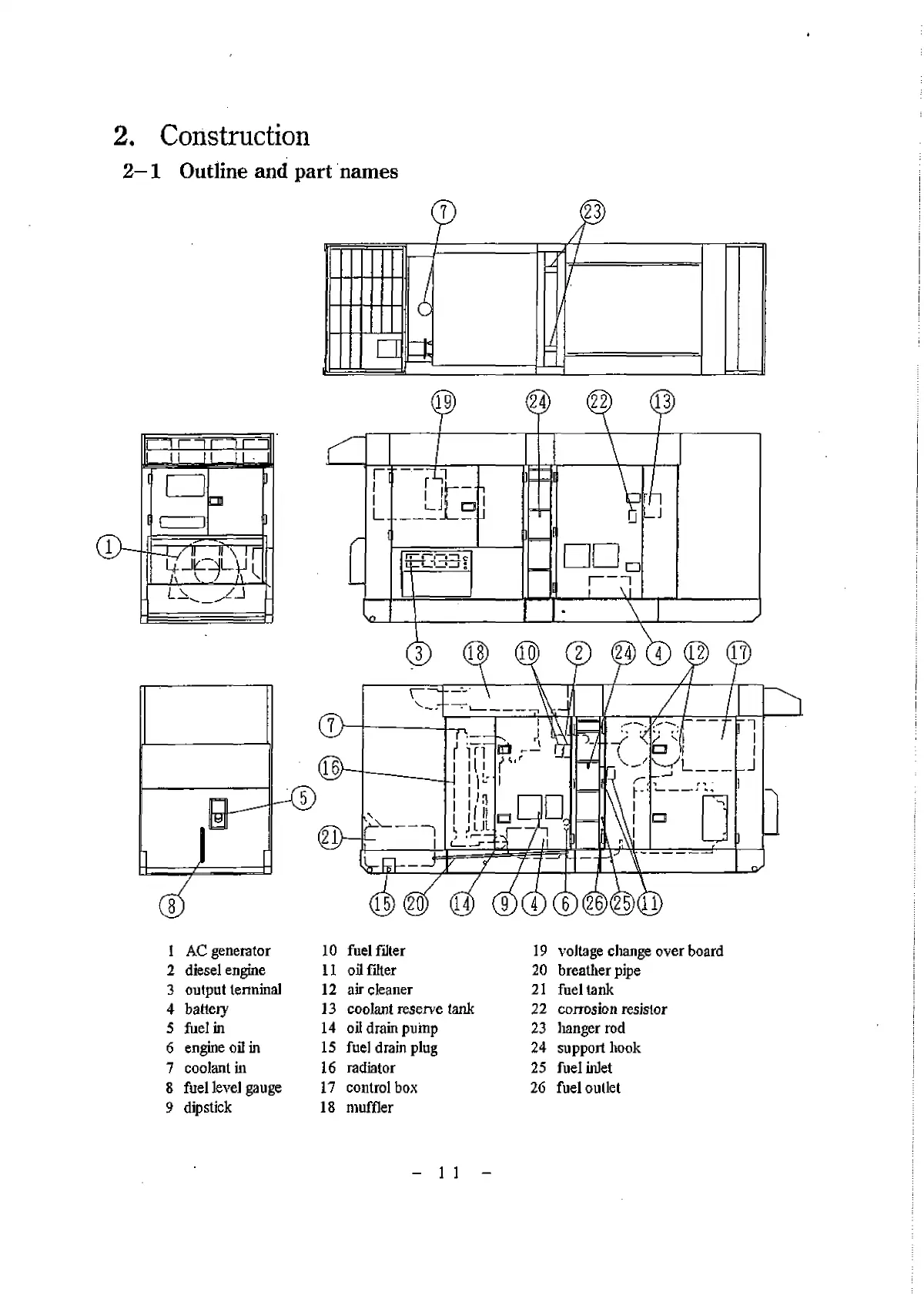

2. Construction
2-1 Outline and part names
I
AC generator 10 fuel filter 19
voltage change over board
2 diesel engine
11 ofl filter
20
breather pipe
3
output terminal 12 air cleaner 21
fuel tank
4 battery 13 coolant reserve tank
22
corrosion resistor
5 fuel in 14 oil drain pump
23
hanger rod
6
engine oil in
15 fuel drain plug 24
support hook
7 coolant in
16 radiator 25
fuel inlet
8
fuel level gauge 17 control box 26
fuel outlet
9 dipstick
18 muffler
- 1 1 -
