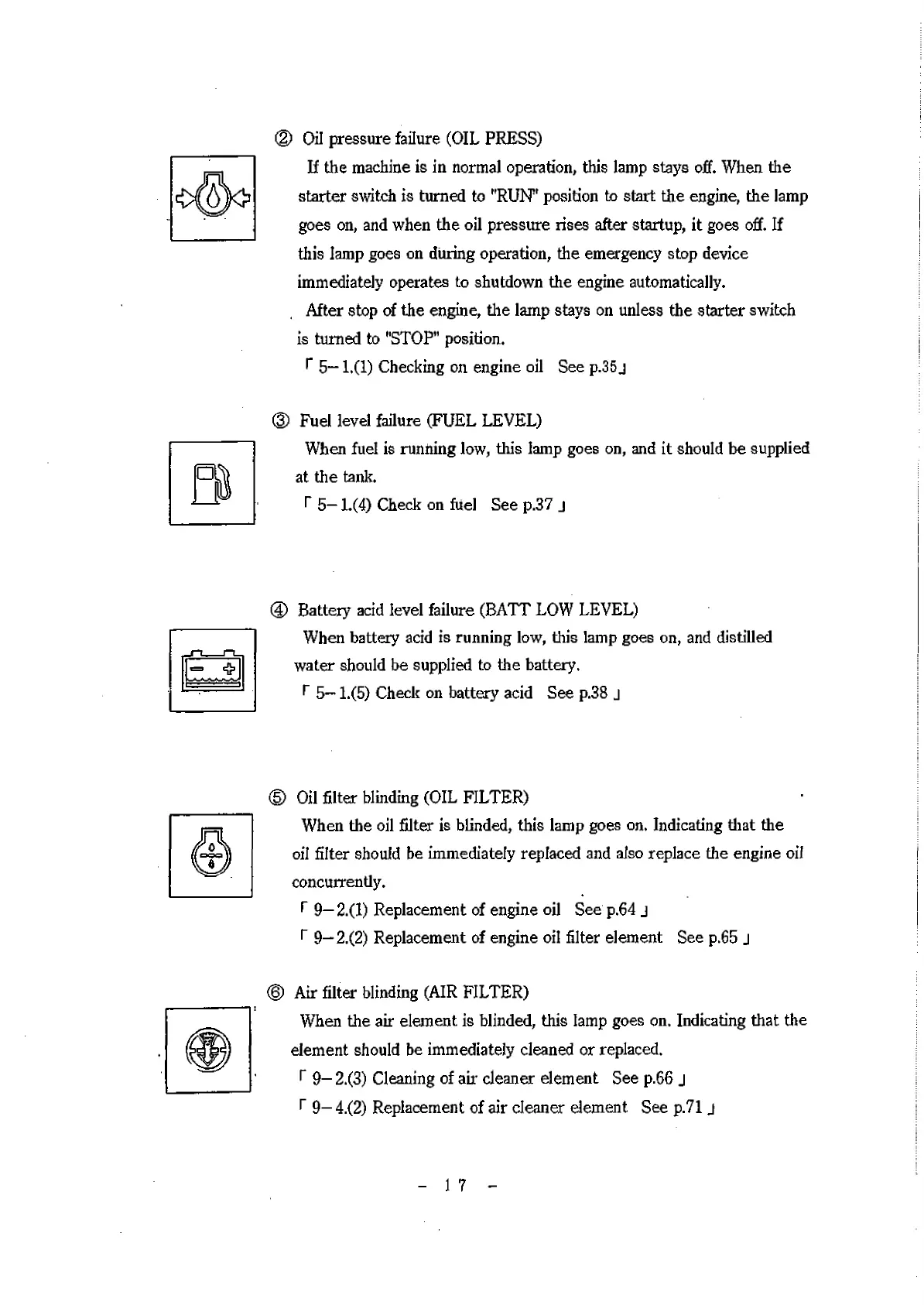

ф Oil pressure failure (OIL PRESS)
If the machine is in normal operation, this lamp stays off. When the
starter switch is turned to "RUN” position to start the engine, the lamp
goes on, and when the oil pressure rises after startup, it goes off. If
this lamp goes on during operation, the emergency stop device
immediately operates to shutdown the engine automatically.
After stop of the engine, the lamp stays on unless the starter switch
is turned to "STOP" position.
Г 5—1.(1) Checking on engine oil See p.35 j
ф Fuel level failure (FUEL LEVEL)
When fuel is running low, this lamp goes on, and it should be supplied
at the tank.
Г 5—1.(4) Check on fuel See p.37 j
(D Battery acid level failure (ВАТТ LOW LEVEL)
When battery acid is running low, this lamp goes on, and distilled
water should be supplied to the battery.
Г 5—1.(5) Check on battery acid See p.38 j
© Oil filter blinding (OIL FILTER)
When the oil filter is blinded, this lamp goes on. Indicating that the
oil filter should be immediately replaced and also replace the engine oil
concurrently.
r 9— 2.(1) Replacement of engine oil See p.64 j
r 9—2.(2) Replacement of engine oil filter element See p.65 j
© Air filter blinding (AIR FILTER)
When the air element is blinded, this lamp goes on. Indicating that the
element should be immediately cleaned or replaced.
r 9 - 2.(3) Cleaning of air cleaner element See p.66 J
r 9-4.(2) Replacement of air cleaner element See p.71 j
-17 -
