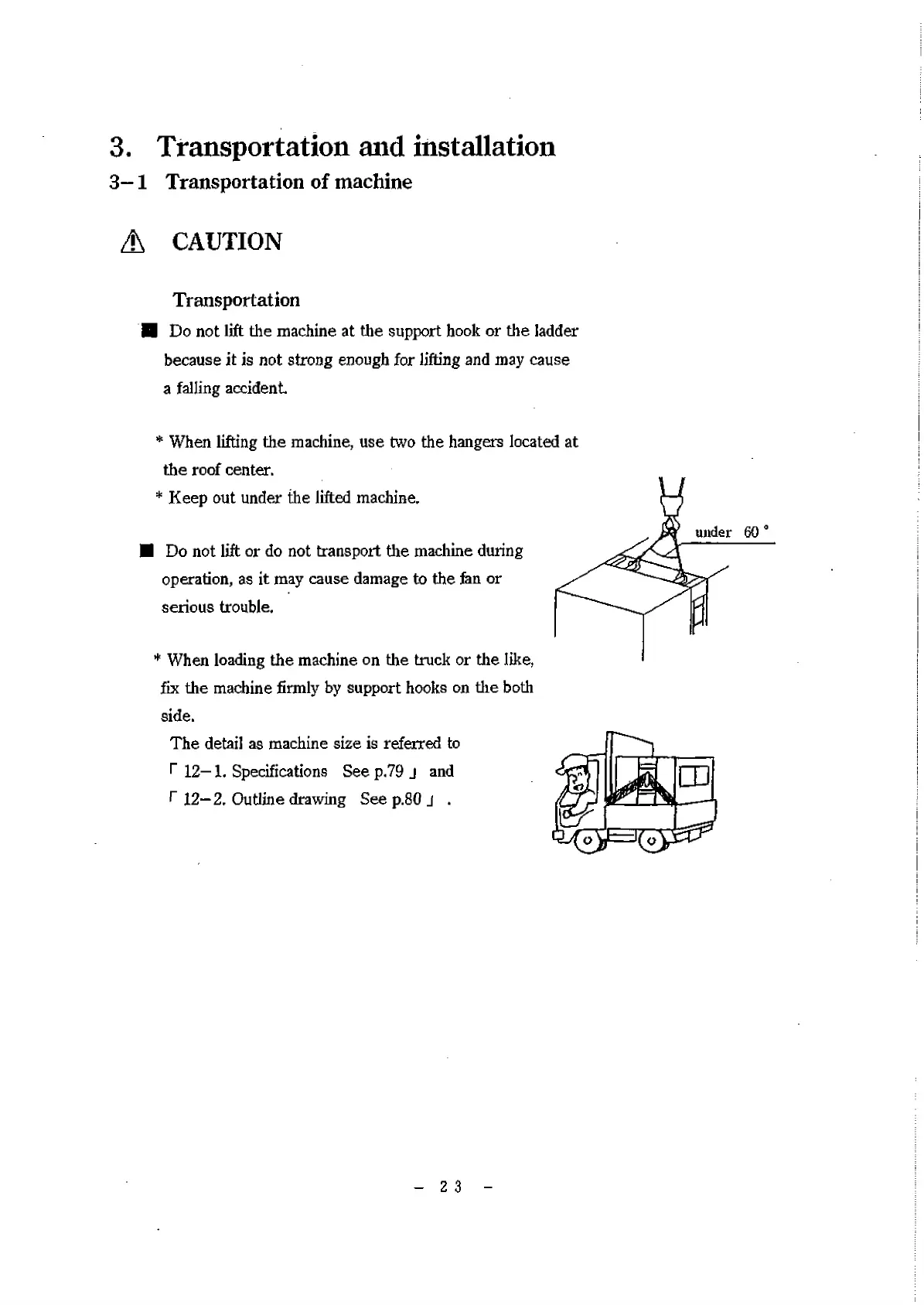

3. Transportation and installation
3— 1 Transportation of machine
A CAUTION
Transportation
■ Do not lift the machine at the support hook or the ladder
because it is not strong enough for lifting and may cause
a falling accident
* When lifting the machine, use two the hangers loca
the roof center.
* Keep out under the lifted machine.
Ш Do not lift or do not transport the machine during
operation, as it may cause damage to the fan or
serious trouble.
* When loading the machine on the truck or the like,
fix the machine firmly by support hooks on the both
side.
The detail as machine size is referred to
r 12-1. Specifications See p.79 j and
Г 12-2. Outline drawing See p.80 j .
-23 -
