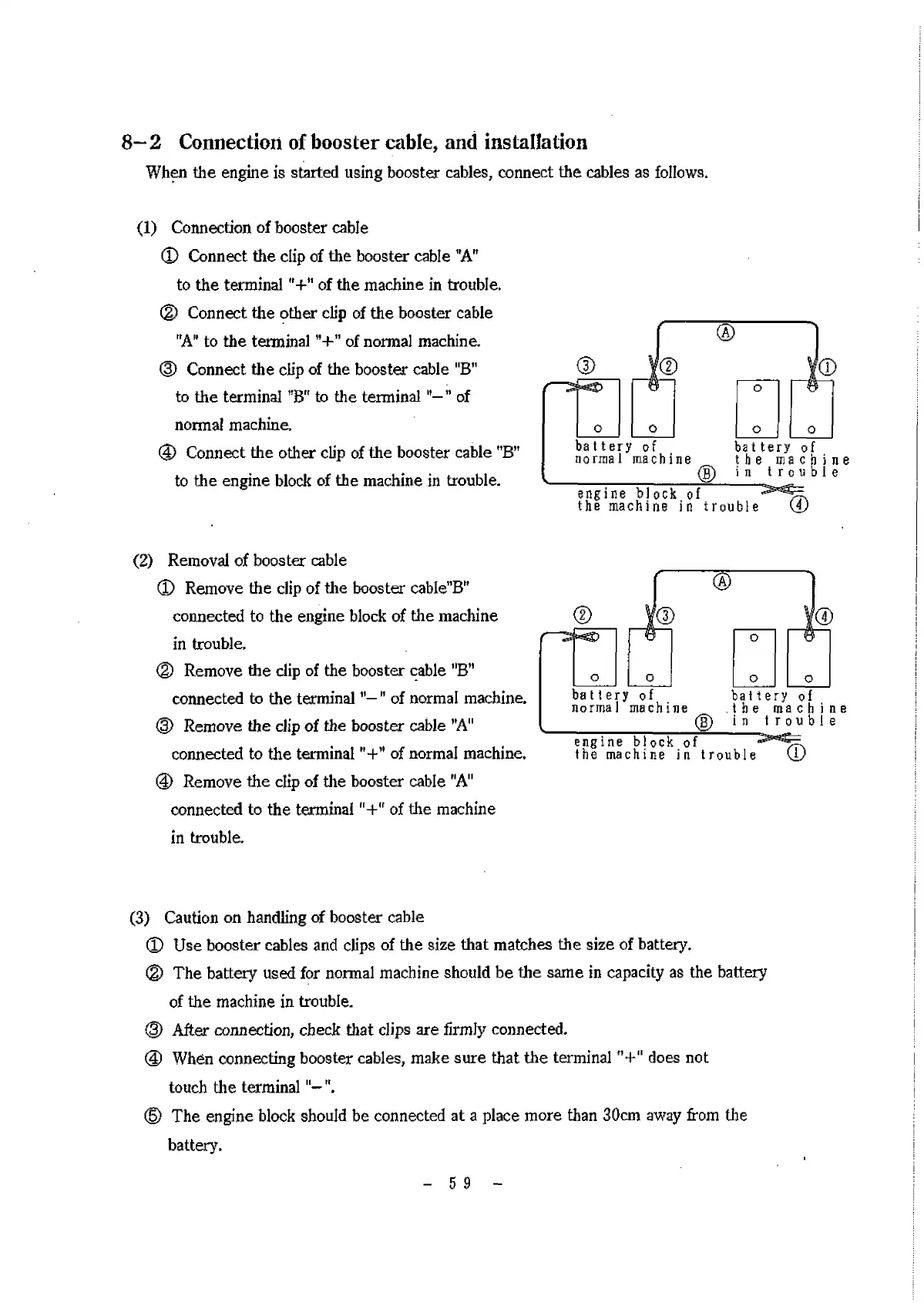

8-2 Connection of booster cable, and installation
When the engine is started using booster cables, connect the cables as follows.
(1) Connection of booster cable
Ф Connect the clip of the booster cable "A"
to the terminal"+" of the machine in trouble.
Ф Connect the other clip of the booster cable
"A" to the terminal"+" of normal machine.
© Connect the clip of the booster cable "B"
to the terminal "B" to the terminalof
normal machine.
ф Connect the other clip of the booster cable "B"
to the engine block of the machine in trouble.
battery of
normal machine
®
battery of
the machine
in trouble
engine block of
the machine in trouble
(2) Removal of booster cable
Ф Remove the clip of the booster cable"B"
connected to the engine block of the machine
in trouble.
ф Remove the clip of the booster cable "B"
connected to the terminal " of normal machine.
ф Remove the clip of the booster cable ’A"
connected to the terminal of normal machine.
® Remove the clip of the booster cable "A"
connected to the terminal "+,r of the machine
in trouble.
ba 11 ery of
normal machine
battery of
the machine
in trouble
engine block of
the machine in trouble
(3) Caution on handling of booster cable
Ф Use booster cables and clips of the size that matches the size of battery.
Ф The battery used for normal machine should be the same in capacity as the battery
of the machine in trouble.
ф After connection, check that clips are firmly connected.
@ When connecting booster cables, make sure that the terminal "+" does not
touch the terminal".
© The engine block should be connected at a place more than 30cm away from the
battery.
-59 -
