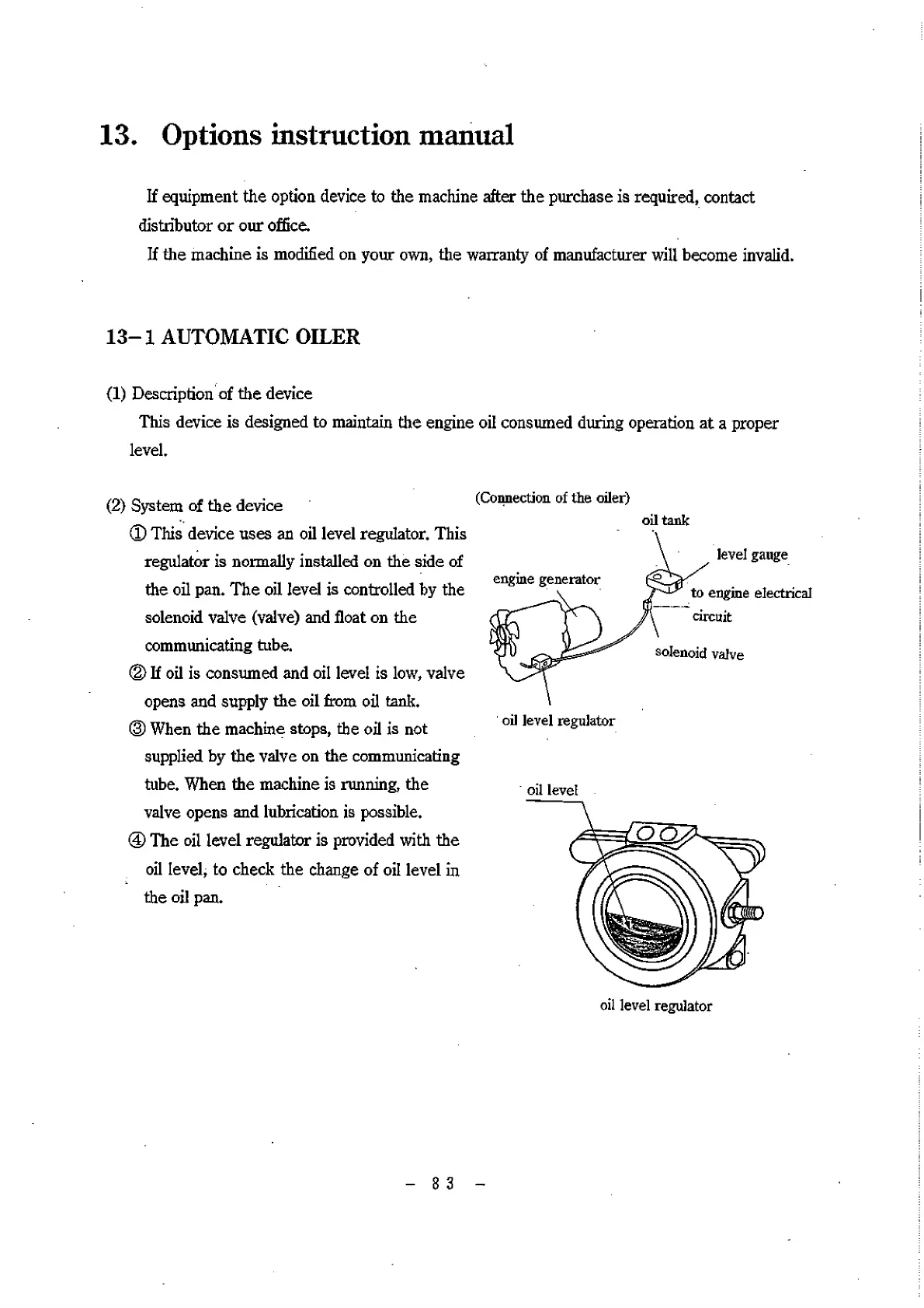

13. Options instruction manual
If equipment the option device to the machine after the purchase is required, contact
distributor o r our office.
If the machine is modified on your own, the warranty o f manufacturer will becom e invalid.
1 3 - 1 A U TO M A T IC O ILER
(1) Description o f the device
This device is designed to maintain the engine oil consum ed during operation at a proper
level.
(2) System of the device
<D This device uses an oil level regulator. This
regulator is normally installed on the side of
the oil pan. T h e oil level is controlled by the
solenoid valve (valve) and float on the
communicating tube.
(2) И oil is consum ed and oil level is low, valve
opens and supply the oil from oil tank.
© When the machine stops, the oil is not
supplied by the valve on the communicating
tube. When the machine is running, the
valve opens and lubrication is possible.
(D The oil level regulator is provided with the
oil level, to check the change o f oil level in
the oil pan.
(Connection of the oiler)
oil tank
oil level
oil level regulator
-83-
