[Note]
*1 This mode (switch 1 at ON) is given precedence to other switches 2 to 8.

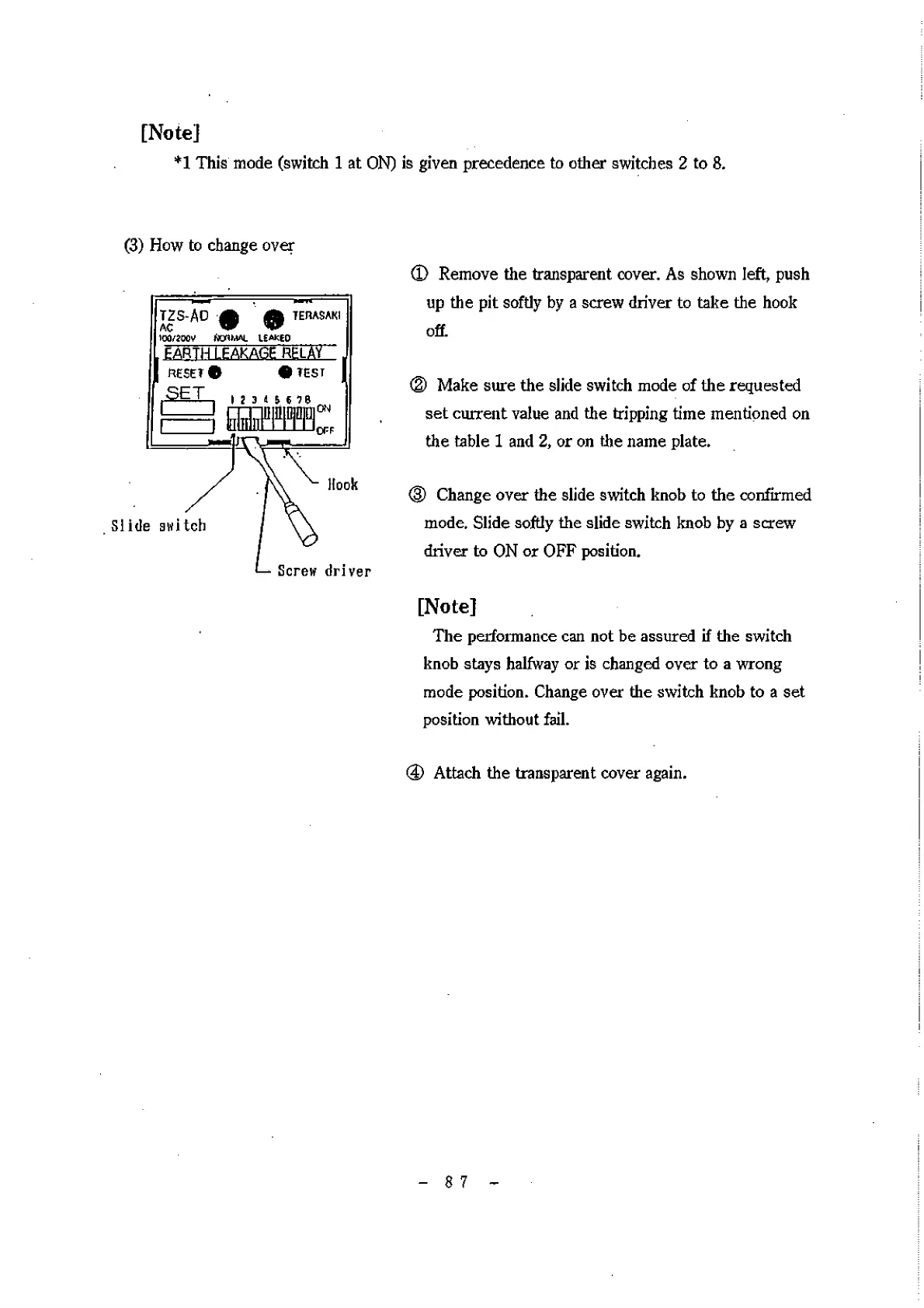

(3) How to change over
TZ5-AD ф ф ТЕПЛ5ЛК1
ftO flMAL l£ * K E 0
EARTH LEAKAGE RELAY
flESET® 9 TEST
(D Remove the transparent cover. As shown left, push
up the pit softly by a screw driver to take the hook
off.
Ф Make sure the slide switch mode of the requested
set current value and the tripping time mentioned on
the table 1 and 2, or on the name plate.
® Change over the slide switch knob to the confirmed
mode. Slide softly the slide switch knob by a screw
driver to ON or OFF position.
[Note]
The performance can not be assured if the switch
knob stays halfway or is changed over to a wrong
mode position. Change over the switch knob to a set
position without fail.
® Attach the transparent cover again.
-87-
