Denyo DCA-60ESI2 - 2. Construction; 2-2 Operating panel, control panel and part names

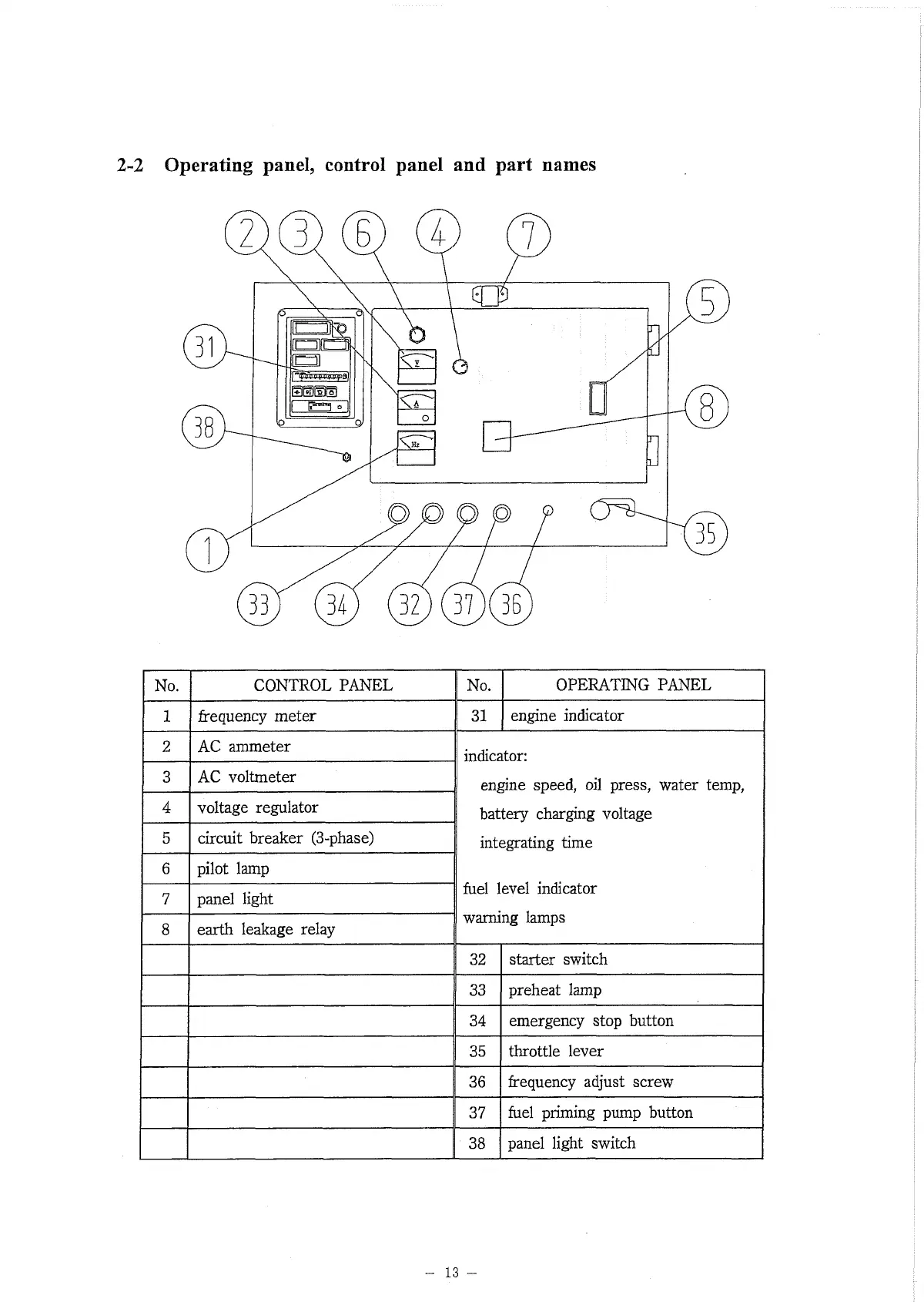

2-2 Operating panel, control panel and part names
No.
CONTROL PANEL No.
OPERATING PANEL
1
frequency meter 31
engine indicator
2 AC ammeter
indicator:
3
AC voltmeter
engine speed, oil press, water temp,
4
voltage regulator
battery charging voltage
5 circuit breaker (3-phase)
integrating time
6
pilot lamp
7
panel light
fuel level indicator
warning lamps
8 earth leakage relay
32 starter switch
33
preheat lamp
34
emergency stop button
35 throttle lever
36
frequency adjust screw
37
fuel priming pump button
38
panel light switch
