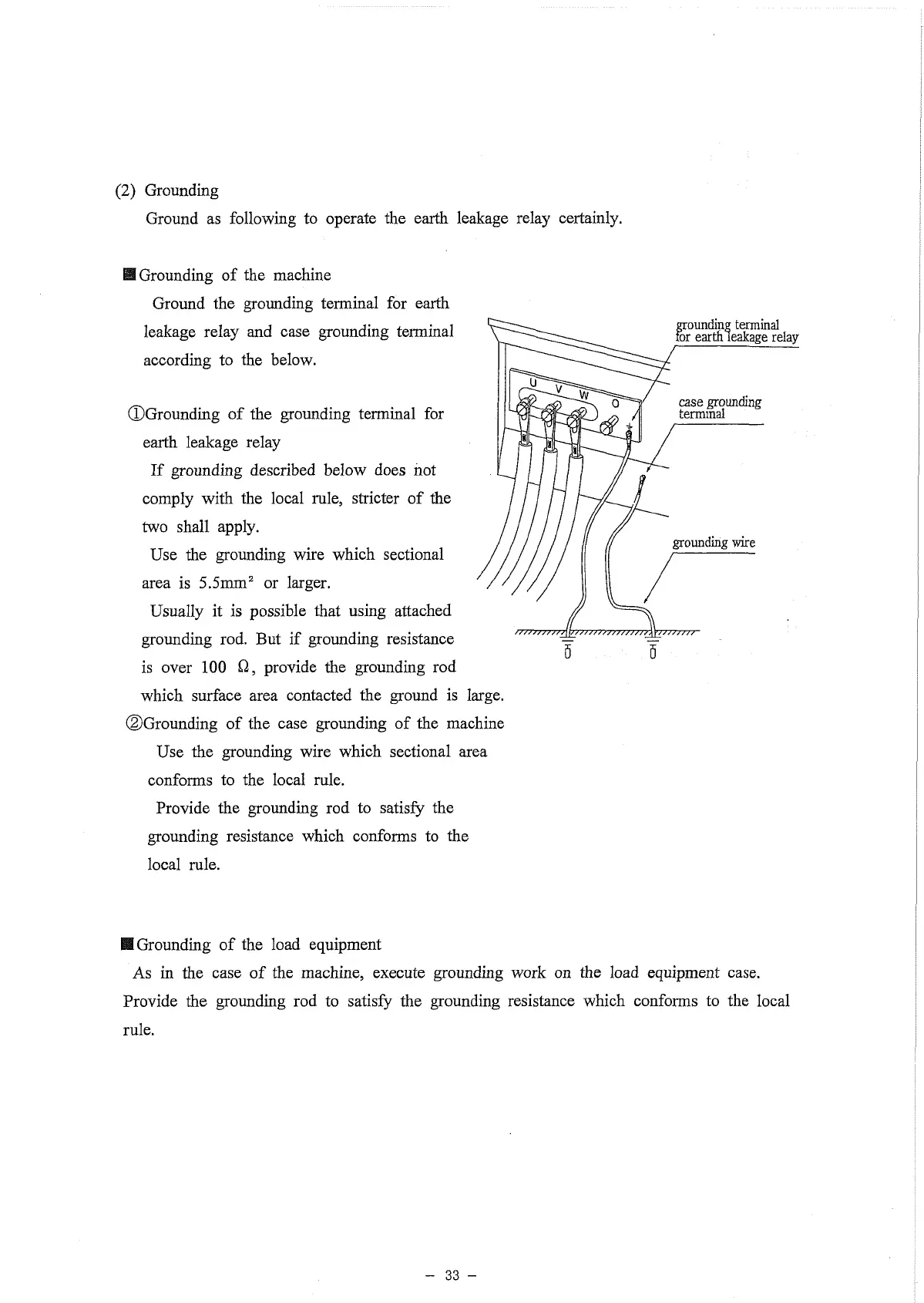

(2) Grounding
Ground as following to operate the earth leakage relay certainly.
И Grounding of the machine
Ground the grounding terminal for earth
leakage relay and case grounding terminal
according to the below.
grounding terminal
for earth leakage relay
©Grounding of the grounding terminal for
earth leakage relay
If grounding described below does not
comply with the local rule, stricter of the
two shall apply.
Use the grounding wire which sectional
area is 5.5mm2 or larger.
case grounding
terminal
grounding wire
Usually it is possible that using attached
grounding rod. But if grounding resistance
is over 100 Q, provide the grounding rod
which surface area contacted the ground is large.
©Grounding of the case grounding of the machine
Use the grounding wire which sectional area
conforms to the local rule.
Provide the grounding rod to satisfy the
grounding resistance which conforms to the
local rule.
■ Grounding of the load equipment
As in the case of the machine, execute grounding work on the load equipment case.
Provide the grounding rod to satisfy the grounding resistance which conforms to the local
rule.
