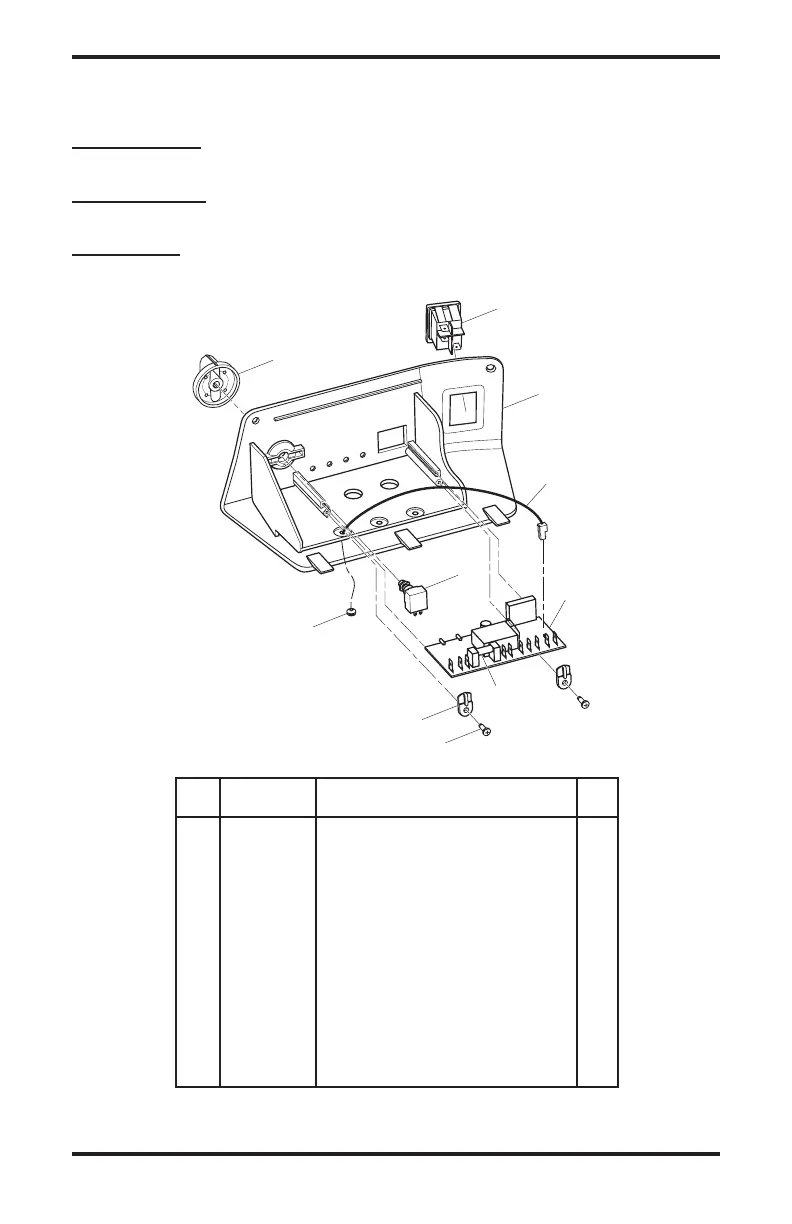

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST
CONTROL COVER ASSEMBLY FOR MODELS:
125T MODELS: RHD125AT, RL125AT, RE125AT, PKHD125T, TKU125T,
UKU125T, RD125T
170T MODELS: RHD170AT, RL170AT, RE170AT, PKHD170T, TKU170T,
UKU170T, RD170T
200T Models: RHD200AT, RE200AT, RH200AT, RL200AT, PKHD200T,
TKU200T, UKU200T, RD200T
8
5
1
2
4
3
6
11
7
10
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 108461-02 Control Cover 1
2 113606-01 Temperature Sensor 1
3 113607-01 Thermostat Control 1
(Includes lock washer and nut)
4 116111-01 Ignition Control 1
5 108480-01 Knob 1
6 113379-01 Screw, #8 Self Tapping 2
7 113378-01 Plastic Clip 2
8 108394-01 ON/OFF Switch w/Cover 1
9 M9900-170 Wire Assembly (Not Shown) 1
10 113339-01 Rubber Grommet 1
11 113752-01 Fuse, 6.3 Amp Time Lag 5x20 mm 1
