PARTS LIST
200T Models
PARTS LIST
200T Models
M200T, RHD200T
RE200T, RH200T
RL200T

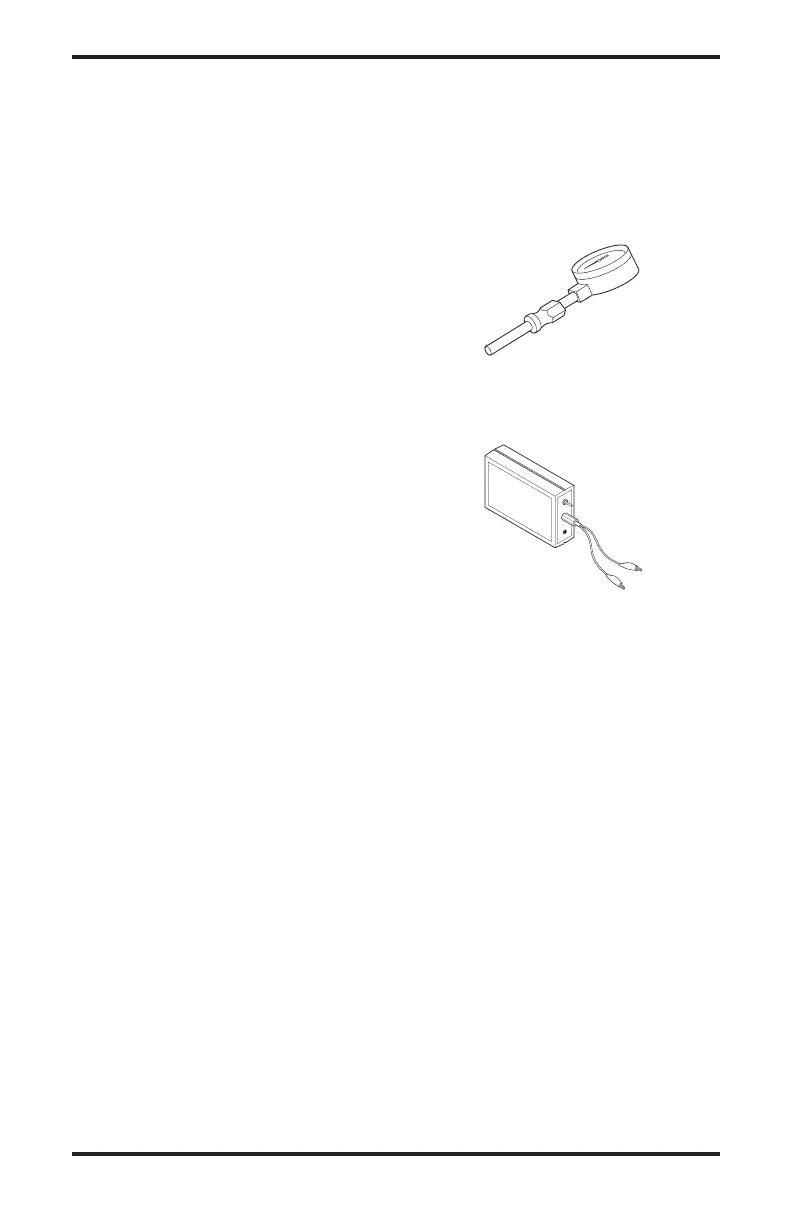

This list contains replaceable parts used in your heater. When ordering parts, be sure to provide the
correct model and serial numbers (from the model plate), then the part number and description of the
desired part.
KEY PART
NO. NUMBER DESCRIPTION QTY.
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 107353-10 Upper Shell (Service Part Will
Be Black) 1
2 108631-01 Screw, #10-16 x 1" 3
3 098512-69 Combustion Chamber 1
4 107791-01 Photocell Bracket 1
5 M10908-2 Screw, #6-32 x 3/8" 2
6 M16656-21 Photocell Assembly 1
7
∆ Burner Head Assembly 1
7-1 100735-13 Nozzle Assembly 1
7-2 M10659-1 Nozzle Washer 2
7-3 M10809-1 Nozzle Spring 1
7-4 M8882 Nozzle Sleeve 1
7-5 107272-01 Retaining Ring 1
7-6 102336-03 Nozzle Adapter Bracket 1
7-7 102548-07 Ignitor Kit 1
7-8 103347-01 Belleville Washer 1
7-9 M10908-75 Screw, #6-32 x .88 1
7-10 107273-01 Nozzle Adapter 1
7-11 M50820-02 Barb Fitting 1
8 M11084-26 Screw, #10-16 x 3/8" 2
9 102042-01 Fan 1
10
∆ Motor and Pump Assembly 1
10-1 102001-27 Motor 1
10-2 079975-03 Pump Body 1
10-3 FHPF3-6C Screw, #10-32 x 3/4" 2
10-4 M22009** Rotor Insert 1
10-5 M22456-2** Pump Rotor 1
10-6 M50545 Pump End Cover 1
10-7 M12179*** Intake Filter 1
10-8 M16545 Filter End Cover 1
10-9 M8940
∞ Steel Ball, 1/4" Diameter 1
10-10 M10993-1
∞ Relief Spring 1
10-11 M27694
∞ Adjusting Screw 1
10-12 M22997
∞ Plug 1
10-13 M12461-31 Screw, #10-32 x 1" 4
10-14 M12244-1*** Output Filter 1
10-15 M11637*** Lint Filter 1
10-16 M50820-02 Barb Fitting 1
10-17 M8643-2** Blade 4
10-18 M12461-32 Screw, #10-32 x 1
1
/8"6
11 M50631 Rubber Bumper 2
12 101206-01 Motor Mounting Bracket 1
13 M11084-29 Screw, #10-16 x 3/4" 11
14 104068-02 Ignition Control Assembly 1
15 NTC-4C Hex Lock Nut, 1/4-20 2
16 108460-01 Fan Guard 1
17 M27417 Drain Plug (Includes “o” Ring) 1
18 108457-01 Shroud 1
19 M51345-04 Fuel Line 1
20 106896-01*** Fuel Filter 1
21 M51151-02 Fuel Line Tube 1
22 M10990-3 Rubber Bushing 1
23 M50814-03 Airline 1
24 107353-11 Lower Shell (Service Part Will
Be Black) 1
25 M50104-06 Bushing 2
26 M50104-01 Bushing 1
27 M12461-51 Screw, #10-16 x 1/2" 1
28 108708-01 Clip Nut 13
29 M10908-14 Screw, #8-32 x 1/4" 1
30 108088-12 Fuel Tank 1
31 097663-03 Fuel Cap/Gauge 1
32 108668-01 P.C. Board Support 5
33 108394-01 ON/OFF Switch 1
34 107994-01 Power Cord 1
35 108461-01 Control Cover 1
36 M9900-170 Wire Assembly, Black 2
37 104460-01 Knob 1
38 104458-01 Thermostat 1
39 108458-01 Rear Panel 1
40 M12461-18 Screw, #8-32 x 7/8" 1
41 097785-08 Foam Gasket 1
42 108739-01 Filler Neck Screen 1
43 097467-02 Button Plug 1
44 M9900-197 Wire Assembly, Green 1
__
105880-02 Fuse
(Not Shown) 1
__
097785-09 T-stat Foam Gasket
(Not Shown) 1
∆ Not available as an assembly ∗∗∗ Included in Filter Kit (Part No. HA3017)
** Included in Rotor Kit (Part No. HA3005) ∞ Included in Pump Adjustment Kit (Part No. HA3020)
