Desa 200T User Manual

www.desatech.com
113170-01E
22
2
1
5
4
3
6

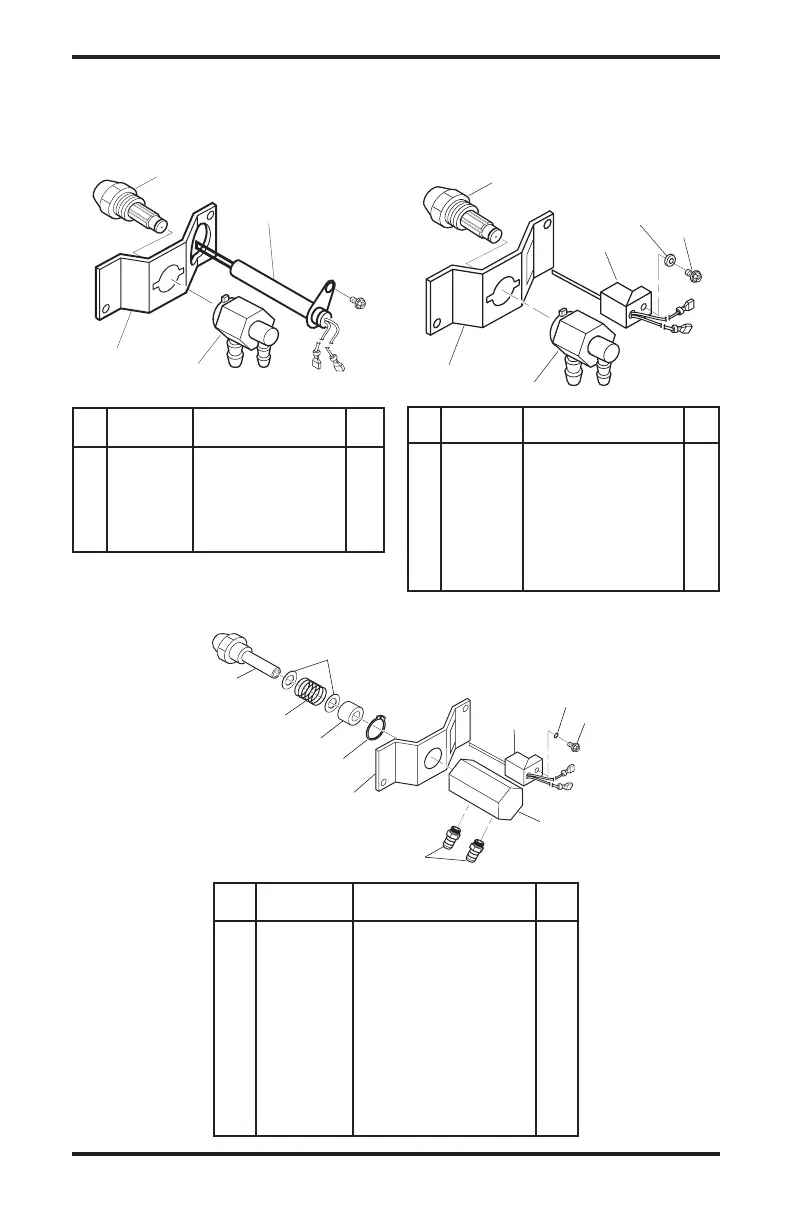

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 HA3027 Nozzle Assembly (125T) 1
HA3029
Nozzle Assembly (170T) 1
2 HA1000 Ignitor Kit 1
3 M10908-75 Screw 1
4 102336-01 Nozzle Adapter Bracket 1
5 104054-01 Nozzle Adapter 1
6 103347-01 Washer 1
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 100735-13 Nozzle Assembly 1
2 M10659-1 Nozzle Washer 2
3 M10809-1 Nozzle Spring 1
4 M8882 Nozzle Sleeve 1
5 107272-01 Retaining Ring 1
6 102336-03 Nozzle Adapter Bracket 1
7 HA1000 Ignitor Kit 1
8 103347-01 Belleville Washer 1
9 M10908-75 Screw, #6-32 x .88 1
10 107273-01 Nozzle Adapter 1
11 M50820-02 Barb Fitting 1
BURNER HEAD ASSEMBLY FOR 200T MODELS
1
8
7
3
4
5
6
2
11
10
9
BURNER HEAD ASSEMBLY FOR
125T MODELS WITH HA1000
IGNITOR AND 170T MODELS
2
1
3
4
BURNER HEAD ASSEMBLY FOR
125T MODELS WITH HA1100 IGNITOR
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 HA3027 Nozzle Assembly 1
2 HA1100 Ignitor Kit 1
3 102336-05 Nozzle Adapter
Bracket 1
4 104054-01 Nozzle Adapter 1
