- 10 - For more information, visit www.desatech.com
OUTSIDE AIR AND DAMPER HANDLE OPERATION
The damper handle, which opens and closes the damper blade,
is located in the upper front face of the fireplace. Pushing the
handle in to the left of the keyway slot will free the damper
blade to automatically open. Pushing the handle in to the right
will lock the damper blade closed (see figure 23).
The outside air kit handle is located at the left hand side of the
fireplace (see figure 23). Pulling the handle out will free the
outside air door to open. Pushing the handle in will lock the
door close.
FOR FURTHER OPERATING GUIDELINES,
INSTRUCTIONS AND WARRANTY INFORMATION,
PLEASE REFER TO YOUR HOMEOWNERS GUIDE
OR CONTACT YOUR AUTHORIZED DEALER.
TECHNICAL SERVICE
You may have questions about installation, operations, or
troubleshooting. If so, contact the Technical Service
Department at 1-866-672-6040. When calling, have the model
number of the fireplace ready.
WARNING: Risk of fire! Replace
rate with DESA
model 109911-01 grate only. This grate has been
desi
ned to keep the operation of
our fireplace safe
and efficient.

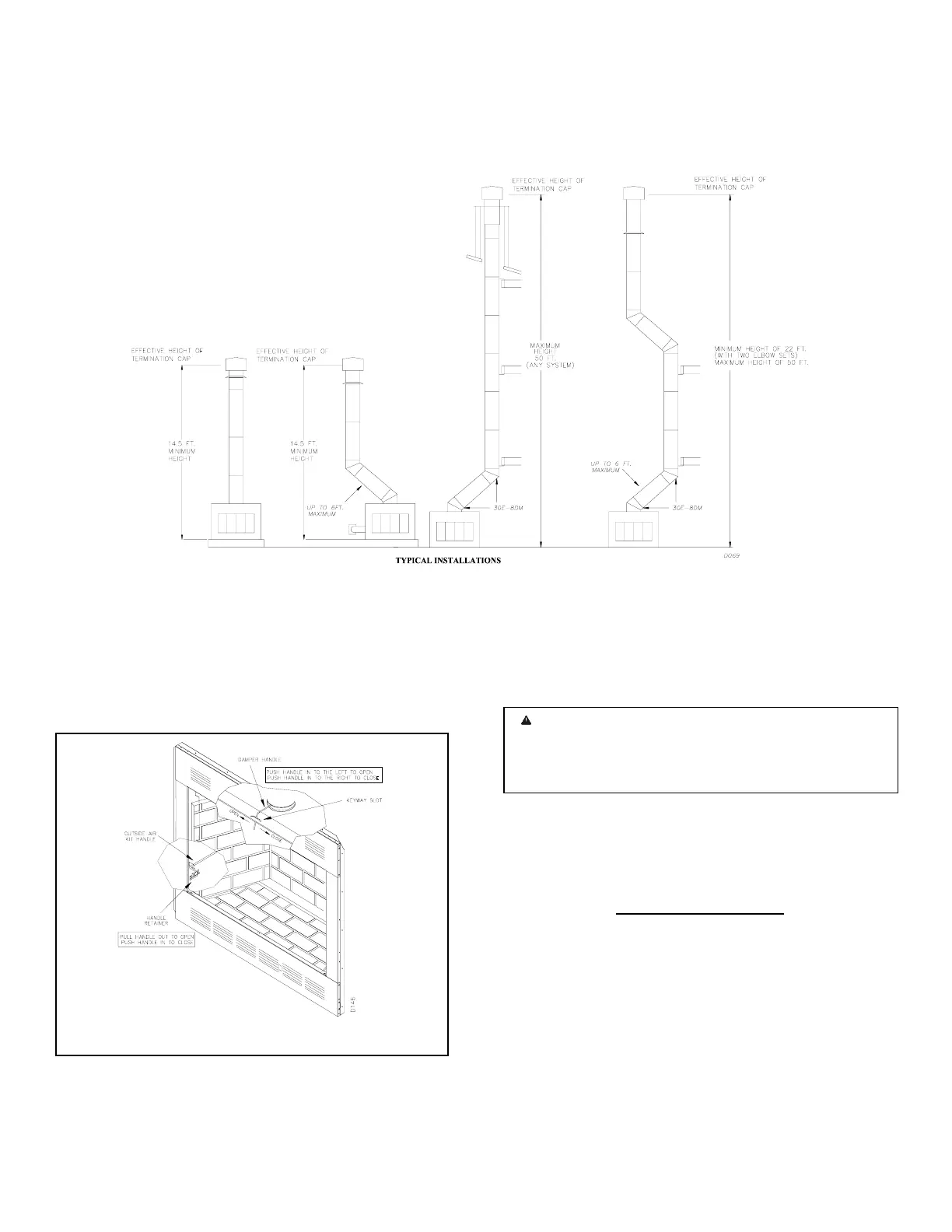

Figure 23 DAMPER AND AIR KIT HANDLE
