CONNECTING PROFLAME COMPONENTS
1. Remove wire harness from kit. Plug white connector to connection on
rear of receiver (see diagram below).
2. Connect black connector from harness to black connector from stepper
motor.
3. Green and white wires of harness are labeled TPTH and TH to indicate the
proper connection. Connect white wire labeled TPTH to the TPTH screw
terminal. Connect green wire labeled TH to the TH screw terminal.
COMPLETING INSTALLATION
LMFP replace owners: Remote kit installation complete. Follow instructions
provided with the remote for programing and proper remote operation.
LDL log set owners: Remote kit installation is complete. Logs should be
placed as specied in the log set installation instructions. Consult your owner's
manual provided with your logset for proper positioning. Failure to properly
position logs may result in sooting or property damage.
Owner's manuals are located online at www.desatech.com. Select gas logs
and locate your model number from the pull down list.
Stepper
Motor

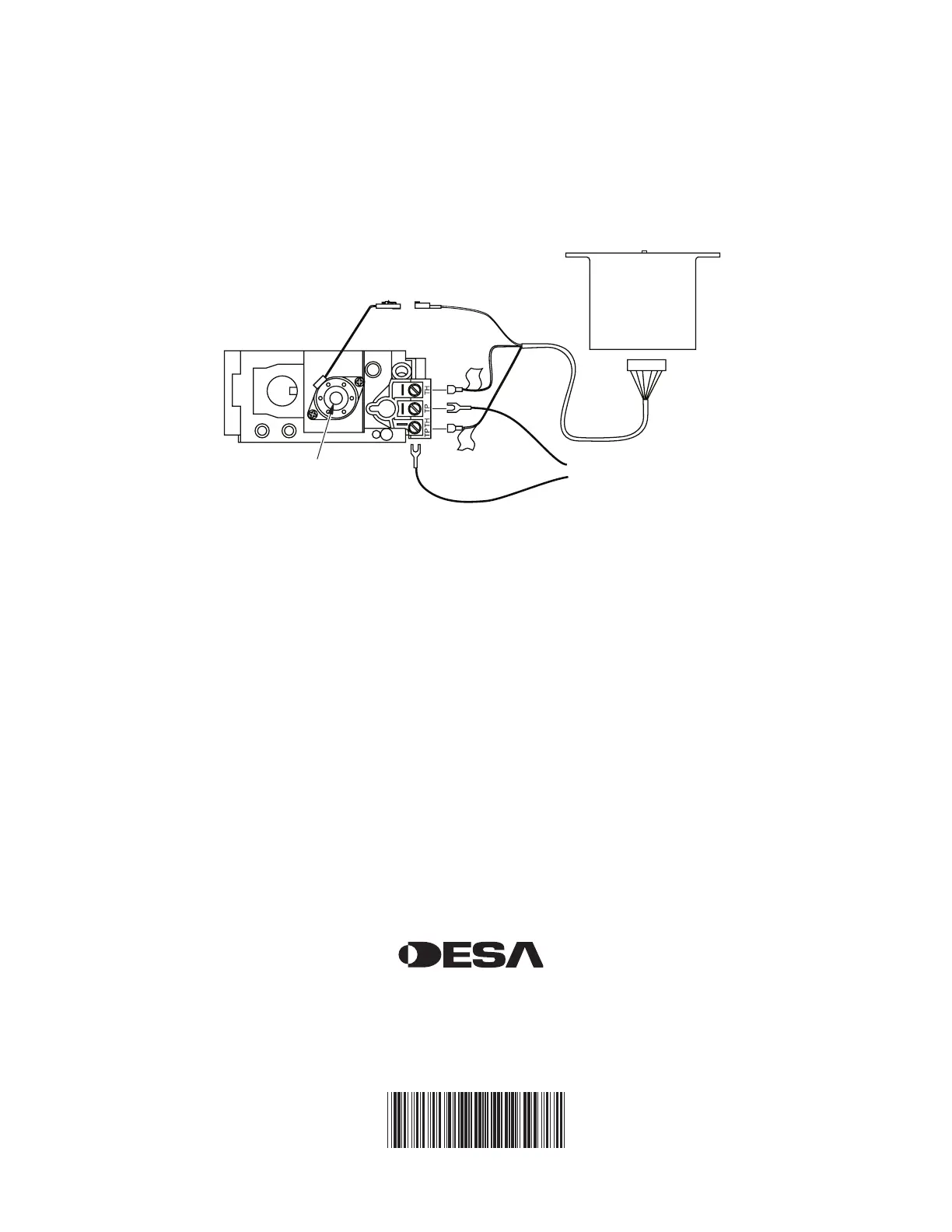

Figure 5 - Wiring Diagram
Black Connectors
Receiver
To Thermopile
on ODS Pilot
White
Red
White
Connector
Front
Green
White
