PORTABLE FORCED AIR HEATER
60,000 Btu/Hr H.S.I. Series
Blue
Photocell
Power Plug
120V/60Hz
IGNITOR
Ignitor
Blue
White
Red
Gray
Gray
Green
Motor
White
Black
AC NEUTRAL (L2)
PHOTOCELL
PHOTOCELL
MOTOR RETURN
MOTOR MAIN
120V (L1)
IGNITOR
Ignition Control
Assembly
Green
104040

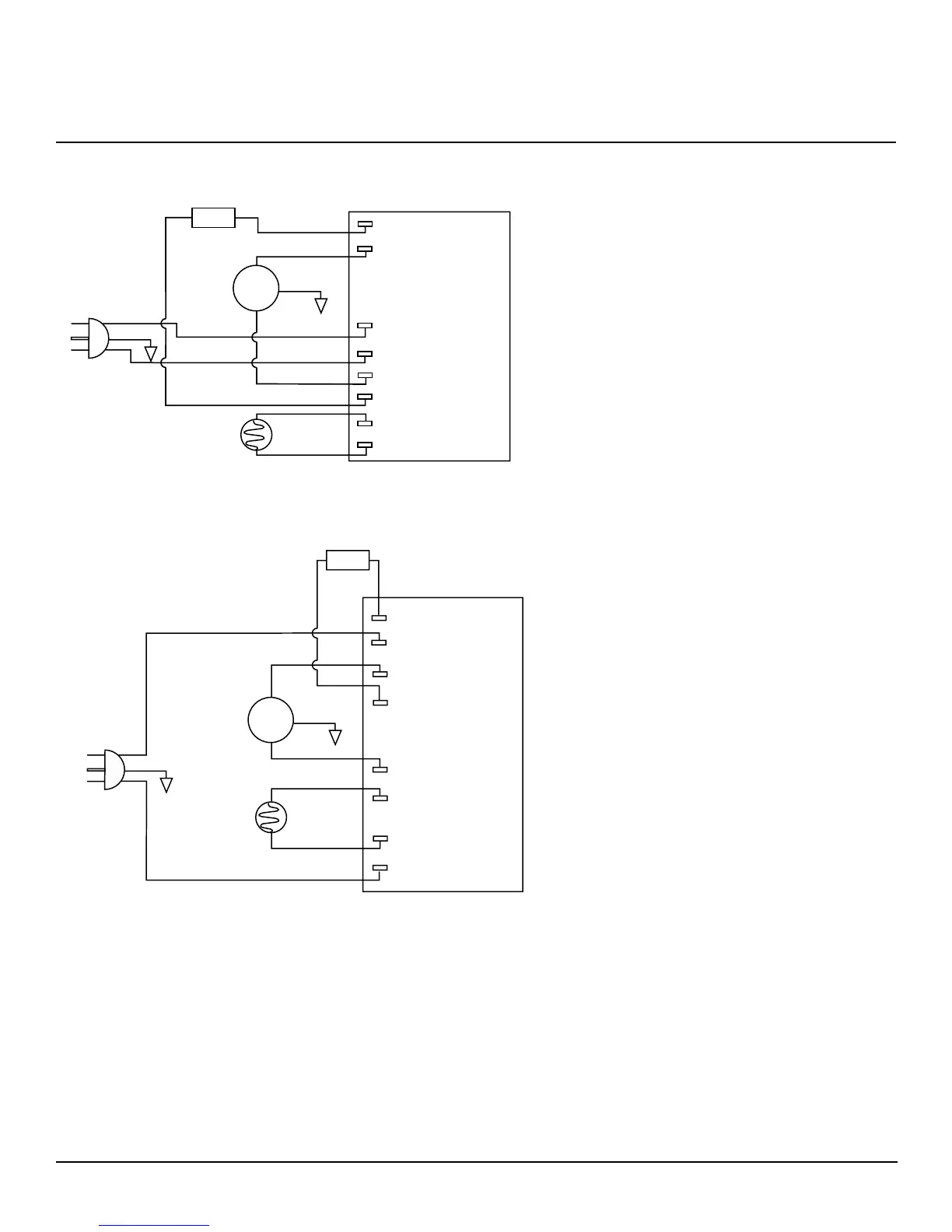

Figure 17 - Wiring Diagram for Heaters Using 104040-02 Ignition Control Assembly
WIRING DIAGRAMS
Blue
Photocell
Power Plug
120V/60Hz
IGNITOR
Ignitor
Blue
White
Red
Gray
Gray
Green
Motor
White
Black
L2 AC NEUTRAL
PHOTOCELL
PHOTOCELL
MOTOR RETURN
MOTOR MAIN
L1 (120V)
IGNITOR
Ignition Control
Assembly
Green
PART# 102350
Figure 18 - Wiring Diagram for Heaters Using 102350-01 Ignition Control Assembly
