- 10 - For more information, visit www.desatech.com

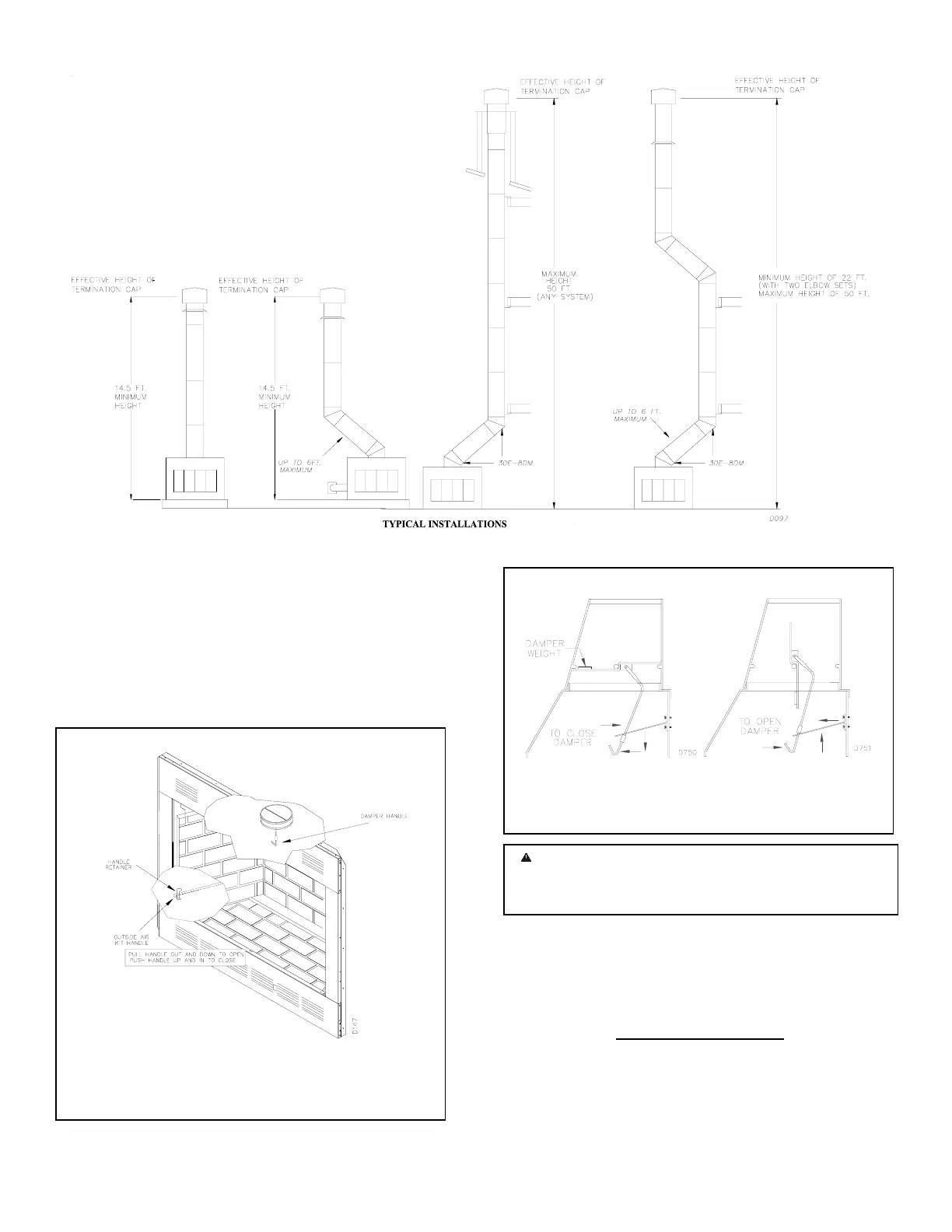

DAMPER OPERATION
The damper handle, which opens and closes the damper blade,
is located inside the firebox at the center towards the back wall
(see figure 23). Pushing the handle back in the keyway slot
will free the damper blade to automatically open. To close,
reach in and push the handle back into the keyhole slot then
pull down and forward to lock it in place (see figure 24).
FOR FURTHER OPERATING GUIDELINES,
INSTRUCTIONS AND WARRANTY INFORMATION,
PLEASE REFER TO YOUR HOMEOWNERS GUIDE
OR CONTACT YOUR AUTHORIZED DEALER.
TECHNICAL SERVICE
You may have questions about installation, operations, or
troubleshooting. If so, contact the Technical Service
Department at 1-866-672-6040. When calling, have the model
number of the fireplace ready.
WARNING: Risk of fire! Replace grate with DESA
model 107001-02 grate only. This grate has been designe
to keep the operation of your fireplace safe and efficient.
Figure 24 DAMPER ROD
Figure 23 OUTSIDE AIR AND DAMPER
HANDLE LOCATION
