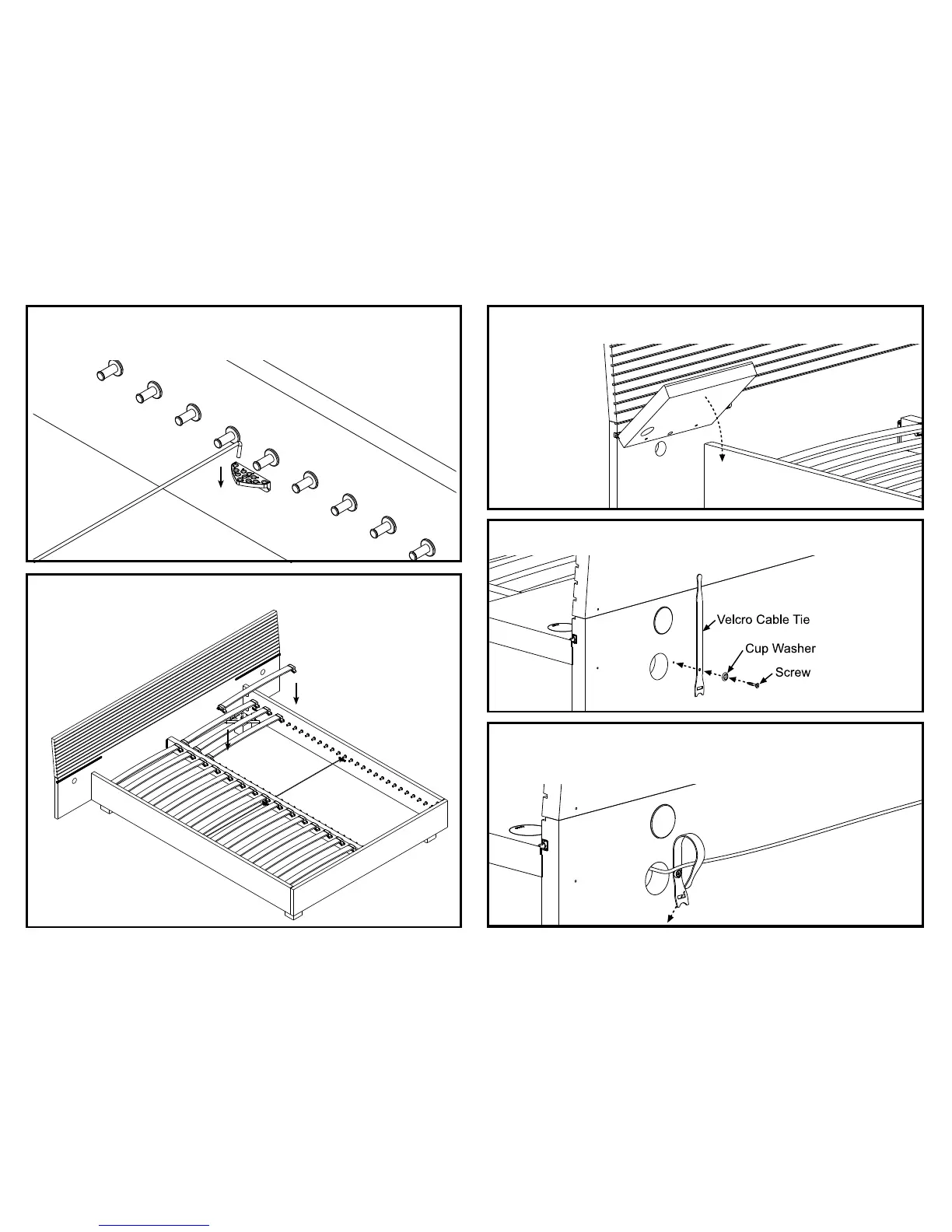

Insert cross brace into hole #1 on cross brace brackets attached to the centre and
side rails.
NOTE: Cross brace may flex upwards without mattress on bed.
Place Evo™ holders on ends of slat with slat curve upwards. Clip Evo™ holders and
slat on to Evo™ pins.
NOTE: Support 1 shown in diagram.
Angle shelf in upright position as shown. Insert shelf extrusion into headboard
extrusion and lower shelf into horizontal position.
Align hole in velcro cable tie with hole in the back of the headboard tie rail as shown.
Fasten using cup washer and screw.
If using electrical equipment, for example, a lamp, ipod, Bose system or digital alarm
clock, use velcro cable ties to keep your power cords tidy. To do third, place power
cords flat against the velcro cable tie. Wrap the narrow end of the velcro cable tie over
the power cords and through the slot as shown. Press together.
