DUO-60 v2.3 (01/2021) Page 9
3) Motor/Pump Block
Ø To ensure optimal production, the assembly of the high-pressure motor block must be
completed as low as possible in the boat, in a horizontal position and in an area
protected from water sprays.
Ø Use the 2 stainless steel legs under the 2 motors to fix the motor block. Leave a
few centimetres of wiggle room around it.
Ø Provide sufficient airflow for the ventilation of the motors.
Ø The connection of the prefilter outlet to the inlet of the pump on the suction-side
pump should be done using Tricoflex piping Ø 12mm (inside diameter) and 2
stainless steel collars at each connection.
Ø The connection of the pump's high-pressure head to the membrane inlet (red mark)
should be done using a high-pressure hose that is cut to size (follow closely the
assembly instructions in Appendix A2).
Ø Put a little liquid Loctite or threadlock on the male and female cones before each
connection.

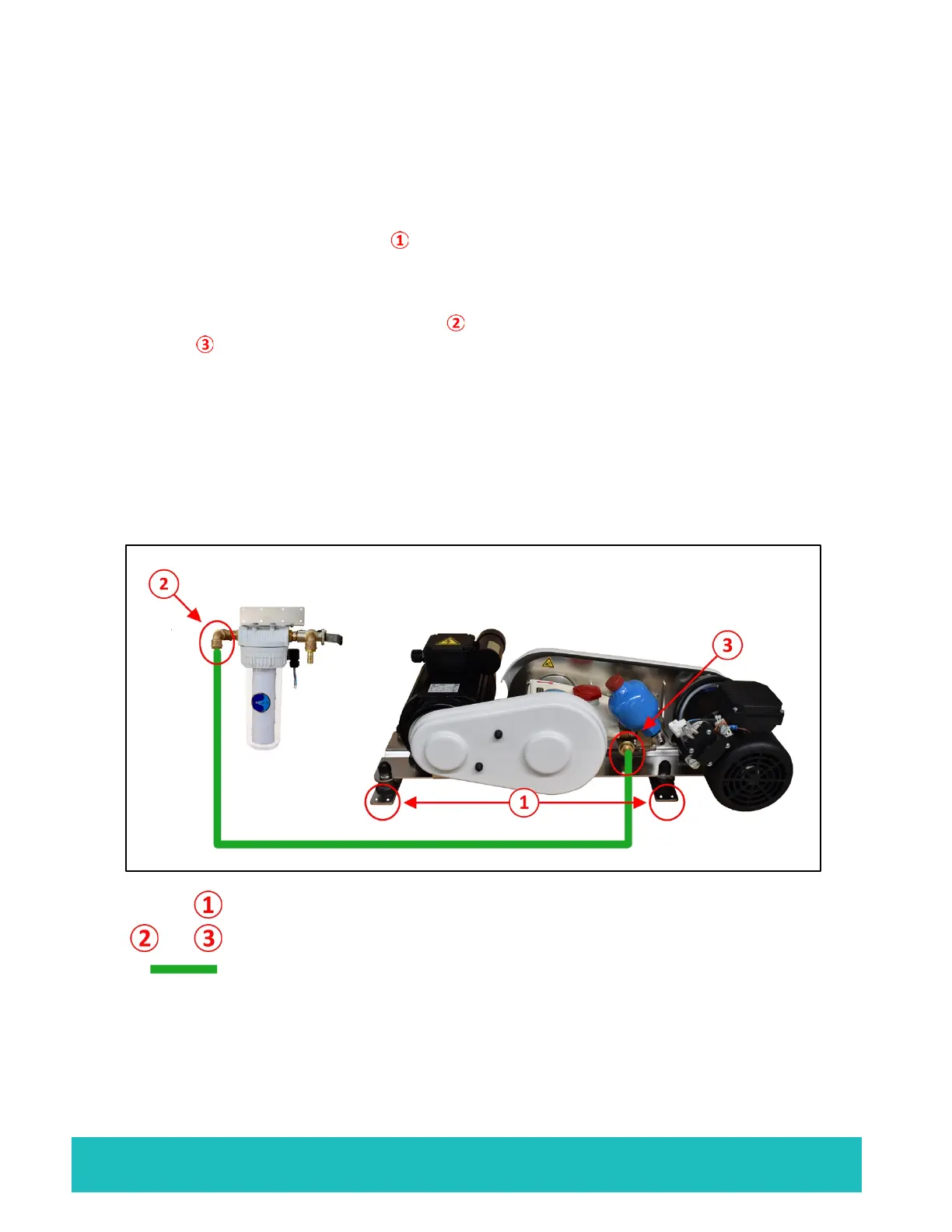

: Stainless steel legs for fixing the motor/pump block
and : Connect the prefilter outlet to the pump intake
: Tricoflex piping Ø 12mm (inside diameter) for the water system
