Detex AO19 - Module Description and Connector Pinouts; ISP; Synchronization Connector J1

AO19 Low Energy Automatic Door Operator Module Description / Connector Pinouts

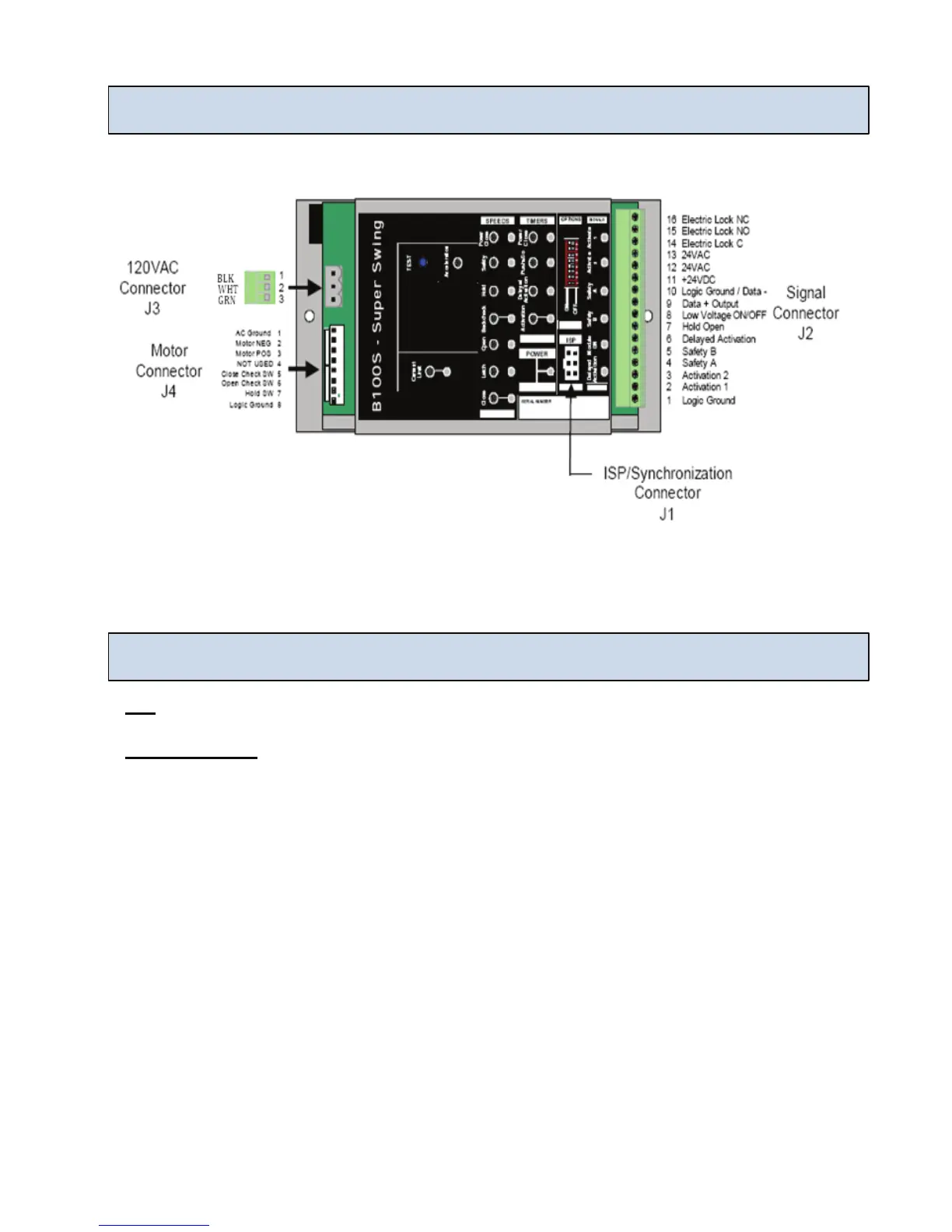

ISP / Synchronization Connector J 1
ISP
– (In System Programmer ) FACTORY USE ONLY
Synchronization
– This connector is used to synchronize two modules together (For Dual
door operator ). Synchronization cable , part number 104785. When the synchronization
cable is used , the activation switch (es) can be wired to only one module . All signals, except
for the “Delayed Activation” , are shared between the two modules via the synchronization
cable. When the “Delayed Activation Timer” expires , an activati
on signal is sent to mate
control.
Note: Using the synchronization cable will not synchronize the door speeds . The speeds
are kept separately .
