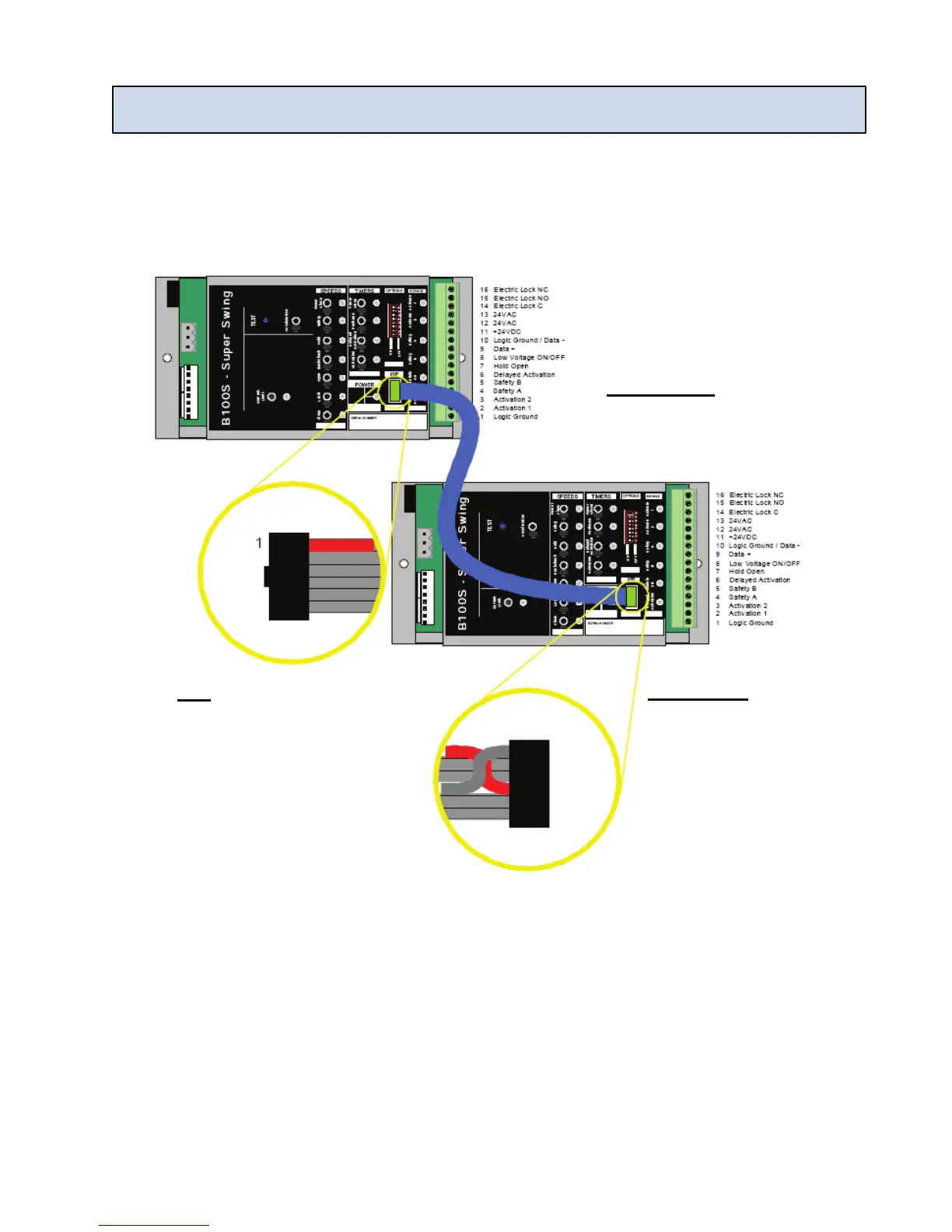

Dual Door Operator Sync Cable P /N 104785
For dual door operator, plug Sync Cable P/N 104785 as shown below. When using the Sync
cable, only one control maybe wired to the switches. All signals are shared between the two
controls using the sync cable, except for the “Delayed Activation” input. When the “Delayed
Activation Timer” expires, an activation signal is sent to the mate control
Sensor power can be supplied by both controls for a total of 600mA.
Master Controller
In dual/twin mode, set the
“Activation timer” and “Push & Go
timer” trimmers to the value needed .
Slave Controller
Important :
In dual/twin mode, set the
“Activation timer” and “Push & Go
timer” trimmers to the maximum
value (Fully clockwise) for the
slave controller .
Note:
The Sync cable, P/N 104785 , has two
wires switched at one end of the cable .
Electric lock for twin doors
For one controller to control the electric lock (s), wire the electric lock(s) to one controller. Set the option #3
to “ON” for that controller only . Wire the activation signal(s) to the controller that is wired to the electric
lock.
For two controllers to control the electric locks (to keep the el
ectric locks independent), wire the first lock to
the first controller, the second electric lock to the second controller . Set the option # 3 to “ON” on both
controllers. Wire J2 pin 2 (Activation 1) of the first controller to J 2 pin 2 (Activation 1) of the second
controller.
9
