21

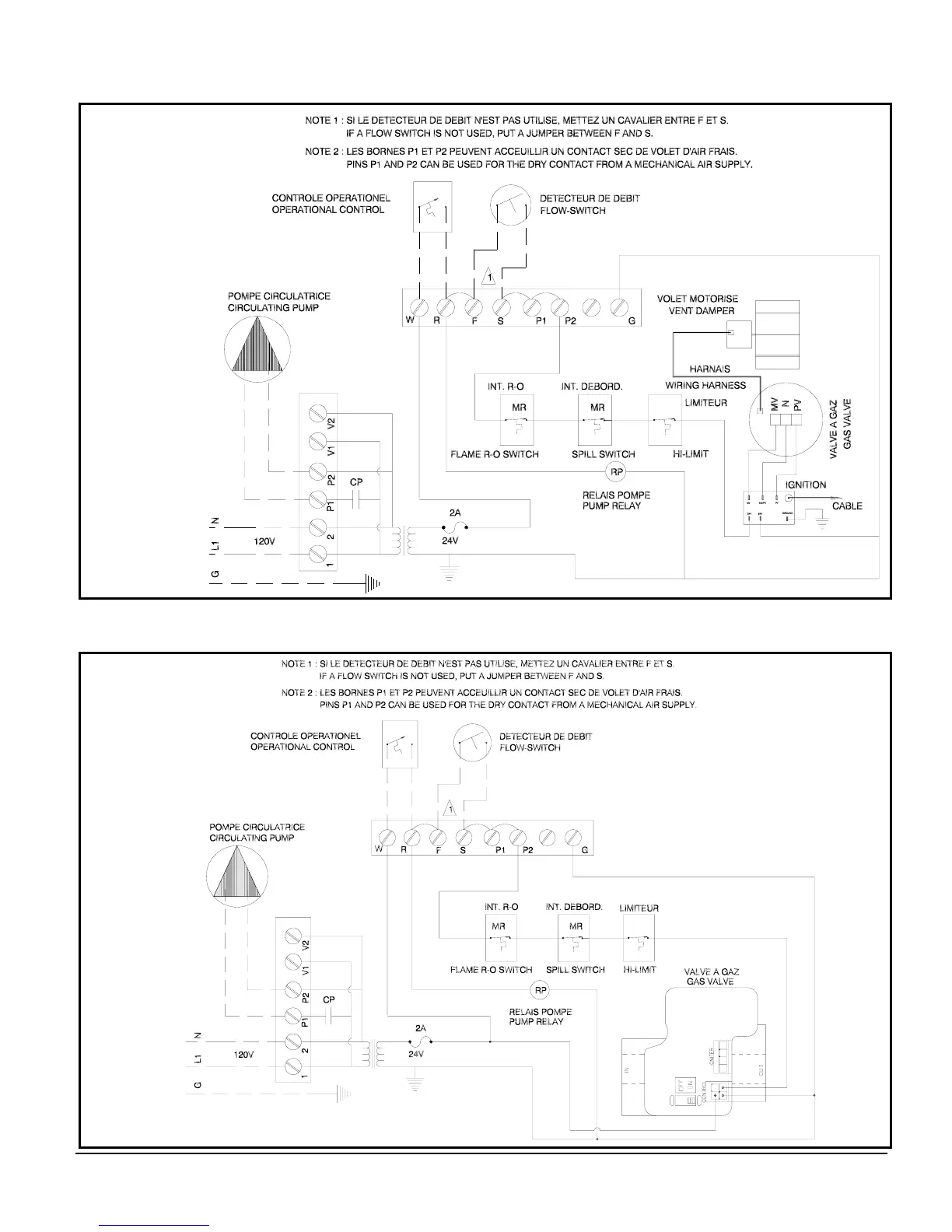

FIGURE 4.5
Wiring diagram, intermittent electronic pilot (HON) with motorized damper
FIGURE 4.6
Wiring diagram, intermittent hot surface ignition pilot - HON
DNS-0285 Rev.A
DNS-0286 Rev B
