25
FIGURE 4.13

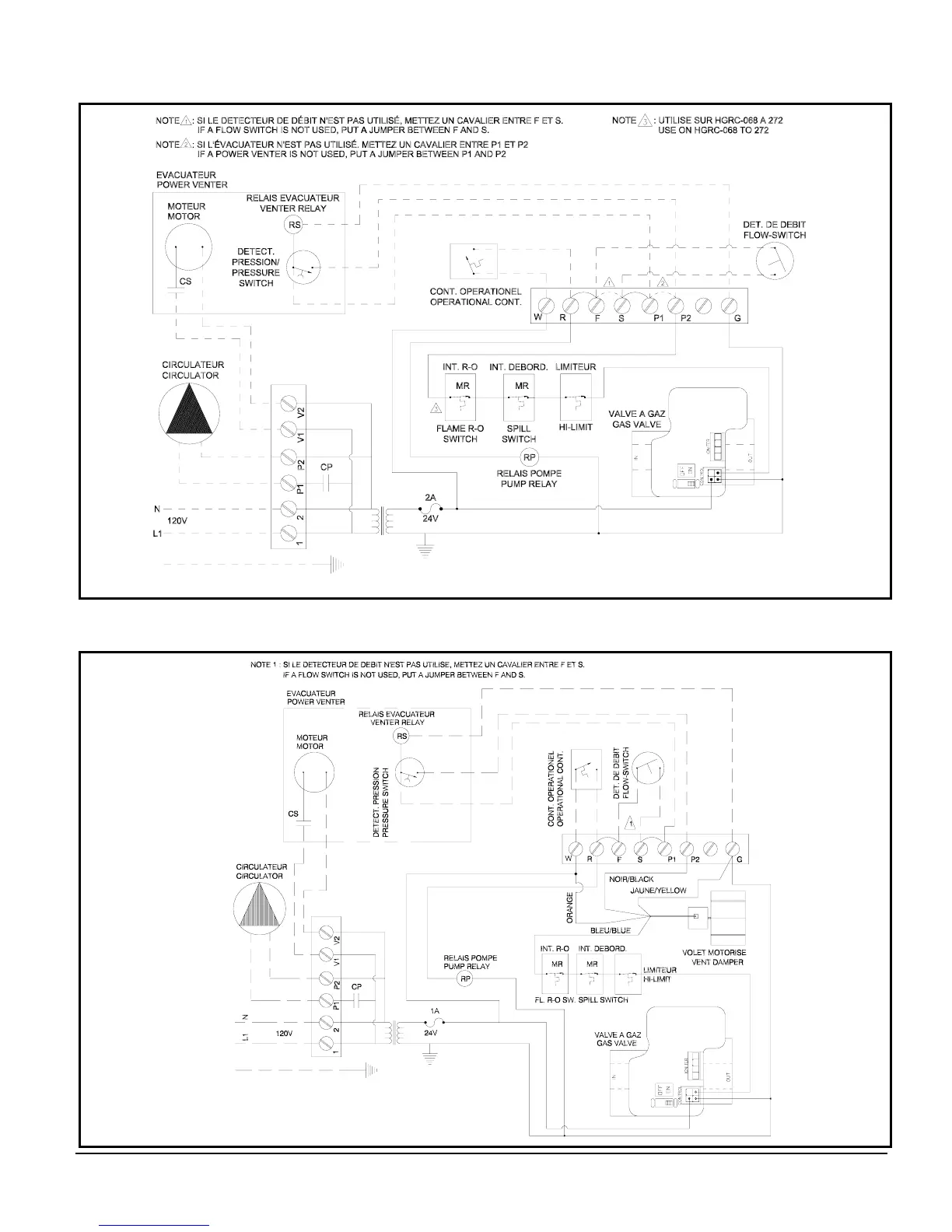

Wiring diagram, intermittent hot surface pilot with side wall venting
FIGURE 4.14
Wiring diagram, intermittent hot surface pilot - side wall venting - motorized damper
X00165 Rev. C
DNS-0294 Rev.B
