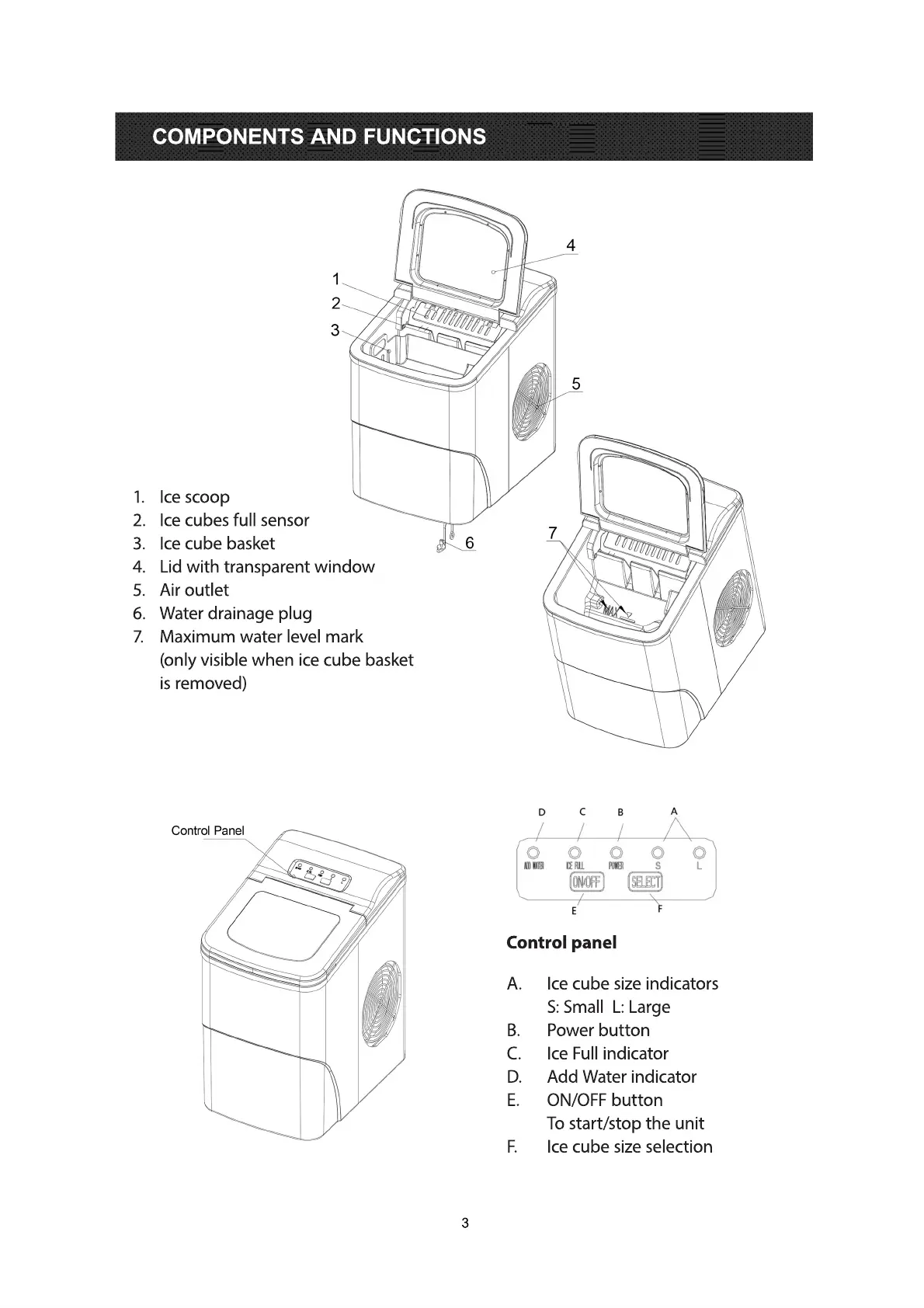

DEVANTI IM-ZB-12B-RD - C O Mp O N E N T S a N D F U N C T I O N S

1. Ice scoop
2. Ice cubes full sensor
3. Ice cube basket
4. Lid with transparent window
5. Air outlet
6. Water drainage plug
77. Maximum water level mark
(only visible when ice cube basket
is removed)
3
COMPONENTS AND FUNCTIONS
A. Ice cube size indicators
S: Small L: Large
B. Power button
C. Ice Full indicator
D. Add Water indicator
E. ON/OFF button
To start/stop the unit
F. Ice cube size selection
Control panel
