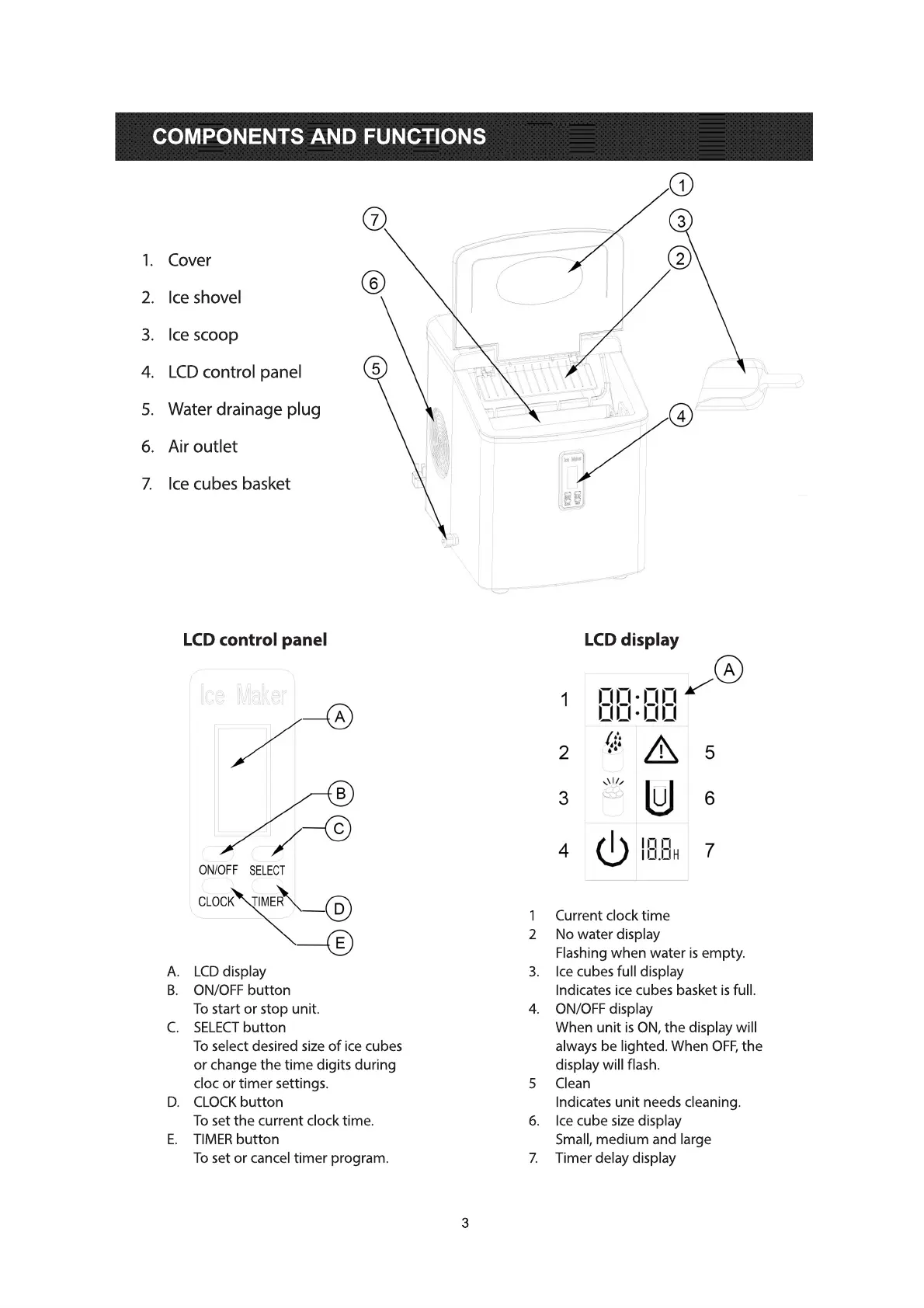

COMPONENTS AND FUNCTIONS
1. Cover
2. Ice shovel
3. Ice scoop
4. LCD control panel
5. Water drainage plug
6. Air outlet
77. Ice cubes basket
1 Current clock time
2 No water display
Flashing when water is empty.
3. Ice cubes full display
Indicates ice cubes basket is full.
4. ON/OFF display
When unit is ON, the display will
always be lighted. When OFF, the
display will flash.
5 Clean
Indicates unit needs cleaning.
6. Ice cube size display
Small, medium and large
77. Timer delay display
A. LCD display
B. ON/OFF button
To start or stop unit.
C. SELECT button
To select desired size of ice cubes
or change the time digits during
cloc or timer settings.
D. CLOCK button
To set the current clock time.
E. TIMER button
To set or cancel timer program.
LCD control panel LCD display
